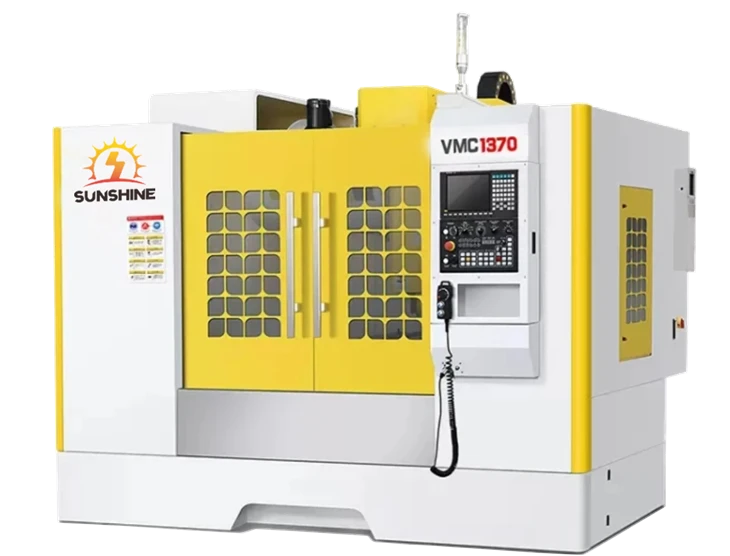

High Precision CNC Milling Machine

High accuracy

High precision CNC milling machines offer high levels of accuracy and precision in machining tasks. Computer-controlled machines can ensure accurate and repeatable production of complex parts.

Cost-effective production

CNC milling machines are cost-effective in the long run, especially when producing small batches or customised parts. This is because they require minimal labour and offer accuracy and precision, thereby reducing material wastage.

Improved efficiency

The CNC milling machine has the ability to run various operations simultaneously, reducing production time. The machines can eliminate the need for manual adjustments for each part, thus improving efficiency levels.

Wide range of applications

High precision CNC milling machines can be used in various industries including aerospace, automotive, medical, and electronics, among others. They can produce complex geometries, which are difficult or impossible to make with conventional machines.

Increased flexibility

The flexibility of CNC milling machines is an added advantage. The same machine can be used to manufacture different parts with minimal setup time. This increases production output and contributes to reduced lead times.

High productivity

CNC milling machines are equipped to run for long hours or even overnight, while requiring minimal supervision. This results in an increase in productivity and output levels.

Jewelry

CNC milling machines are used to produce customized pieces of jewelry with intricate designs and details that cannot be achieved using traditional manufacturing methods.

Automotive industry

CNC milling machines are used to produce complex parts with high accuracy for use in engines, drivetrains, and transmission systems in the automotive industry.

Medical industry

The medical industry requires precision parts that are made from high-quality materials. CNC milling machines are capable of producing intricate parts with complex geometries, which are needed in medical equipment and devices.

Electronics industry

CNC milling machines are used to produce intricate components, circuits, and other complex electronic parts that require extreme accuracy. Electronics manufacturers require precision milling to ensure that their parts are of the required standards.

Defense industry

Defense industry requires precision parts that are made from high-quality materials. CNC milling machines are capable of producing intricate parts that are needed in missile systems, military aircraft, and other defense applications.

Prototyping

CNC milling machines offer a quick way of prototyping parts and products, making it easier for companies to test and validate their designs before going into mass production.

Designing the model

The first step of CNC milling is designing the model using software like CAD (computer-aided design) software. This model is then saved in a file format that can be recognized by the CNC machine.

Programming the machine

The next step is programming the CNC milling machine. This is done by using software that generates a G-code program. This program contains instructions that control the machine's movements and specifies the operation to be performed on the material to produce the desired shape.

Setting up the machine

Once the G-code program is ready, the machine operator sets up the machine by loading the program and selecting the appropriate settings for the tool, material, and cutting parameters.

Loading the material

The material (e.g. metal, plastic, or wood) is then loaded onto the machine's worktable and secured in place with clamps or other fixtures.

Cutting the material

The CNC milling machine then cuts the material according to the G-code program. The cutting tool removes material from the workpiece, creating the desired shape. The cutting operation can be repeated several times to achieve the desired level of precision.

Finishing

Once the cutting operation is complete, the workpiece undergoes finishing processes such as polishing, deburring, and coating to improve its surface quality.

Frame

The frame of a high precision CNC milling machine is typically made of cast iron or steel and is designed to be rigid and sturdy to ensure maximum stability during high-speed milling operations.

Spindle

The spindle is the core component of the milling machine that rotates at high speeds to cut and shape the workpiece. High precision milling machines use high-quality spindles that are made of high-grade materials and are designed for maximum durability, accuracy, and performance.

Tool changer

A high precision CNC milling machine is equipped with an automatic tool changer that allows for fast and efficient tool changes to minimize downtime and increase productivity.

Linear guideways

Linear guideways are the tracks that guide the movement of the machine's various axes. High precision milling machines feature precision linear guideways that are designed to provide smooth and accurate movement for the machine's cutting head.

Ball screws and servo motors

Ball screws and servo motors work together to drive the linear guideways and ensure precise movement of the machine's cutting head. High precision milling machines use high-quality ball screws and servo motors to ensure accuracy and repeatability.

Control system

The control system of a high precision CNC milling machine is the brains of the operation. It sends signals to the machine's axes, spindle, and tool changer to ensure accurate and efficient milling operations.

Workholding

Workholding devices are used to securely hold the workpiece in place during milling operations. High precision milling machines feature a variety of workholding options, including vices, clamps, and fixtures, that are designed for maximum accuracy and repeatability.
