CNC Lathe
What Is CNC Lathe
A CNC lathe is a machine tool used for shaping metal or other materials through the use of computer-controlled technology. It uses a spinning cutting tool to remove material from a rotating workpiece held in a chuck or collet. The CNC lathe is programmed to move the cutting tool along the axis of the rotating workpiece to create a precise, symmetrical shape. It is commonly used in manufacturing for creating parts with a high degree of accuracy and consistency.
Precision
CNC lathes are capable of producing highly precise parts with tolerances of up to 0.0001 inches. This level of precision ensures that parts are consistent and accurate, which in turn improves product quality.
Efficiency
CNC lathes can operate continuously 24/7, significantly increasing productivity and reducing lead times. Additionally, they can produce complex parts with minimal operator intervention.
Flexibility
CNC lathes can be programmed to produce a wide range of parts, from simple cylindrical shapes to more complex designs, such as thread profiles and contours. This flexibility allows manufacturers to produce a variety of parts with a single machine, reducing the need for multiple machines and setups.
Consistency
CNC lathes can produce parts that are identical in size, shape, and quality, reducing the risk of errors and inconsistencies.
Speed
CNC lathes are capable of working at high speeds, reducing the time required to produce a part. This speed also reduces the total cycle time, which means that parts can be produced faster and with greater efficiency.
Cost-effective
While the initial cost of a CNC lathe may be high, they are cost-effective in the long term. The precision, efficiency, and flexibility of CNC lathes make them the ideal choice for high-volume production runs, reducing labor costs and increasing profitability over time.
Why Choose Us
High quality
We have 100% quality guarantee for our customers. We will be responsible for any quality issues.
Good service
Good after-sales service, handling customer problems and solving problems for customers.
Competitive price
Our products have a complete range, excellent quality and reasonable prices.self-reflection and self-revolution.
Fast delivery
Strong production capacity ensures on-time delivery and transportation to the destination as soon as possible.
Advanced equipment
The company has advanced large-scale testing equipment. After years of development, it has grown into a professional CNC vertical lathe manufacturer with leading technology and complete varieties.
Company business philosophy
People-oriented, quality first, sincere communication, honest management, and the spirit of continuous innovation, dare to challenge, customers with professional products and provide services.
CNC Vertical lathe
CNC vertical lathe is a high-precision, high-efficiency, multi-functional machining equipment that can process various metal and non-metal workpieces to meet the processing needs of precision parts in different industries. The spindle of CNC vertical lathe is perpendicular to the horizontal plane, which is suitable for processing large and complex parts with large radial dimensions and relatively small axial dimensions. CNC vertical lathe can process various types of workpieces and can process metal workpieces of various shapes, such as shafts, sleeves, gears, threads and other precision parts. CNC vertical lathes are widely used in processing shafts, discs, shells and other parts.

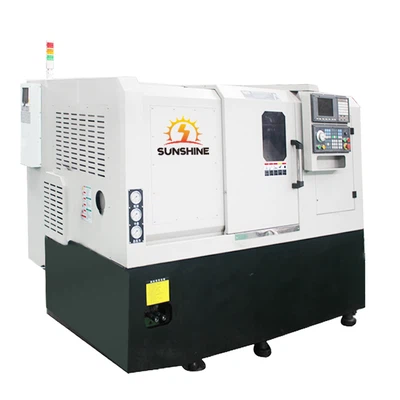

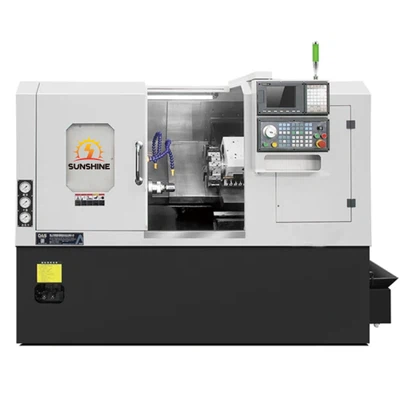

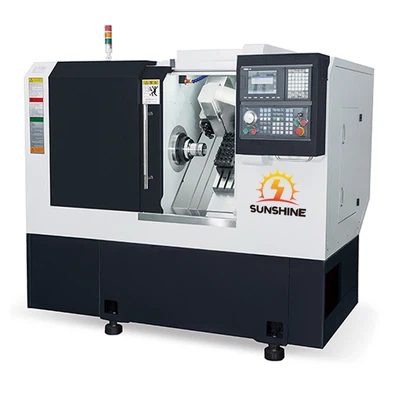

CNC Inclined lathe
CNC inclined lathe is an advanced CNC machine tool equipment and an indispensable high-precision, automated processing tool in modern manufacturing.
CNC inclined lathe combines CNC technology with inclined bed design, which can complete complex processing tasks such as turning, milling, boring, etc., and accurately control the angle and position of the workpiece to achieve a variety of processing methods. CNC inclined lathes are widely used in many industries, especially those fields with high requirements for processing accuracy and efficiency, such as aviation, aerospace, energy, chemical industry, automation, etc.
Application of CNC lathes
Aerospace industry
CNC lathes are used to manufacture components for aircraft engines, landing gears, and other aerospace parts.
Automotive industry
CNC lathes are used for manufacturing precision parts such as crankshafts, camshafts, and other engine components.
Defense industry
CNC lathes are used for manufacturing critical components for military vehicles, weapons, and other defense applications.
Industrial machinery
CNC lathes are used in the production of metal cutting tools, gears, and other industrial machinery components.
Medical industry
CNC lathes are used for manufacturing medical devices such as surgical instruments, dental implants and custom orthopedic implants.
Electronics industry
CNC lathes are used for manufacturing precision parts for electronic equipment such as semiconductors, connectors, and other electronic components.
Heavy machinery industry
CNC lathes are used for manufacturing large-sized components such as shafts, axles, and gears for construction equipment, and other heavy machinery.
Art and design
CNC lathes are used for creating artistic and decorative objects such as sculptures, ornaments, mining equipment,and custom furniture pieces.
Cast iron
This is a popular material for the base and frame of the lathe due to its high strength and vibration-damping properties.
Steel
Tool steel is used to make the cutting tools of the CNC lathe.
Aluminum
This is often used for the bed and other non-load bearing components due to its lightweight and corrosion-resistant properties.
Bronze
This material is commonly used for bearings and bushings due to its self-lubricating properties.
Polymer composites
These are increasingly used for machine components due to their high strength and low weight.
Ceramic
This high-strength material is commonly used for the tool holders and cutting inserts.
Carbon fiber
This material is used in high-end CNC lathes due to its high-strength, low-weight properties.
Design
A computer-aided design (CAD) software is used to create a 3D design of the part to be machined.
Preparation
The design is loaded into the CNC lathe's computer system, which translates the design into machine-readable code.
Set up
The machine operator loads the raw material into the lathe and sets up the necessary tools and fixtures, such as chucks and collets.
Programming
The operator inputs the CNC code into the machine's computer system, specifying the required cutting speeds, depths, and angles.
Execution
The machine begins the cutting process, automatically performing each step according to the programmed instructions until the part is completed.
Finishing
Depending on the application, the part may undergo additional processes such as polishing, plating, or painting before it can be used.
Bed
The bed is the foundation of a CNC lathe and provides a stable platform for the other components.
Headstock
The headstock is located at one end of the bed and houses the main spindle. It is responsible for holding and rotating the workpiece.
Tailstock
The tailstock is located at the opposite end of the bed and is used to support the other end of the workpiece or to hold special cutting tools.
Carriage
The carriage is located between the headstock and the tailstock and moves along the bed. It holds the cutting tools and feeds them into the workpiece.
Tool turret
The tool turret can hold multiple cutting tools and can be rotated to select the desired tool for a given operation.
Control panel
The control panel houses the CNC controller and other electronics that control the movement of the machine and the tools.
Spindle motor
The spindle motor rotates the main spindle and is responsible for generating the power required for cutting.
Coolant system
The coolant system is used to keep the cutting tools and the workpiece cool during operations, which prolongs the life of the tools and improves the quality of the finished part.
How to Maintain CNC lathes
Regular cleaning
Keep your CNC lathe clean and free of debris. Dust, metal chips, and dirt can build up and cause damage to the machine's delicate mechanical and electrical components. Regular cleaning will help ensure that your machine's components move smoothly and accurately.
Lubrication
Lubricate the moving parts of the CNC lathe with a high-quality oil or grease. Lubrication helps to prevent friction and wear of the machine components. It also helps to prevent rust and corrosion, which can cause damage to the CNC lathe over time.
Check alignment
Regularly inspect the alignment of the CNC lathe to ensure that it is operating within manufacturer specifications. Misalignment can cause parts to break, and reduce the accuracy of the machine.
Check coolant
Ensure that the coolant levels are maintained at the correct levels and the coolant used for the machine is recommended by the manufacturer. This will help to prevent damage to the machine's sensitive parts.
Service regularly
Seek professional help to service the CNC lathe on a regular basis. A skilled technician can inspect, diagnose, and repair any issues with the machine. This will keep it running smoothly and effectively, and minimize downtime.
Keep a maintenance log
Keep a maintenance log of all servicing and repairs made to your CNC lathe. This record will help to identify any recurring problems, and will help you to plan for future maintenance and repairs.
Our Factory
Since its establishment, Shandong Sunshine Machinery Co., Ltd. has always been committed to the research and development, manufacturing, sales and service of high-end CNC vertical lathe.
FAQ
Q: What is a CNC lathe?
Q: What is the difference between a manual lathe and a CNC lathe?
Q: How does a CNC lathe work?
Q: What materials can be machined on a CNC lathe?
Q: What is the maximum workpiece size that can be machined on a CNC lathe?
Q: How does a CNC lathe differ from a CNC mill?
Q: What are the advantages of using a CNC lathe?
Q: What is the programming language used for CNC lathes?
Q: Can a CNC lathe be operated by a beginner?
Q: What safety precautions should be taken when operating a CNC lathe?
Q: What is a CNC lathe chuck?
Q: What is the maximum cutting speed of a CNC lathe?
Q: What is the accuracy of a CNC lathe?
Q: What is the maintenance required for a CNC lathe?
Q: What is a lathe turret?
Q: What is a live tooling attachment on a CNC lathe?
Q: What is a sub-spindle on a CNC lathe?
Q: What is a bar feeder on a CNC lathe?
Q: What is a tailstock on a CNC lathe?
Q: What is a collet chuck on a CNC lathe?
