Fully Automatic High Precision Cutting CNC Inclined Lathe
Fully automatic high precision cutting CNC inclined lathe
Customization supported
Our CNC slant bed lathe are of various types and complete specifications, suitable for the processing needs of various industries
Maximum rotation diameter of the bed: 500/560/720mm
Maximum cutting diameter: 360/350/620mm
Maximum cutting length: 500/1000/1500
Main motor power: 11-15/30-37KW
Spindle hole diameter: 65/80

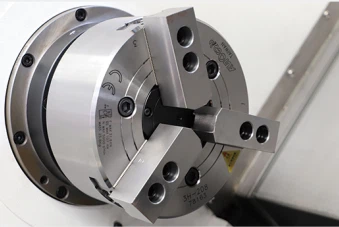

Hydraulic chuck: 8"/10"/15"/18"/21"
Tailstock travel: 450/900/1650
X/Z rapid movement: 30/30; 12/16
Performance advantages
1. The slant bed CNC lathe is suitable for turning various complex-shaped shafts, sleeves, and disc-type workpieces, such as rotating surfaces such as internal and external cylinders, cones, and various metric, imperial, module, and diametral pitch threads.
2. The slant bed CNC lathe adopts a direct-connected spindle to achieve high-speed operation, low noise, and improve the roughness of the processed surface.
3. The bed of the slant bed CNC lathe is tilted 45° to ensure that the chips flow smoothly to the optional chip conveyor, which is easy to use.
4. The slant bed CNC lathe is equipped with a CNC system. Siemens, Fanuc, Mitsubishi, KND, HNC and other CNC systems can be selected according to customer needs. The stable control unit ensures that the machine tool is more stable.
5. The pre-tightened double spindle nuts of the CNC slant bed lathe ensure zero backlash and good rigidity.
6. These characteristics of the CNC slant bed lathe are combined with a large lead screw to ensure minimal temperature influence and high dynamics.
7. The CNC slant bed lathe uses well-known brand parts such as Taiwan hydraulic tool holder, hydraulic chuck, ball screw, etc. to ensure the high performance of the whole machine.
8. The central automatic lubrication pump of the CNC slant bed lathe is equipped with multiple lubrication pipelines to protect the safety of all guide rails and screws, effectively extending the service life of the CNC slant bed lathe.
| Specification | unit | TCK4550 | TCK4556-500 | TCK4556-1000 | TCK4572-1500 |
| Swing over bed | mm | 500 | 560 | 560 | 720 |
| Max machining length | mm | 360 | 350 | 350 | 620 |
| Swing over slide | mm | 500 | 500 | 1000 | 1500 |
| Spindle motor power | KW | 11-15 | 11-15 | 30-37 | 30-37 |
| Diameter of spindle through hole | mm | 65 | 65 | 65 | 80 |
| Max spindle speed | rpm | 50-4500/177 | 50-4500/177 | 50-4500/177 | 50-3500/145 |
| Tilt angle | deg | 45 | 45 | 45 | 45 |
| Hydraulic chuck | - | 8"/10" | 8"/10" | 15"/18"/21" | 15"/18"/21" |
| X-axis travel | Kw | 200 | 200 | 200 | 420 |
| Z-axis travel | mm | 550 | 560 | 1050 | 1550 |
| Tailstock sleeve diameter / travel | mm | 450 | 450 | 900 | 1650 |
| Sleeve taper | MT | 5 | 5 | 6 | 6 |
| X/Z fast movement | m/min | 30/30 | 30/30 | 30/30 | 12/16 |
| Overall dimensions | mm | 2300*1600*1800 | 2300*1600*1800 | 5000*2400*2800 | 6000*2400*2800 |
| Machine weight (approx) | Kg | 3600 | 3600 | 4500 | 5000 |
Fully enclosed protection
The CNC slant bed lathe adopts a fully enclosed protective cover, with a sliding door on the left and a fixed control console in the protective cover on the right. It conforms to the ergonomic design and is more convenient to operate.
Bed
The CNC slant bed lathe lathe bed is cast with resin sand and gray cast iron. The casting structure is optimized by finite element analysis and the casting is treated by secondary aging, which has high rigidity and high stability.
Turret
The CNC slant bed lathe has a high reliability hydraulic turret, fast tool change speed and high stability.
Unique Features
The CNC slant bed lathe adopts induction quenching, with a hardness of >HRC55. The spindle of the CNC inclined bed lathe adopts high-precision and reliable bearings to provide rigidity and precision.
Application in industrial production
Aerospace
With its high precision, composite processing characteristics and processing capabilities for high-strength materials, the CNC tilting lathe meets the high requirements of the aerospace industry for processing equipment and provides important technical support for the development of the aerospace field.
Energy
In the energy field, CNC tilt lathe are mainly used to process parts of large equipment such as steam turbines and gas turbines. Its high efficiency, high precision and high degree of automation provide high-quality and efficient processing solutions for the energy industry.
Automobile
In the automobile field, CNC tilt lathe are widely used in the processing of automobile parts, such as crankshafts, camshafts, gears, etc. CNC tilt lathe improve the processing quality of automobile parts and reduce production costs.
Mold field
In the mold field, CNC tilt lathe are used to process various complex and high-precision molds. Its high-precision and high-stability processing performance provides reliable processing guarantees for the mold industry.
■ Each axis of the CNC slant bed lathe adopts imported high-precision linear guides, ball screws and precision bearings.
■ The CNC slant bed lathe adopts a synchronous guide sleeve structure to achieve high-speed and high-precision processing.
■ The CNC slant bed lathe with or without a guide sleeve can be flexibly switched to meet different processing requirements.
■ The key components of the CNC slant bed lathe adopt an air seal structure to prevent oil and slag, and improve service life and stability.
■ Each axis and tool mounting seat of the CNC slant bed lathe uses a high-torque motor, high rigidity, and high-strength slideway to meet the requirements of large cutting volume and high processing efficiency.
■ The CNC slant bed lathe has strong scalability, the number of tools can be matched with different processing requirements, and it is cost-effective.
 |
 |
 |
45-degree CNC slant bed lathe
High-precision Taiwan linear guide
Large chip removal, convenient, right chip removal or rear chip removal can be selected
Spindle unit has two types: heavy cutting type and high-speed type
Heavy cutting type is suitable for bearing and gear processing.
High-speed type is suitable for high-speed and high-precision processing.
Screw pre-stretching structure
Arrangement tool holder
Optional turret
