Automatic Chip Removal Of CNC Inclined Lathe

Send Inquiry

Product Introduction

CNC inclined lathe is an advanced mechanical equipment, mainly used for cutting in the metal processing industry. CNC inclined lathe adopts advanced CNC technology, which can achieve more precise cutting operations and more efficient production. CNC inclined lathe has the function of automatic chip removal, which can greatly improve production efficiency, reduce the labor intensity of workers, and reduce the number of chips, which has good protection for the production environment and staff.

CNC inclined lathe can be widely used in aerospace, railway, automobile, motorcycle, machinery manufacturing, petrochemical and other industries, and there is a wide demand in these fields. Because it can bring good economic benefits to enterprises, reduce production costs, improve product quality, and can also adapt to the processing of different workpiece materials.

In general, CNC inclined lathe, as an efficient, precise and stable cutting equipment, has become an essential tool in the modern manufacturing industry. Moreover, with the continuous development and improvement of technology, its application range and performance will be further improved, bringing enterprises a broader development space and market competitiveness.

Specification	unit	TCK4550	TCK4556-500	TCK4556-1000	TCK4572-1500
Swing over bed	mm	500	560	560	720
Max machining length	mm	360	350	350	620
Swing over slide	mm	500	500	1000	1500
Spindle motor power	KW	11-15	11-15	30-37	30-37
Diameter of spindle through hole	mm	65	65	65	80
Max spindle speed	rpm	50-4500/177	50-4500/177	50-4500/177	50-3500/145
Tilt angle	deg	45	45	45	45
Clamping system	-	8"/10"	8"/10"	15"/18"/21"	15"/18"/21"
X-axis travel	Kw	200	200	200	420
Z-axis travel	mm	550	560	1050	1550
Tailstock sleeve diameter / travel	mm	450	450	900	1650
Sleeve taper	MT	5	5	6	6
X/Z fast movement	m/min	30/30	30/30	30/30	12/16
Dimensions	mm	230016001800	230016001800	500024002800	600024002800
Machine weight (approx)	Kg	3600	3600	4500	5000

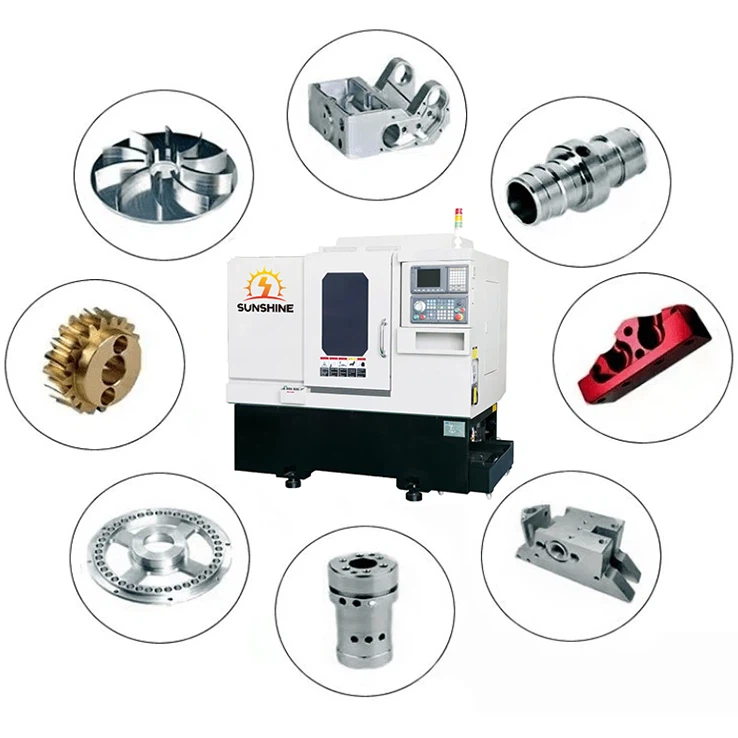

Application Scenario

Mold manufacturing, aerospace, automobile manufacturing, parts processing, rail transportation, ships, bearings,

injection molding and other fields.

Mould manufacturing

CNC inclined lathe is suitable for mould processing with complex shapes, such as automobile moulds, aerospace moulds, etc. Its high precision and stable performance ensure the manufacturing quality of the mould.

Parts processing

CNC inclined lathes can process parts of various materials (such as steel, non-ferrous metals, plastics, etc.), and are widely used in parts processing in the fields of production machinery and equipment, electronic products, instruments and meters, etc.

Aerospace field

Aerospace field: Since CNC inclined lathes have good processing capabilities for large parts and reasonable cutting force distribution, they are widely used in aircraft structure assembly.

Automobile manufacturing industry

Key components such as automobile engine cylinder blocks, crankcases, and transmission system gears require high-precision processing through CNC inclined lathes.
