Slant Bed Machine Tool
◆ The slant-bed machine tool features an integrated mechanical, electrical, and hydraulic system with a modular design, allowing individual modules to be manufactured, serviced, and replaced independently.
◆The machine is built on a one-piece 30° slant-bed casting that provides excellent rigidity, improves chip evacuation, and promotes stable cutting performance. Both the X- and Z-axes are equipped with 35 mm precision linear guideways featuring four-direction load support. This design enables high rapid-traverse speeds while maintaining a compact structure and reducing maintenance requirements.
◆The spindle incorporates an integrated dynamically balanced design, enabling higher spindle speeds and improved surface finish quality. Power is transmitted through a belt-driven system that minimizes transmission losses. This configuration helps control spindle temperature rise, reduces thermal distortion, and maintains machining accuracy during extended operation.
◆The standard configuration includes an 8-inch (Ø210 mm) Taiwanese-made three-jaw hydraulic chuck, providing flexible workholding for a wide range of machining applications.
◆An automatic centralized lubrication system delivers consistent lubrication through programmable lubrication cycles. Hydraulic cylinder pressure can be adjusted independently and is protected by integrated safety mechanisms.
◆To accommodate different machining requirements, the chip management system can be configured with a hinged-belt conveyor, scraper conveyor, or magnetic scraper conveyor.
Technical parameters
| Specification | unit | TCK4550 |
| Swing over bed | mm | 500 |
| Max machining length | mm | 360 |
| Swing over slide | mm | 500 |
| Spindle motor power | KW | 11-15 |
| Diameter of spindle through hole | mm | 65 |
| Max spindle speed | rpm | 50-4500/177 |
| Tilt angle | deg | 45 |
| Clamping system | - | 8"/10" |
| X-axis travel | mm | 200 |
| Z-axis travel | mm | 550 |
| Tailstock sleeve diameter / travel | mm | 450 |
| Sleeve taper | MT | 5 |
| X/Z fast movement | m/min | 30/30 |
| Dimensions | mm | 2300*1600*1800 |
| Machine weight (approx) | Kg | 3600 |
Applicable machining parts
Slant-bed CNC Machine Tools are equipped with multi-station or powered turrets, enabling the efficient machining of complex components, including cylindrical and tapered surfaces, arcs, threads, grooves, and worm shafts. They also support linear and circular interpolation functions, making them widely used for machining automotive parts, hydraulic components, precision machinery components, and mold parts.
Show details
CNC system
High-precision CNC system, easy to operate, optional Siemens and FANUC systems.
Hydraulic chuck
Large clamping range, fast clamping speed and high precision.
Hydraulic tool holder
The tool holder can be interchanged at various positions on the tool disc. It can be rotated left and right to change the tool at will, with fast tool change speed and stable and reliable operation.
Lathe tailstock
The center is installed inside the center sleeve of the tailstock body, which is beneficial for the machining of long shaft parts.
Our advantage
High-precision ball screw
Imported high-precision ball screw, high precision and accurate transmission
Manual scraping
Reduce surface roughness and ensure optimal equipment accuracy
Saddle
Using high-density cast iron material, the whole is cast in one step
Laser Detection
Reduce errors and achieve higher positioning accuracy
This slant-bed machine tool is primarily designed for machining shaft- and disc-type components. It is capable of turning a wide range of features, including threads, arcs, tapers, and internal and external cylindrical surfaces.
The machine is suitable for high-speed machining of both ferrous and non-ferrous metals, making it ideal for applications in the automotive, motorcycle, electronics, aerospace, and defense industries.
The machining area is equipped with a single-layer telescopic cover and independent guide rails, ensuring high reliability. The non-machining area features armored protection and a compact footprint.
The machine utilizes a flat sliding guideway and a high-rigidity manual locking base, providing reliable performance and stable operation.
The enlarged chip removal port arranged directly below the spindle is moreconvenient for the discharge and cleaning of cutting chips.

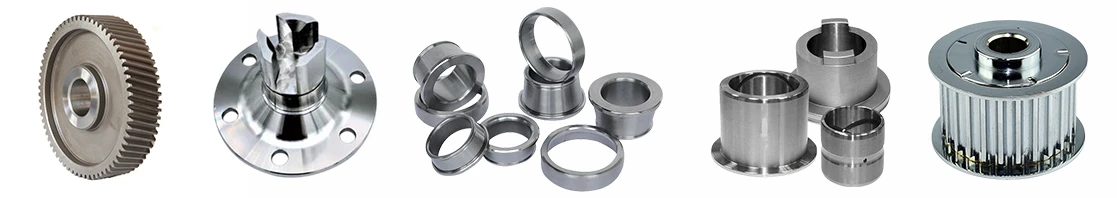

Product Application
Slant-bed CNC lathes are widely used in aerospace equipment, precision optical components, automotive parts, electronic connectors, high-end button accessories, small valves, watch parts, threaded fittings, and more. They are particularly effective for machining small parts, precision components, and non-ferrous metals.
Small hardware parts: steel, stainless steel, copper, and aluminum parts
Short shafts and disc-shaped parts: precision pins, bushings, spindles, and rings
Precision threads: high-grade threaded fittings, precision spindle caps, and threaded nuts
Customer visits
Certificate
Shandong Sunshine Machinery Co., Ltd. has developed year by year and improved its management. Our company has now become a comprehensive technology enterprise integrating scientific research, design, manufacturing and sales. At the same time, it integrates many years of manufacturing experience of many domestic and foreign machine tool manufacturers, absorbs advanced scientific research results of the same industry at home and abroad, and grows into a leading domestic professional manufacturer of CNC machine tools.
We have a group of high-quality CNC equipment production and manufacturing teams, specializing in the production and manufacturing of vertical machining centers, horizontal machining centers, five-axis machining centers, CNC vertical lathes, hydraulic presses, sawing machines and other mechanical equipment, which can be widely used in precision mold manufacturing, automobiles, electronics, communications, aviation, aerospace, military industry and other fields. The company's products are exported to many countries and regions such as Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa and other countries.
01
High Quality
High quality
Comprehensive factory strength supports all types of CNC lathes and has the ability to develop and manufacture CNC lathes
02
Advanced Equipment
Advanced equipment
Equipped with three-coordinate detection and laser detection equipment to reduce errors and improve accuracy
03
Professional Team
We are a manufacturing enterprise integrating development, research, manufacturing, sales and service, with many years of experience in CNC lathe manufacturing
04
Customized service
We have professional technicians to provide customized solutions to meet customer needs
FAQ
Q: What materials can this slant bed machine tool process?
A: It works with steel, stainless steel, aluminum, brass, copper, and other common metal materials.
Q: What's the accuracy level?
A: Typical machining tolerance is within ±0.01 mm, with high repeatability for mass production.
Q: Can you customize the machine?
A: Yes, we can adjust chuck size, turning length, tool turret, coolant system, and add automation options.
Q: How is packaging and shipping arranged?
A: Machines are packed in export plywood cases and shipped by sea or land; we handle safe loading and fixing.
