Metal Processing Inclined Lathe
Our metal processing inclined lathe is a heavy‑duty CNC turning machine built for real‑world metalworking. It uses a rigid slant‑bed structure to deliver stable, high‑precision machining for shafts, discs, sleeves, flanges, and complex rotational parts. Ideal for auto parts, hydraulic components, hardware, and general engineering, this machine combines strong cutting power, consistent accuracy, and easy operation to help you boost output and lower per‑part costs.
Technical parameters
| Specification | unit | TCK4550 | TCK4556-500 | TCK4556-1000 | TCK4572-1500 |
| Swing over bed | mm | 500 | 560 | 560 | 720 |
| Max machining length | mm | 360 | 350 | 350 | 620 |
| Swing over slide | mm | 500 | 500 | 1000 | 1500 |
| Spindle motor power | KW | 11-15 | 11-15 | 30-37 | 30-37 |
| Diameter of spindle through hole | mm | 65 | 65 | 65 | 80 |
| Max spindle speed | rpm | 50-4500/177 | 50-4500/177 | 50-4500/177 | 50-3500/145 |
| Tilt angle | deg | 45 | 45 | 45 | 45 |
| Clamping system | - | 8"/10" | 8"/10" | 15"/18"/21" | 15"/18"/21" |
| X-axis travel | Kw | 200 | 200 | 200 | 420 |
| Z-axis travel | mm | 550 | 560 | 1050 | 1550 |
| Tailstock sleeve diameter / travel | mm | 450 | 450 | 900 | 1650 |
| Sleeve taper | MT | 5 | 5 | 6 | 6 |
| X/Z fast movement | m/min | 30/30 | 30/30 | 30/30 | 12/16 |
| Dimensions | mm | 2300*1600*1800 | 2300*1600*1800 | 5000*2400*2800 | 6000*2400*2800 |
|
Machine weight (approx) |
Kg | 3600 | 3600 | 4500 | 5000 |

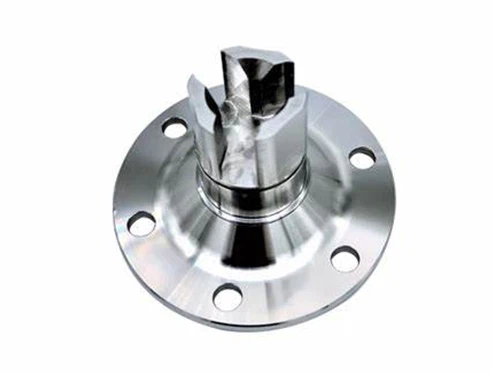

Applicable machining parts
Shaft parts, disc parts, sleeve parts, special-shaped parts, curved parts, etc.
Show details
CNC system
High-precision CNC system, optional
Chuck
Large clamping range and fast clamping speed
Servo turret
Optional hydraulic turret or row tool
Casting structure
Main components are cast from high-strength materials
Our advantage

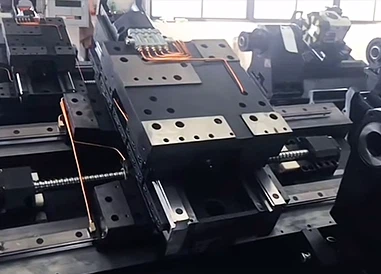

High-precision ball screw
Imported high-precision ball screw, high precision and accurate transmission

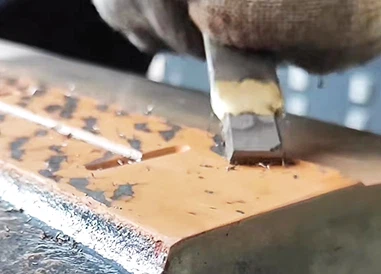

Manual scraping
Reduce surface roughness and ensure optimal equipment accuracy
Saddle
Using high-density cast iron material, the whole is cast in one step
Laser Detection
Reduce errors and achieve higher positioning accuracy
Customer visits
Certificate
Shandong Sunshine Machinery Co., Ltd. has developed year by year and improved its management. Our company has now become a comprehensive technology enterprise integrating scientific research, design, manufacturing and sales. At the same time, it integrates many years of manufacturing experience of many domestic and foreign machine tool manufacturers, absorbs advanced scientific research results of the same industry at home and abroad, and grows into a leading domestic professional manufacturer of CNC machine tools.
We have a group of high-quality CNC equipment production and manufacturing teams, specializing in the production and manufacturing of vertical machining centers, horizontal machining centers, five-axis machining centers, CNC vertical lathes, hydraulic presses, sawing machines and other mechanical equipment, which can be widely used in precision mold manufacturing, automobiles, electronics, communications, aviation, aerospace, military industry and other fields. The company's products are exported to many countries and regions such as Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa and other countries.
01
High Quality
Comprehensive factory strength supports all types of CNC lathes and has the ability to develop and manufacture CNC lathes
02
Advanced Equipment
Equipped with three-coordinate detection and laser detection equipment to reduce errors and improve accuracy
03
Professional Team
Integrating R&D, production, sales and service, it has many years of experience in the field of CNC lathe manufacturing.
04
Customized service
We have professional technicians to provide customized solutions to meet customer needs
FAQ
Q: What materials can this metal processing inclined lathe process?
A: It processes most common metals: carbon steel, stainless steel, aluminum, copper, brass, and various engineering alloys.
Q: What's the typical machining accuracy?
A: It normally holds tolerance within ±0.01 mm for most turning work, depending on tools and material.
Q: Can I get a custom model or configuration?
A: Yes, we offer custom spindle bore, chuck size, turret, cooling system, and other options to fit your needs.
Q: Is training included when I buy the machine?
A: We provide free online video training, operation manuals, and parameter guidance to help your team run it quickly.
Q: What kind of packaging do you use for export?
A: We use export‑grade fumigated wooden cases with full anti‑rust and anti‑shock protection.
