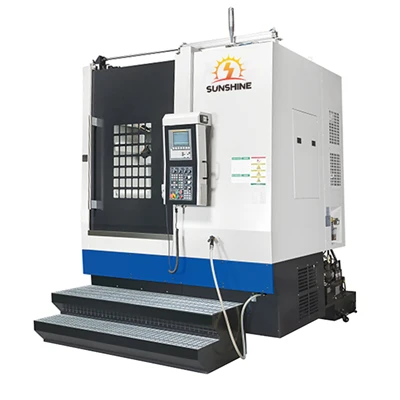

Small CNC Vertical Lathe
Our Small CNC Vertical Lathe is a compact, rigid, and easy-to-operate turning machine built for precision metalworking in small to medium workshops. It delivers stable performance for discs, sleeves, flanges, and auto parts, helping you improve efficiency while keeping floor space usage low.
Product Information
This small CNC vertical lathe matches most small-batch and precision machining projects very well. It handles steel, stainless steel, cast iron, and aluminum smoothly, with reliable accuracy and repeatability. Whether you run a job shop or produce standard components, this machine fits your production needs and budget.
Technical parameters
| Specification | unit | VTC50 | VTC60 | VTC70 | VTC80A | VTC100A | |
| Stroke | X axis | mm | 500 | 425 | 700 | 670 | 850 |
| Z axis | mm | 0-500 | 90-690 | 0-850 | 170-1020 | 0-1000 | |
| Processing capacity | Maximum rotation diameter | mm | φ650 | φ650 | φ800 | φ1000 | φ1200 |
| Maximum turning diameter | mm | φ500 | φ600 | φ700 | φ800 | φ1000 | |
| Maximum turning height | mm | 500 | 600 | 850 | 850 | 1000 | |
| Spindle | Spindle speed | rpm | 100-1000 | 100-1000 | 100-800 | 100-800 | 100-800 |
| Spindle motor power | Kw | 15 | 18.5 | 22 | 22 | 22 | |
| Spindle diameter | mm | φ130 | φ160 | φ160 | φ180 | φ200 | |
| Hydraulic chuck + tool Turret | Chuck model | Hydraulic chuck | |||||
| diameter | inch | 15" | 18" | 21" | 24" | 32" | |
| Turret station | Four workstations/ eight workstations |
Four workstations/ eight workstations |
Four workstations/ eight workstations |
Four workstations/ eight workstations 四工位/八公位 |
Four workstations/ eight workstations 四工位/八公位 |
||
| guide | X-axis rolling linear guide | 2 pieces, width 45mm | 2 pieces, width 45mm | 2 pieces, width 45mm | 2 pieces, width 45mm | 2 pieces, width 55mm | |
| Z axis rolling linear guide | 2 pieces, width 45mm | 2 pieces, width 45mm | 2 pieces, width 55mm | 2 pieces, width 55mm | 2 pieces, width 55mm | ||
| CNC system | Standard configuration | GSK | GSK | GSK | GSK | GSK | |
| Cooling system | cooling motor | W | 450+750 | 450+750 | 750+1.2kw | 750+1.2kw | 750+1.2kw |
| Pump output | m³/h | 4m³/h | 4m³/h | 4m³/h | 4m³/h | 4m³/h | |
| Accuracy | Repeatability | mm | ±0.003 | ±0.003 | ±0.003 | ±0.005 | ±0.005 |
| positioning accuracy | mm | ±0.06 | ±0.06 | ±0.06 | ±0.08 | ±0.08 | |
| smallest positioning unit | mm | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
| Weight and dimensions | Dimensions (approx.) | mm | 2100×2500×2750mm | 2200×2050×2910mm | 2400×2100×3200mm | 2400×2100×3600mm | 3100×2650×3700mm |
| Gross weight (approx.) | Kg | 5500 | 7500 | 8000 | 9000 | 13500 | |
Customer Feedback
"We've used this small CNC vertical lathe for 8 months, and it runs steadily with almost no downtime. The accuracy is consistent, and our operators learned it quickly. Great value for small workshops." - Manager, Mexico machining factory
"Delivery was on schedule, installation support was clear, and after-sales replies are fast. Very satisfied with the whole purchase experience." - Client, Poland
Company Strength & Service
We are a factory with many years of experience in CNC machine tool manufacturing and export. We hold CE and ISO certifications and fully support global exports and door-to-door delivery. Our team handles packaging, customs documentation, shipping, and local installation guidance, ensuring you easily receive your machine and get it running smoothly.
Pricing & Cooperation
MOQ
Contact us to learn more
Price
Negotiable based on configuration
Payment
T/T, L/C acceptable
Cooperation
Wholesale, distributor partnerships, and custom configurations are supported
Our Services
Full export packaging and global logistics support
01
Multilingual operation manual and video guidance
02
Online remote troubleshooting and training
03
Fast spare parts supply worldwide
04
Customization for chuck, turret, control system, and automation
05
FAQ
Q: Is this small CNC vertical lathe suitable for my small workshop?
A: Yes, its compact design saves space while providing strong rigidity and precision for daily machining.
Q: What materials can it process?
A: It works with steel, stainless steel, cast iron, aluminum, copper, and other common metal materials.
Q: What control system does it use?
A: Standard with GSK/FANUC/Siemens optional, easy to program and operate.
Q: Do you provide export and door-to-door delivery?
A: Yes, we handle full export procedures, shipping, and delivery to your designated address.
Q: Is installation training included?
A: We offer online video training and detailed manuals.
Q: Can we customize chuck size or turret stations?
A: Yes, we accept custom configurations to match your specific processing needs.
