CNC Vertical Lathe Machine
video

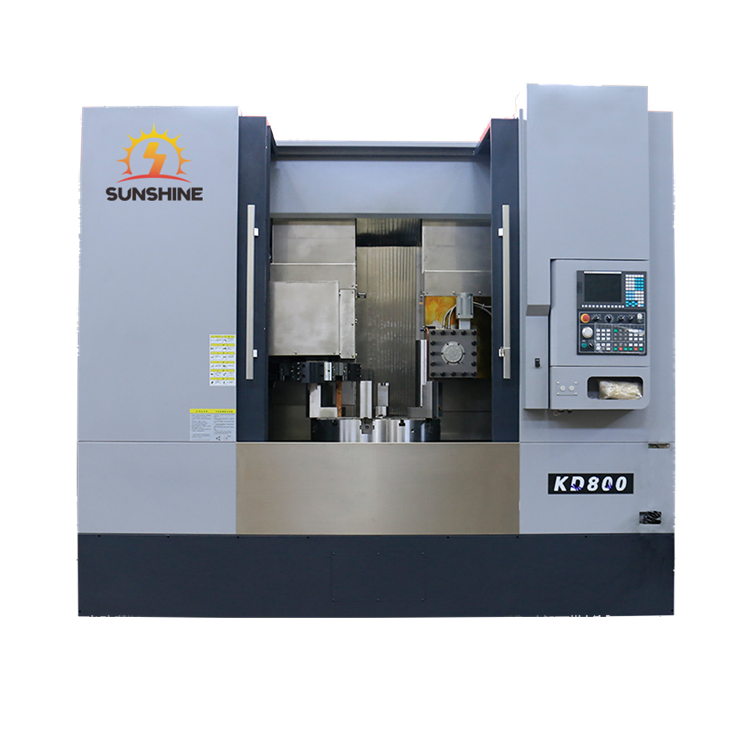

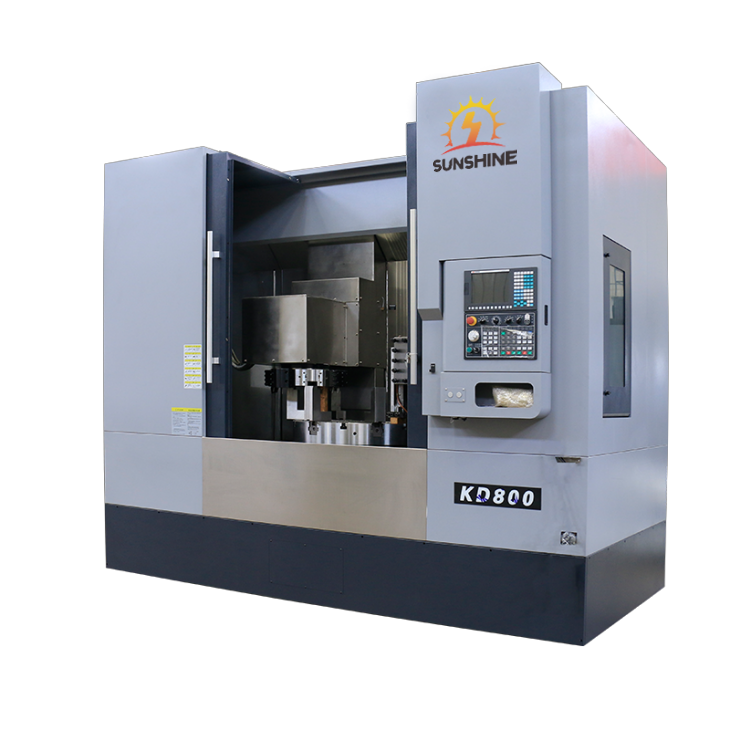

CNC Vertical Lathe Machine

Maximum swing diameter: Φ950 mm
Maximum turning diameter: Φ850 mm
Maximum turning height: 500 mm
Applications: Primarily used for machining large-diameter, disc-shaped, and heavy-duty rotating components, such as flanges and wheel hubs. It supports a variety of machining operations, including rough and finish turning, boring, grooving, threading, and chamfering. The machine is widely used in industries such as heavy equipment manufacturing, new energy, construction machinery, wind power, rail transportation, oil and gas equipment, and automotive manufacturing.
Send Inquiry
Product Introduction

Tired of inconsistent precision when turning large disc, ring and flange workpieces? This CNC Vertical Lathe Machine handles up to 850 mm turning diameter and 500 mm machining height. Its rigid build, hydraulic chuck and precision ball screws keep your parts accurate and cut rework, ideal for automotive and general precision machining.





Technical parameters





Specification

unit

KD800

Specification

unit

KD800

X axis

mm

450

Ball screw accuracy



Level C3

Z axis

mm

500

Lead screw size



x:φ50 z: φ50

Maximum swing diameter

mm

Φ950

X motor



23NM

Maximum turning diameter

mm

Φ850

Z motor



23NM

Spindle speed

rpm

50-300

Repeatability

mm

±0.02

Spindle motor power

Kw

22

positioning accuracy

mm

±0.04

Spindle diameter

mm

Φ180

smallest positioning unit

mm

0.001

Chuck model



hydraulic chuck

Dimensions (approx.)

mm

3000*2800*2800mm

Turret specifications



Turret center height 125mm

Gross weight (approx.)

t

12t

Turret station



8 workstations + 8 workstations (optional)





Product Advantages



1. Ideal for large-diameter workpieces

Struggling with oversized industrial parts? This CNC vertical lathe handles workpieces up to Φ850 mm in turning diameter and 500 mm in height, perfectly fitting your medium and large component machining needs.

2. Guaranteed stable machining precision

Fed up with inconsistent part dimensions? It offers ±0.04 mm positioning accuracy and ±0.02 mm repeatability, keeping your precision turning reliable and cutting rework.

3. Slash repeated setup time

Tired of time-consuming re-fixturing? Fitted with dual 8-station turrets, it finishes multiple operations in one clamping, boosting output and lowering manual work.

4.Effortless chip evacuation

Annoyed by chip buildup disrupting cuts? Its vertical design lets chips fall away naturally, avoiding accumulation on workpieces for steady cutting.



How Do You Choose The Right CNC Machine Configuration?



CNC System

CNC Machine System Selection



Concerned about incompatible controls? The lathe is standard with GSK, with Mitsubishi, Fanuc, Siemens, KND and HNC optional for your shop needs.



Chuck

CNC lathe machine chuck



Choose hydraulic chucks (15/18/24/32in) or manual types, with 3/4/6-jaw setups. Custom fixtures solve your unique tricky machining holding challenges.



Turret

CNC Lathe Turret



Hydraulic or servo turrets in vertical, horizontal & driven styles. 4/9/10/12 stations adapt flexibly to your diverse machining jobs.



Chip Conveyor

vertical cnc turning

This CNC Vertical Lathe Machine is fitted with a standard chain-plate chip conveyor. You can also select magnetic scraper or scraper-type chip conveyors to match your workpiece materials and machining needs - no more being stuck with a chip removal setup that doesn't fit your production.



 Chain-Plate Chip Conveyor:Resists jamming with long, coiled, bundled and blocky chips. Chain steel plates transfer swarf, compatible with steel, cast iron, copper, aluminum and stainless steel.



 Magnetic Scraper Chip Conveyor:Suitable for powdery, granular and short ferrous chips from steel and cast iron. Magnets attract chips while scrapers separate swarf from coolant.



 Scraper-Type Chip Conveyor:Handles short curled chips and fine filings. Chain scrapers push swarf for discharge. Ideal for steel and cast iron, also works for minor copper and aluminum chips.



Is It Right for Your Project?



vtl vertical turret lathe

If your workshop regularly handles turning workpieces up to 850 mm in diameter, you know how frustrating it is when equipment lets you down mid-batch.


You need consistent machining accuracy you can count on, solid build rigidity to stand up to heavy cutting loads, and steady performance that won't derail your production runs. This lathe checks those boxes.


It works with most mainstream CNC controllers and can be tailored around your actual production needs - whether you're working to tight tolerances, managing specific part sizes, or planning automation upgrades. It also fits seamlessly into your current production line, so you can build out a full machining solution without overhauling your whole setup.



Pricing & Cooperation





We offer factory-direct pricing for CNC Vertical Lathe Machines. Final pricing depends on the selected CNC system, chuck size, and optional accessories.
We support full-container orders, sample orders for evaluation, and long-term distributor or agency partnerships. Customized configurations and OEM services are also available based on specific project requirements.

Inquiry Now!Obtain the technical solution.



Packaging & Transportation





Your CNC vertical lathe will be carefully prepared for shipment: we apply anti-rust oil across the machine, wrap it tightly in stretch film and pack it inside a sturdy plywood crate, so it stays fully protected on its long overseas journey. Every part is firmly secured to cut down the chance of in-transit damage that can delay your production and cost you extra money.



You can choose either FOB or CIF terms to match your logistics plan. We are also flexible to work with your preferred freight forwarder, helping you lock in smooth, on-time delivery you can count on.

vertical turning lathe price



FAQ



Q: What's the max turning diameter and height?

A: Maximum turning diameter 850mm; max turning height depends on configuration, typically around 500mm.

Q: Which CNC systems can you install?

A: We support FANUC, SIEMENS, GSK, and other common systems as you request.

Q: Can you make custom modifications?

A: Yes, we can adjust chuck size, spindle power, coolant system, and add accessories.

Q: How is the machine packed for ocean shipping?

A: It is packed in a fumigated plywood case with anti‑rust and anti‑shock protection.

Q: How can I get a detailed quote?

A: Send us your workpiece size, material, tolerance requirements, and preferred CNC system for a formal quote.
