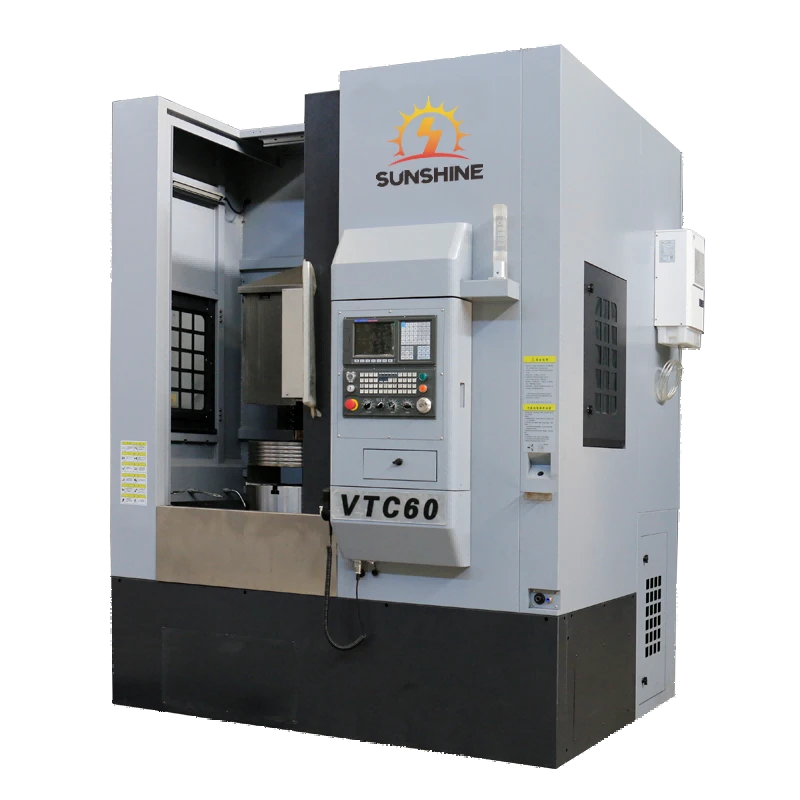

CNC Vertical Turning Lathe
video

CNC Vertical Turning Lathe

Maximum rotation diameter:φ650mm
Maximum turning diameter:φ600mm
Maximum turning height:600mm
It is particularly suitable for machining components such as brake drums, wheel hubs, brake discs, clutch pressure plates, and flywheel housings.
Send Inquiry
Product Introduction



Tired of difficult clamping and risky handling of large, heavy rotary parts on conventional horizontal lathes?


Our CNC vertical turning lathe adopts a vertical spindle structure for metal cutting, perfectly processing discs, rings, flanges, hubs and other rotational components. It supports external turning, internal turning, facing, grooving, drilling, boring and threading in a single setup, cutting extra fixturing work and lowering error risks.


A reliable all-rounder for automotive, construction machinery, rail transit, energy, wind power, shipbuilding and general machining production.

Contact Us!
View More Configurations

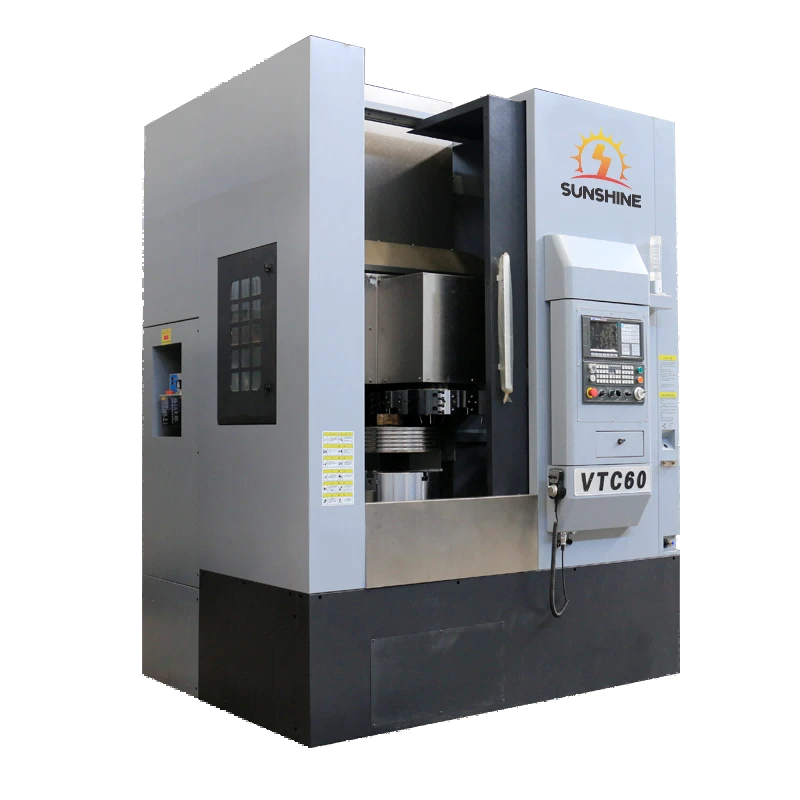

Large-Scale Machining Capability
Tackle medium and large disc & hub components effortlessly. It features a 650 mm maximum swing over bed, 600 mm max turning diameter and height. The 425 mm X-axis stroke and 90–690 mm Z-axis stroke deliver flexible working range to fit workpieces of different dimensions.

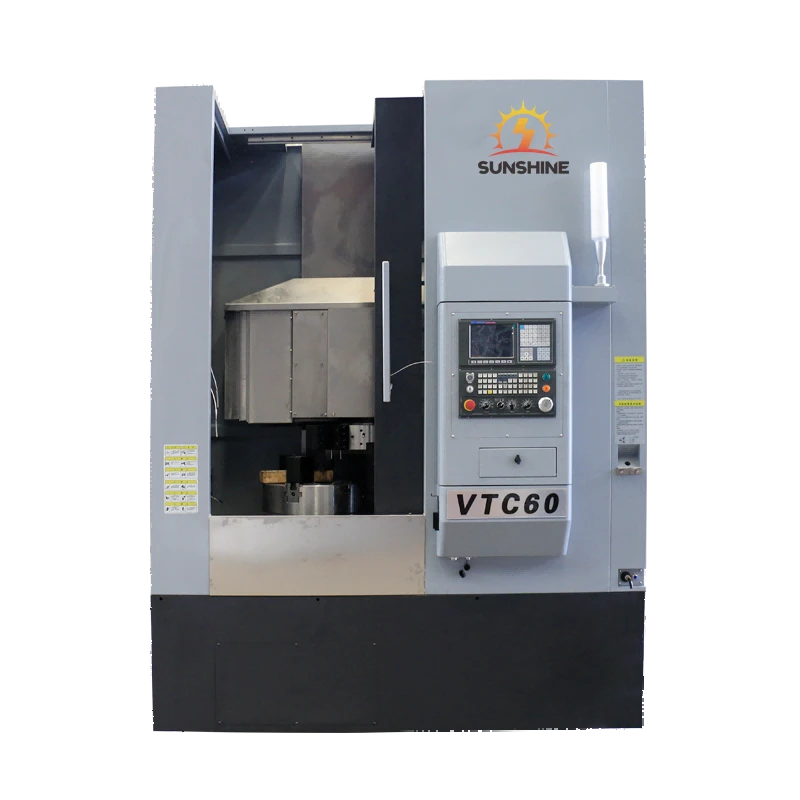

CNC Vertical Lathe with Large-Scale Travel

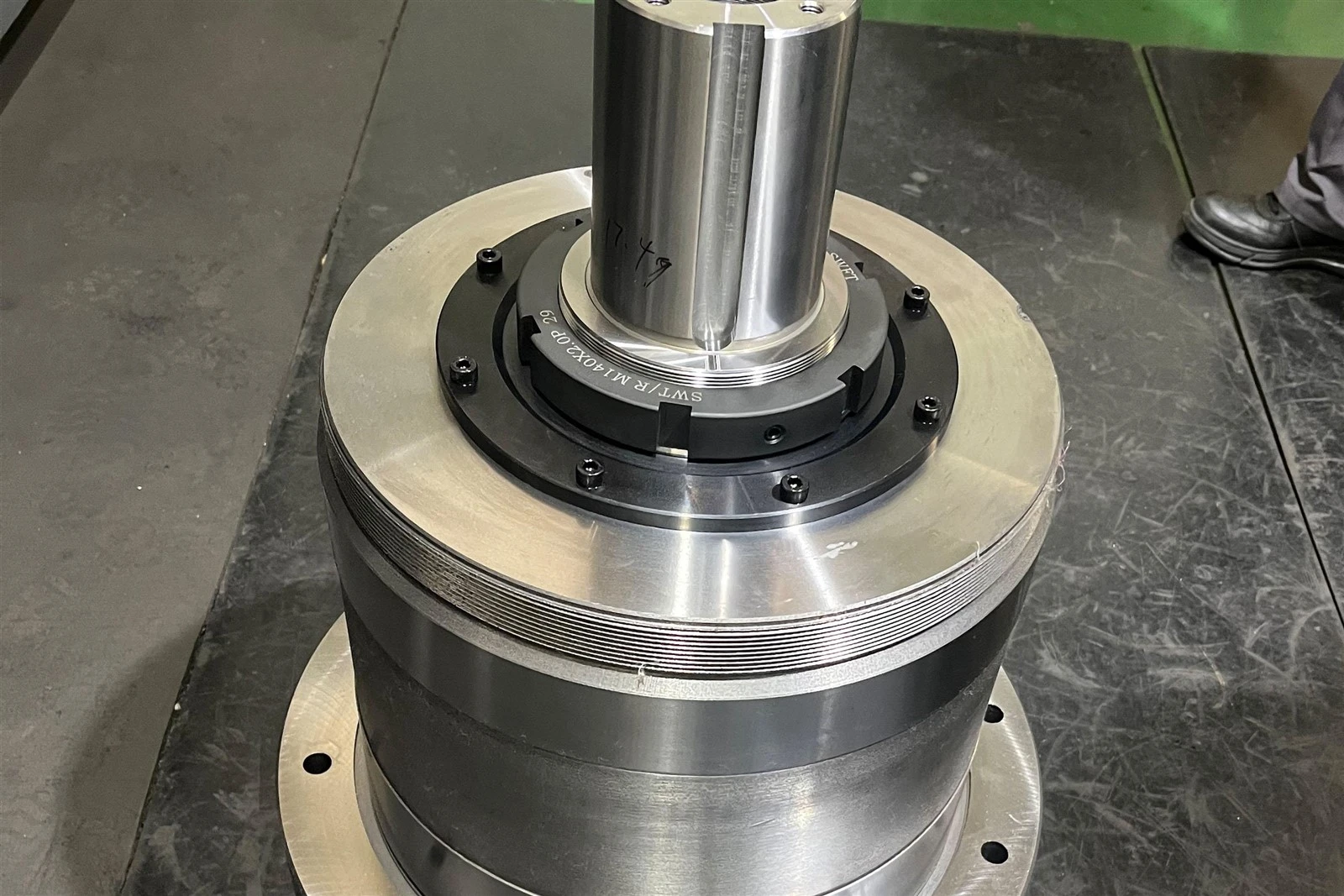

Precision Machine Tool Spindle
Stable and Reliable Spindle System
No more unstable heavy cutting. The spindle runs 100–1000 rpm to machine cast iron, steel and more. Backed by an 18.5 kW motor and 160 mm spindle diameter, it outputs strong torque and rigidity to sustain tough cuts and keep machining steady.

Hydraulic Clamping and Multi-Station Turret Configuration
Secure, fast clamping for large parts. Equipped with a standard 18-inch hydraulic chuck, it guarantees reliable grip and excellent concentricity. Pick 4-station or 8-station turrets to support multi-step processing, cut tool change time and raise productivity.
Vertical Lathe Fixtures
CNC Vertical Lathe Ball Screw
Linear Guideway Design
Consistent accuracy for long production runs. X and Z axes adopt paired 45 mm rolling linear guideways, bringing great load capacity, precise positioning and impact resistance. They resist deformation over hours of operation to prevent accuracy drift.





Standard configuration

Fully enclosed guarding
Hydraulic 3-jaw chuck and rotary cylinder
Hydraulic chuck soft jaws
Foot pedal switch
Automatic lubrication system

Work light
Three-color signal light
Electrical cabinet air conditioner
Chip cart
Chain-type chip conveyor

Optional


Intelligent robotic arm (ABB/FANUC/KUKA)
Hydraulic chuck with hard jaws
Upgraded spindle motor power
Transformer
Oil-water separator
Customized tool holder
Oil mist collector
Extended Z-axis travel
High-pressure coolant through tool holder




Applicable machining parts




With this CNC vertical turning lathe, you can complete turning, drilling, milling and tapping processes all on one machine.
It handles disc-style parts common across the automotive sector: wheel hubs, brake drums, flywheel housings, clutch housings, pressure plates, wheel rims, differential housings and more.



If you're tired of juggling multiple separate machines for these automotive disc components, struggling with repeated part re-fixturing, long cycle times and inconsistent dimensional accuracy, this single vertical lathe consolidates your operations. Cut extra setup work, reduce alignment errors, stabilize part quality and boost throughput for your automotive component production.

8



Customer visits




As a professional manufacturer of CNC vertical lathes, we always welcome customers from around the world to visit our facilities in person, allowing them to gain a firsthand understanding of our manufacturing process, quality control systems, and overall machine performance.

cnc vertical lathe machine
vertical turning lathe for sale
vertical cnc lathe machine
lathe vertical
Certificate



Certificates such as CE certification, product conformity certificates, factory inspection reports, and machinery safety compliance reports can be provided.



-1
-2
-3
-4
-5
-6





FAQ



Q: What kinds of auto parts can I run on this CNC vertical turning lathe?

A: It works well for disc-shaped automotive parts including wheel hubs, brake drums, flywheel and differential housings, clutch housings, pressure plates and wheel rims. You can finish turning, drilling, milling and tapping right on it.

Q: Can this machine help cut down repeated part clamping work?

A: Yes. Combining multiple machining steps in one setup means you won't need to move and re-secure parts across different machines as often. This helps you avoid many alignment mistakes.

Q: Will this lathe keep consistent precision for high-volume disc component runs?

A: It is built for steady repeat accuracy when you batch process these automotive disc parts, so finished parts stay within your required tolerances run after run.

Q: Is this unit a good fit if my shop mainly makes automotive brake and wheel components?

A: Absolutely. It's designed around the disc-style parts commonly found in automotive powertrain and braking systems, matching the needs of most component manufacturers in this space.

Q: What machining tasks can I combine on this machine for my auto parts?

A: You can complete turning, drilling, milling and tapping operations in one setup. That removes the hassle of scheduling several separate machines for one workpiece.
