Single-column CNC Vertical Lathe
A single-column CNC vertical lathe is a high-efficiency, high-precision, and high-productivity machining equipment. Driven by a digital control system, it can be equipped with various optional systems to machine a wide range of complex workpieces. Generally, CNC vertical lathes are suitable for producing high-difficulty, small-batch precision parts.
Due to the use of digital control, CNC vertical lathes can complete multiple complex processing procedures in one step. More importantly, the equipment can not only improve production efficiency, but also reduce life cycle costs, thus playing an important role in improving the competitiveness of enterprises. Compared with traditional equipment, CNC vertical lathes are simple to operate, have good process, can ensure high-precision processing quality, and are not prone to errors.
The system options of CNC vertical lathes include upgrading the basic module of the machine bed to increase the stability of the machine tool; optimizing and upgrading the tools used in the transmission device during the processing to make it more durable; and upgrading the tools required in the processing process to achieve higher work efficiency. These options can be selected according to the planned processing needs and processing objects.
Single-column CNC vertical lathes are highly efficient machining equipment. Due to their high precision and production efficiency, they have become commonly used machine tools in modern manufacturing and are widely applied. Whether in metal casting, aerospace, automotive, or rail transportation, CNC vertical lathes play a vital role and have achieved excellent results in practical applications.
Technical parameters
| Specification | unit | VTC50 | VTC60 | VTC70 | VTC80A | VTC100A | |
| Stroke | X axis | mm | 500 | 425 | 700 | 670 | 850 |
| Z axis | mm | 0-500 | 90-690 | 0-850 | 170-1020 | 0-1000 | |
| Processing capacity | Maximum rotation diameter | mm | φ650 | φ650 | φ800 | φ1000 | φ1200 |
| Maximum turning diameter | mm | φ500 | φ600 | φ700 | φ800 | φ1000 | |
| Maximum turning height | mm | 500 | 600 | 850 | 850 | 1000 | |
| Spindle | Spindle speed | rpm | 100-1000 | 100-1000 | 100-800 | 100-800 | 100-800 |
| Spindle motor power | Kw | 15 | 18.5 | 22 | 22 | 22 | |
| Spindle diameter | mm | φ130 | φ160 | φ160 | φ180 | φ200 | |
| Hydraulic chuck + tool Turret | Chuck model | Hydraulic chuck | |||||
| diameter | inch | 15" | 18" | 21" | 24" | 32" | |
| Turret station | Four workstations/ eight workstations |
Four workstations/ eight workstations |
Four workstations/ eight workstations |
Four workstations/ eight workstations 四工位/八公位 |
Four workstations/ eight workstations 四工位/八公位 |
||
| guide | X-axis rolling linear guide | 2 pieces, width 45mm | 2 pieces, width 45mm | 2 pieces, width 45mm | 2 pieces, width 45mm | 2 pieces, width 55mm | |
| Z axis rolling linear guide | 2 pieces, width 45mm | 2 pieces, width 45mm | 2 pieces, width 55mm | 2 pieces, width 55mm | 2 pieces, width 55mm | ||
| CNC system | Standard configuration | GSK | GSK | GSK | GSK | GSK | |
| Cooling system | cooling motor | W | 450+750 | 450+750 | 750+1.2kw | 750+1.2kw | 750+1.2kw |
| Pump output | m³/h | 4m³/h | 4m³/h | 4m³/h | 4m³/h | 4m³/h | |
| Accuracy | Repeatability | mm | ±0.003 | ±0.003 | ±0.003 | ±0.005 | ±0.005 |
| positioning accuracy | mm | ±0.06 | ±0.06 | ±0.06 | ±0.08 | ±0.08 | |
| smallest positioning unit | mm | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
| Weight and dimensions | Dimensions (approx.) | mm | 2100×2500×2750mm | 2200×2050×2910mm | 2400×2100×3200mm | 2400×2100×3600mm | 3100×2650×3700mm |
| Gross weight (approx.) | Kg | 5500 | 7500 | 8000 | 9000 | 13500 | |
Applicable machining parts
Automobile wheel hub, brake drum, flywheel housing, clutch housing, pressure plate, rim, differential housing, disc and other parts.
1. Engineering machinery industry
CNC vertical lathes can process large and complex engineering machinery parts.
2. Military industry
In the military industry, CNC vertical lathes are often used to manufacture precision weapon parts.
3. Shipbuilding industry
CNC vertical lathes can efficiently and accurately complete the processing of key components such as hull structures and propellers.
4. Automobile industry
It can process high-precision parts such as automobile engine parts, chassis parts, and gearbox parts. It is also suitable for the processing of automobile brake discs, brake drums, aluminum alloy wheels and other parts.
5. Aerospace field
CNC vertical lathes can be used to process precision aircraft parts, such as turbine blades.
Show details
CNC system
Chuck
Servo turret

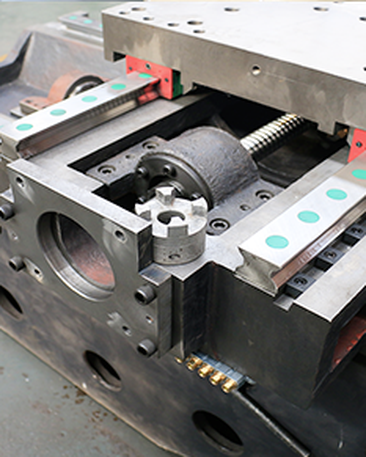

High rigidity structure
Our advantage
Micron-level processing technology
Completely independent
core assembly self-developed technology
Manual scraping
The fixed surfaces of the bearing unit and the spindle
are manually scraped
Central water outlet system
Optional central water outlet system
Laser Detection
Reduce errors and achieve higher positioning accuracy
Customer visits
Certificate
FAQ
Q: What industries fit this single-column CNC vertical lathe?
A: It suits automotive, flange, gear, bearing, and general mechanical processing.
Q: What control system is standard?
A: We use mainstream CNC systems; we can also install your preferred brand.
Q: Do you provide overseas installation and training?
A: Yes, we offer online installation, commissioning, and operator training.
Q: Can we customize chuck size, turning diameter, or accessories?
A: Fully customizable to match your workpiece size and processing needs.
Q: How is after-sales support provided?
A: Remote troubleshooting is available 24/7.
Q: Is training included for new buyers?
A: Free basic operation and maintenance training is included with every machine.
