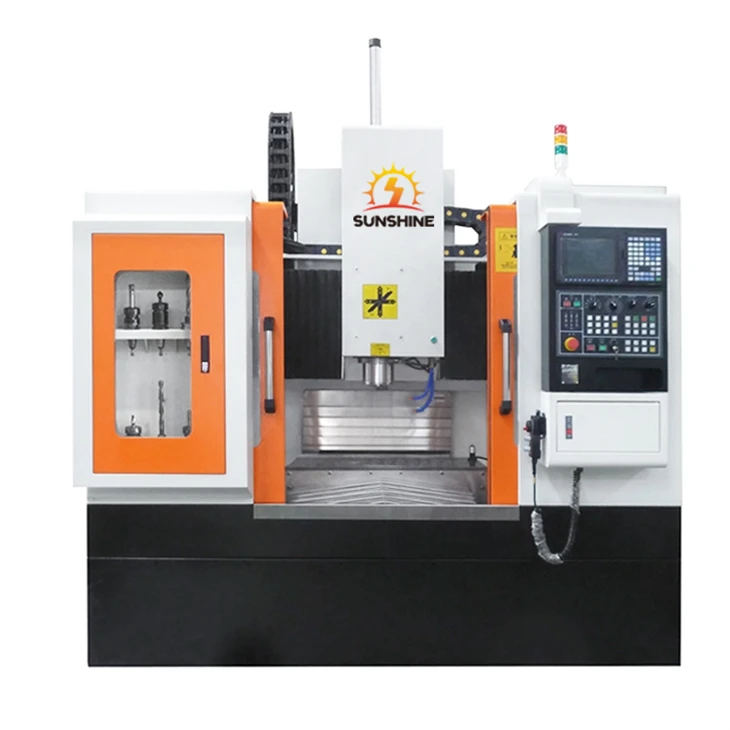

Used CNC Vertical Machining Center
The spindle adopts high speed and high rigidity spindle unit, which has strong axial bearing capacity and high speed. This means that the device can withstand greater loads during processing and has a faster operating speed. Whether it is for precision machining or large-scale parts processing, it can maintain stable and efficient production.
The better sealing makes the equipment have high reliability and effectively prevents the intrusion of cutting fluid and dust. This design not only extends equipment life and reduces maintenance costs, but also provides a clean, safe operating environment. Especially for some industries with high environmental requirements or need to handle sensitive materials, such characteristics are very important.
The use of advanced dust-proof sealing technology further enhances the durability and reliability of the equipment. Through the use of a specially designed sealing device, the external dust and particulate matter are effectively isolated from the damage or affect the normal operation of the internal parts of the machine during the cutting process. At the same time, it also reduces the maintenance frequency and improves the production efficiency.
These advantages make the equipment suitable for a variety of complex processing needs, and is widely used in automotive manufacturing, aerospace, electronic communications and other fields to meet customer requirements on product quality and production efficiency.
| Model | VMC650 | VMC840 | VMC850 | VMC855 | VMC966 |
| Table size (mm) | 1000X400 | 1000X400 | 1000X500 | 1000X550 | 1100X550 |
| Allowable maximum load (Kg) | 400 | 300 | 500 | 500 | 600 |
| X-axis travel (mm) | 650 | 800 | 800 | 800 | 900 |
| Y-axis travel (mm) | 400 | 400 | 500 | 550 | 600 |
| Z-axis travel (mm) | 550 | 550 | 500 | 550 | 600 |
| T-slot | 3-18-120 | 3-18-140 | 5-18-108 | 5-18-90 | 5-18-100 |
| Distance from spindle center to Z-axis rail surface (mm) | 485 | 445 | 552 | 590 | 663 |
| Distance from spindle end face to work table (mm) | 100-650 | 100-650 | 110-610 | 120-670 | 100-700 |
| Spindle taper | BT40-120 | BT40-120 | BT40-140 | BT40-150 | BT40-150 |
| Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 8000 |
| X/Y/Z rapid movement (m/min) | 48/48/48 | 30/30/18 | 48/48/48 | 48/48/48 | 48/48/48 |
| Machine weight (Kg) | 3800 | 3200 | 5300 | 5500 | 5600 |
| Model | VMC1050 | VMC1160 | VMC1165 | VMC1265 | VMC1370 | VMC1580 |
| Table size (mm) | 1200X420 | 1200X600 | 1200X600 | 1200X600 | 1400X700 | 1700X800 |
| Allowable maximum load (Kg) | 500 | 800 | 800 | 800 | 800 | 1500 |
| X-axis travel (mm) | 1000 | 1100 | 1100 | 1200 | 1300 | 1500 |
| Y-axis travel (mm) | 500 | 600 | 650 | 650 | 700 | 800 |
| Z-axis travel (mm) | 550 | 600 | 650 | 650 | 750 | 700 |
| T-slot | 5-18-100 | 5-18-100 | 5-18-100 | 5-18-100 | 5-18-130 | 5-22-135 |
| Distance from spindle center to Z-axis rail surface (mm) | 575 | 650 | 710 | 710 | 713 | 855 |
| Distance from spindle end face to work table (mm) | 100-650 | 120-720 | 120-720 | 120-770 | 120-870 | 160-860 |
| Spindle taper | BT40-150 | BT40-150 | BT40-150 | BT40-150 | BT40-150 | BT50-155 |
| Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 8000 | 6000 |
| X/Y/Z rapid movement (m/min) | 18/18/18 | 36/36/24 | 36/36/36 | 36/36/36 | 24/24/24 | 24/24/18 |
| Machine weight (Kg) | 5500 | 6500 | 6800 | 7000 | 8000 | 12000 |
