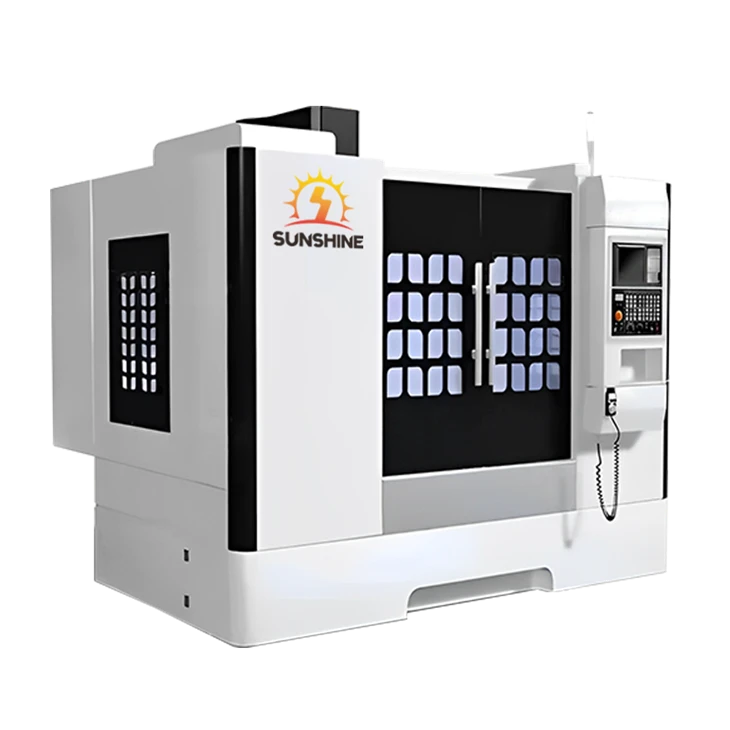

VMC1160 Vertical Milling Machine

The VMC1160 Vertical Milling Machine can handle parts up to 1100 × 600 mm in size. Its reinforced table saddle supports a maximum load of 800 kg. The spindle motor is available in either 11 kW or 15 kW, depending on the part being processed. The machine's base and column, combined with high-rigidity, heavy-duty roller guides on all three axes, keep the table stable during movement. Both the X and Z axes use six sliders to enhance load-bearing rigidity and absorb vibrations during heavy cutting, improving workpiece accuracy and surface finish. This large-stroke, high-rigidity machine is suitable for processing most steel parts.

Get a quote

■ Meehanite Casting Process

The base and body of the VMC1160 vertical milling machine are made of high-grade Meehanite castings and tempered to ensure material stability, maintain high-speed cutting accuracy over time, and achieve a repeatability of ±0.003 mm.

■ High-Rigidity / High-Speed / High-Precision Spindle

Features a lightweight design, low thermal expansion coefficient, and high hardness, significantly reducing heat generation and centrifugal force at high speeds, thereby greatly extending spindle life.
BT40 direct-drive spindle with speeds up to 8000 rpm.
Equipped with a disc-type 24-tool robotic arm, providing fast tool changes, high stability, and a maximum tool diameter of 300 mm.

■ Spindle annular water outlet

A ring-shaped water spray device around the spindle provides optimal cooling for the workpiece and cutting tools, extending tool life and improving workpiece surface finish.

Z-Axis Linear Guide with Six Sliders: The Z-axis features two linear guides and six sliders to enhance the machine's stability during machining. Three-axis roller guides ensure high precision and rigidity.

◆ Configuration Selection

The VMC1160 Vertical Milling Machine has a machining range of 1100 × 600 × 600 mm and is suitable for drilling, reaming, boring, beveling, tapping, face milling, stepped-plane milling, slope milling, grooving, and for cutting and milling curves, curved surfaces, and cams. It can machine parts such as housings, irregularly shaped automotive components, engine end covers, oil pump housings, and gearbox housings.

1. Increased Capacity and Faster Return on Investment
High-speed cutting and multi-stage continuous machining significantly shorten production cycles.

Reducing workpiece clamping times and minimizing manual intervention improves capacity utilization.

Faster return on investment, timely order delivery, and a stronger competitive edge in the market.

2. Reliable Precision and Consistent Part Quality
High-rigidity spindles and precision guideways ensure dimensional accuracy and excellent surface finish for every part.

Whether in aerospace, automotive components, or precision molds, customers can consistently meet high standards.

3. Versatile and Flexible, Meeting Diverse Needs
Compatible with a wide range of cutting tools and materials, including steel, aluminum alloys, and stainless steel.

Suitable for mass production while also accommodating small-batch, customized processing, supporting business growth.

4. Durable and Cost-Efficient
High-quality components and an optimized machine structure ensure long-term stable operation.

Low failure rates and easy maintenance reduce downtime and operational risks, making the equipment a valuable asset for your business.

5. Professional Support for Seamless Production
Comprehensive technical support-from installation and commissioning to operator training and regular maintenance.

Get customized solutions.
