Inclined Rail CNC Lathe Has High Efficiency
Products Description

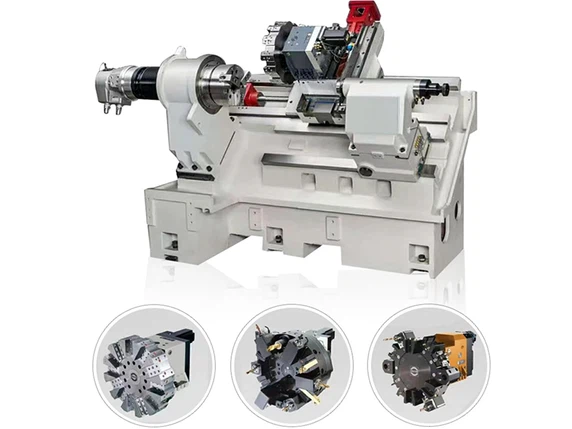

The CNC inclined lathe is a high-efficiency, high-cutting-speed CNC lathe. It adopts an inclined rail design, which can bring faster and more stable cutting speeds, while ensuring the improvement of manufacturing efficiency.
The design of the inclined rail CNC lathe is more innovative and efficient, and can bring users faster and more accurate work results. The inclined rail equipment can effectively reduce vibration and wear, eliminate the friction of the material, so that the cutting energy is more effectively used in the manufacture of the workpiece. Compared with traditional CNC lathes, the inclined rail CNC lathe has a faster speed, can process workpieces faster during the work process, greatly improves work efficiency, and reduces manufacturing costs and manufacturing cycles.
The inclined rail CNC lathe is specially designed for single-piece, small-batch and medium-batch production. The inclined rail CNC lathe has higher processing accuracy and faster processing speed, and has a very broad market application prospect. Especially in industries such as aerospace, transportation, mold manufacturing, medical equipment, vacuum technology, optical technology, life sciences, power machinery, and military manufacturing, the inclined rail CNC lathe is a very suitable production equipment.
In addition, the inclined rail CNC lathe also has a variety of processing methods and processing ranges, which can realize precision spherical surface, curve processing, spiral line processing, spiral line graphic processing, cone processing, hole processing, etc. At the same time, the inclined rail CNC lathe also has the characteristics of simple operation, high degree of automation, strong processing ability, high stability, etc., which can meet various processing needs.
In short, the inclined rail CNC lathe is a high-efficiency, high-speed CNC lathe with a wide range of market application prospects. It has a very important position and role in various industries.
| Specification | unit | TCK4550 | TCK4556-500 | TCK4556-1000 | TCK4572-1500 |
| Swing over bed | mm | 500 | 560 | 560 | 720 |
| Max machining length | mm | 360 | 350 | 350 | 620 |
| Swing over slide | mm | 500 | 500 | 1000 | 1500 |
| Spindle motor power | KW | 11-15 | 11-15 | 30-37 | 30-37 |
| Diameter of spindle through hole | mm | 65 | 65 | 65 | 80 |
| Max spindle speed | rpm | 50-4500/177 | 50-4500/177 | 50-4500/177 | 50-3500/145 |
| Tilt angle | deg | 45 | 45 | 45 | 45 |
| Clamping system | - | 8"/10" | 8"/10" | 15"/18"/21" | 15"/18"/21" |
| X-axis travel | Kw | 200 | 200 | 200 | 420 |
| Z-axis travel | mm | 550 | 560 | 1050 | 1550 |
| Tailstock sleeve diameter / travel | mm | 450 | 450 | 900 | 1650 |
| Sleeve taper | MT | 5 | 5 | 6 | 6 |
| X/Z fast movement | m/min | 30/30 | 30/30 | 30/30 | 12/16 |
| Dimensions | mm | 2300*1600*1800 | 2300*1600*1800 | 5000*2400*2800 | 6000*2400*2800 |
| Machine weight (approx) | Kg | 3600 | 3600 | 4500 | 5000 |
Application Scenario
Mold manufacturing, aerospace, automobile manufacturing, parts processing, rail transportation, ships, bearings,
injection molding and other fields.
Mould manufacturing
CNC inclined lathe is suitable for mould processing with complex shapes, such as automobile moulds, aerospace moulds, etc. Its high precision and stable performance ensure the manufacturing quality of the mould.
Parts processing
CNC inclined lathes can process parts of various materials (such as steel, non-ferrous metals, plastics, etc.), and are widely used in parts processing in the fields of production machinery and equipment, electronic products, instruments and meters, etc.
Aerospace field
Aerospace field: Since CNC inclined lathes have good processing capabilities for large parts and reasonable cutting force distribution, they are widely used in aircraft structure assembly.
Automobile manufacturing industry
Key components such as automobile engine cylinder blocks, crankcases, and transmission system gears require high-precision processing through CNC inclined lathes.
Show details
Our advantage
High-precision ball screw
Imported high-precision ball screw, high precision and accurate transmission
Manual scraping
Reduce surface roughness and ensure optimal equipment accuracy
Saddle
Using high-density cast iron material, the whole is cast in one step
Laser Detection
Reduce errors and achieve higher positioning accuracy
This machine tool is mainly used for various shaft and disc parts. It can turn various threads, arcs, cones and internal and external surfaces of rotating bodies. It can meet the speed requirements of high-speed cutting of ferrous and non-ferrous metals and is suitable for industries such as automobiles, motorcycles, electronics, aerospace, and military industry.
The processing area has a single-layer pull cover and independent guide railswith high reliability.The non-processing area has armor protection withsmall footprint.
The flat sliding guide rail, high-rigidity manual bottom plate locking, highreliability.
The enlarged chip removal port arranged directly below the spindle is moreconvenient for the discharge and cleaning of cutting chips.
