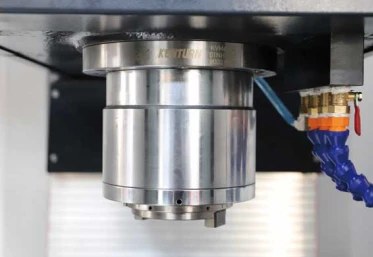

VMC855 Automatic Tool Change CNC Milling Machine

VMC855 automatic tool change CNC milling machine is a high-quality and high-efficiency machine tool equipment. It has high-speed and high-precision processing capabilities, and can quickly and accurately complete various complex parts processing. The CNC milling machine adopts advanced technologies such as imported high-rigidity spindles and high-speed feed servo systems, which makes the stability and processing efficiency of the entire machine tool reach a higher level.
The CNC milling machine has a fully automatic tool change function, which greatly improves the production efficiency of the machine tool. At the same time, the CNC milling machine is equipped with important components such as hydraulic workbenches and hydraulic chucks, which greatly improves the processing accuracy and stability of the equipment.
CNC milling machines are not only suitable for metal processing, but also can meet the processing needs of various materials such as plastics, aluminum alloys, and various sheet materials. It has the characteristics of high efficiency and energy saving, easy operation, etc., and is widely used in machinery manufacturing enterprises of various sizes.
In short, VMC855 automatic tool change CNC milling machine is a processing equipment with excellent performance, high efficiency and high precision. Its appearance can not only improve the production efficiency and processing quality of mechanical processing enterprises, but also save a lot of manpower and material costs for enterprises.
| Specifications | unit | VMC650 | VMC850 | VMC855 |
| Table size | mm | 900x400 | 1000X500 | 1000x550 |
| Table maximum load | kg | 350 | 500 | 500 |
| X/Y/Z axis travel | mm | 650x400x500 | 800x500x500 | 800x550x550 |
| Distance between spindle centerand column | mm | 476 | 552 | 590 |
| Distance between spindle endface and worktable surface | mm | 100-600 | 120-670 | 120-670 |
| X/Y/Z Max. feed speed | mm/min | 10000 | 10000 | 10000 |
| X/Y/Z Max. Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/30 |
| spindle speed | r/min | 8000 | 8000 | 8000 |
| spindle taper | type | BT40 | BT40 | BT40 |
| Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 |
| X/Y/Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 |
| X/Y/Z motor connection | Direct | Direct | Direct | |
| X/Y/Z Guide way type | Line rail | Line rail | Line rail | |
| T slot | mm | 3-18x125 | 5-18x90 | 5-18x90 |
| Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 |
| Tool magazine | Hat type/disc type | Hat type/disc type | disc type | |
| Tool capacity | 16T/16T | 24T | 24T | |
| Maximum tool weight | kg | 7 | 8 | 8 |
| Max. tool length | mm | 250/300 | 250/300 | 300 |
| Electric capacity | kVA | 10 | 15 | 15 |
| Machine dimension(LxWxH) | mm | 2300x2000x2300 | 2600x2380x2700 | 2600x2380x2700 |
| Net. weight (about) | kg | 4500 | 5000 | 5000 |
