The VMC1370 Vertical Machining Center features X/Y/Z-axis travels of 1300/700/750 mm. Designed for machining medium to large workpieces, this CNC machine is widely used in industries such as mold manufacturing, automotive components, construction machinery, automation equipment, energy systems, and general machinery manufacturing. The machine is equipped with a high-rigidity bed structure, a precision transmission system, and a heavy-duty BT50 spindle, enabling a wide range of machining operations, including milling, drilling, tapping, and boring. It also supports the complete machining of complex parts in a single setup, improving both efficiency and accuracy.
| Model | VMC1370 | VMC1580 |
| Table size (mm) | 1400X700 | 1700X800 |
| Allowable maximum load (Kg) | 800 | 1500 |
| X-axis travel (mm) | 1300 | 1500 |
| Y-axis travel (mm) | 700 | 800 |
| Z-axis travel (mm) | 750 | 700 |
| T-slot | 5-18-130 | 5-22-135 |
| Distance from spindle center to Z-axis rail surface (mm) | 713 | 855 |
| Distance from spindle end face to work table (mm) | 120-870 | 160-860 |
| Spindle taper | BT40-150 | BT50-155 |
| Spindle speed (r/min) | 8000 | 6000 |
| X/Y/Z rapid movement (m/min) | 24/24/24 | 24/24/18 |
| Machine weight (Kg) | 8000 | 12000 |
Note:
Reach Our Team!Specific configurations can be adjusted based on the customer's processing requirements.
Product Advantages
High-Rigidity Cast Iron Structure
●Widened Base
●Box-Section Column
●Multi-Layer Ribbed Structure
●Wide-Span Guide Rail Layout
BT50 Heavy-Duty Spindle System
●Enhanced Tool Clamping Rigidity
●Superior Cutting Performance
●Spindle Speed up to 8,000 rpm
●Suitable for Machining with Large-Diameter Tools

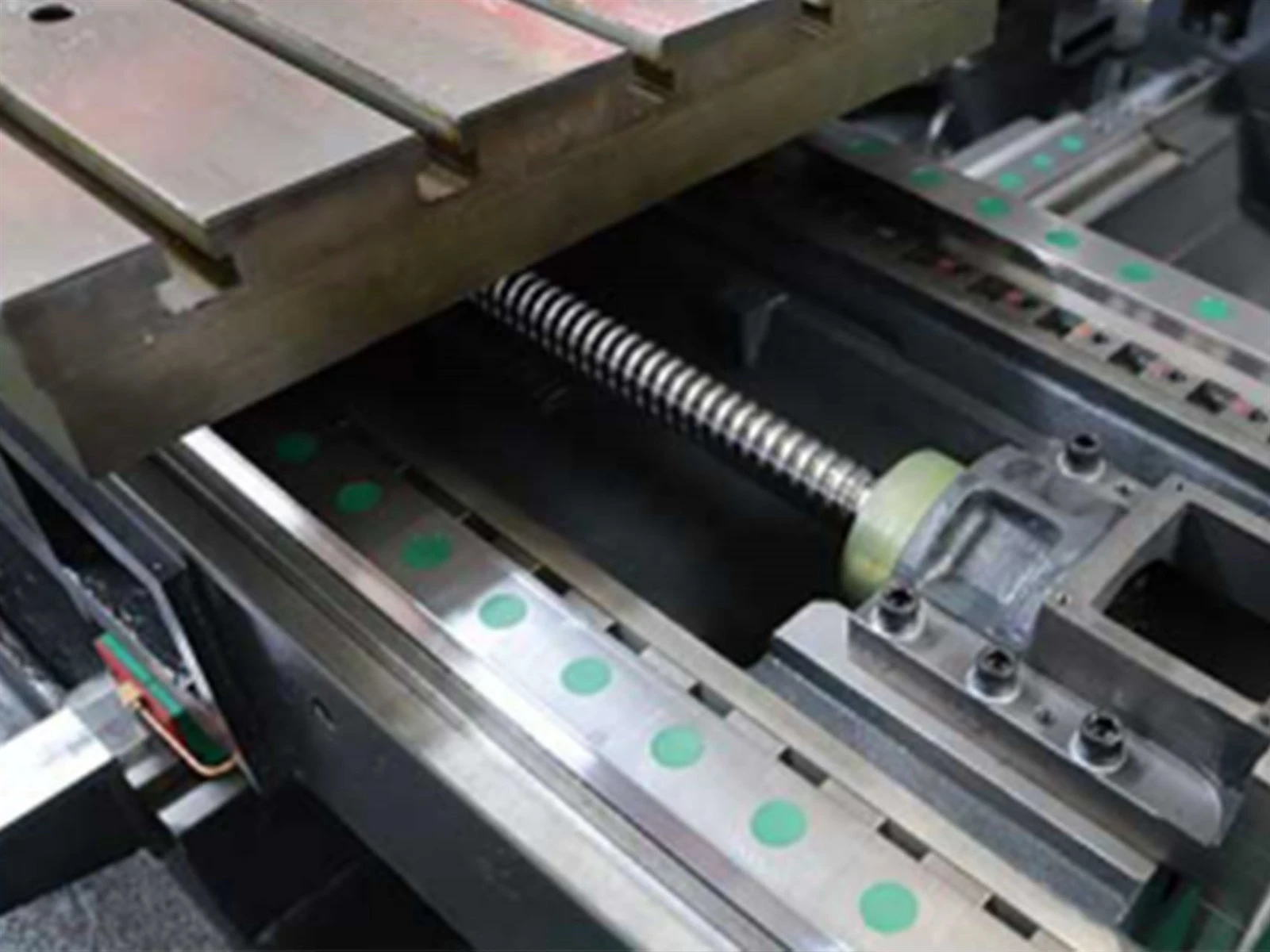

Precision Transmission System
●All three axes utilize high-precision ball screws supported by precision bearings.
●Improves dimensional consistency during machining.
●Maintains repeatability within ±0.005 mm.

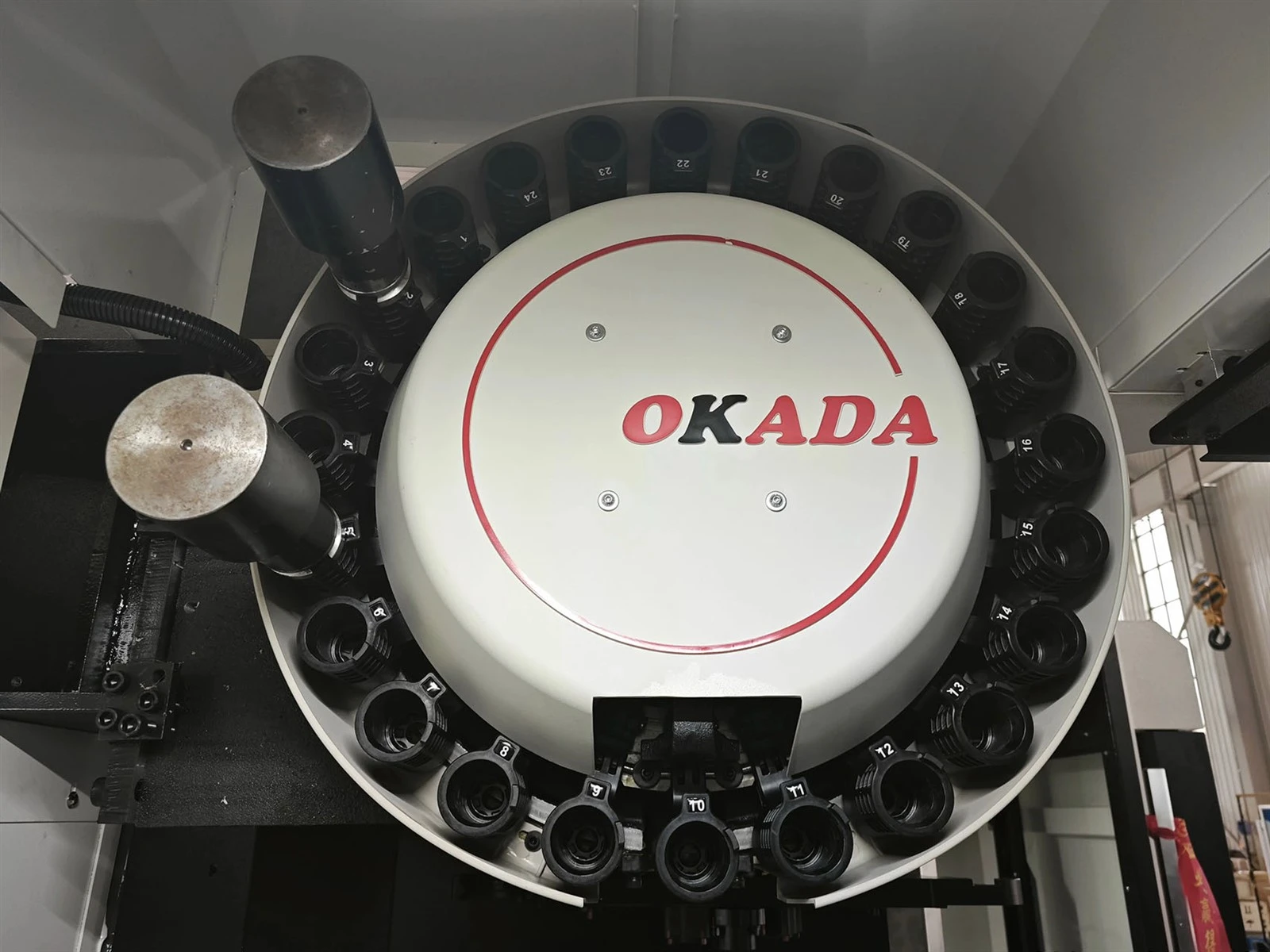

Automatic Tool Changer System
●Standard 24-tool robotic tool magazine
●Enables continuous multi-step machining of complex parts
●Suitable for batch production
Key Features
Face Milling
●Mold Base Plates
●Machine Mounting Surfaces
●Steel Structure Connection Surfaces
Ensures consistent surface flatness across machined components.
01
Drilling Operations
●Through-Holes
●Blind Holes
●Deep Holes
Meets the diverse drilling requirements of various parts.
02
Tapping Operations
Performed using the rigid tapping function:
●M6–M24 Threading
03
Boring Operations
●Box-Type Parts
●Flange-Type Parts
●Precision Bore Machining
Ensures bore diameter accuracy and compliance with coaxiality requirements.
04
Multi-Sided Machining of Complex Parts
Compatible with the addition of a 4th axis or CNC rotary table:
● Multi-angle machining
● Multi-position machining
● Complete manufacturing of complex workpieces in a single setup
05

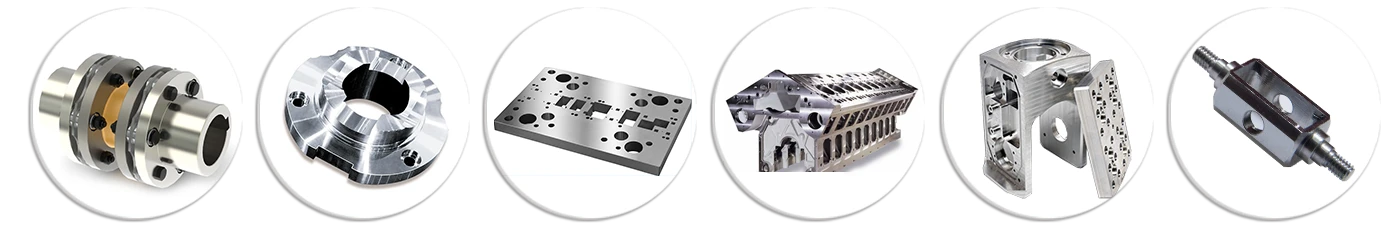

Industry Applications
Mold Manufacturing Industry
◆ Injection Molds
◆Die-Casting Molds
◆Stamping Dies
Automotive Components Industry
◆ Transmission Housings
◆ Brake System Components
◆ Jigs and Fixtures
Construction Machinery Industry
◆ Hydraulic Components
◆ Structural Connectors
◆ Housing Components
Automation Equipment Industry
◆ Equipment Frames
◆ Precision Fixtures
◆ Automation Components
Energy Equipment Industry
◆ Valve Components
◆ Flange Components
◆ Structural Parts for Power Equipment

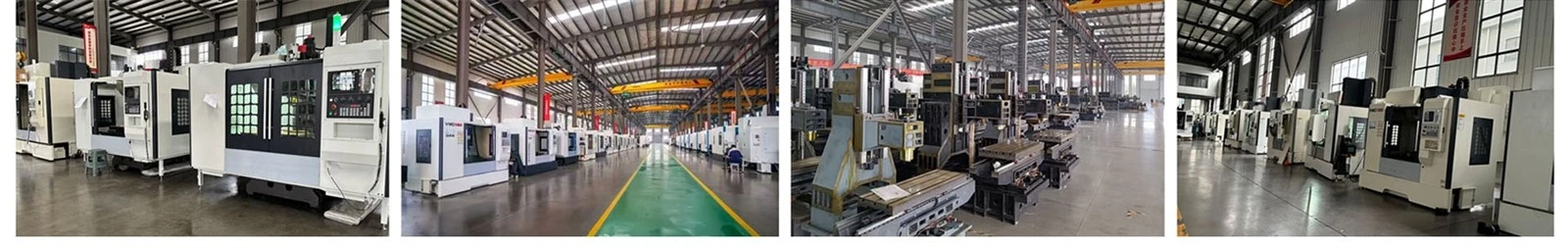

About SUNSHINE
● Over 20 years of experience in mechanical equipment manufacturing
● 24/7 online customer support
● 24-month warranty
● ODM and OEM services available
● Free machining tests for customer workpieces
● Comprehensive solutions for machining projects
● Rigorous quality control and multiple inspection procedures
● On-site installation, commissioning, and operator training
● Serving clients in over 150 countries and regions worldwide
● Assistance with customs clearance procedures and required documentation for international shipments
