Five-axis Milling Machine

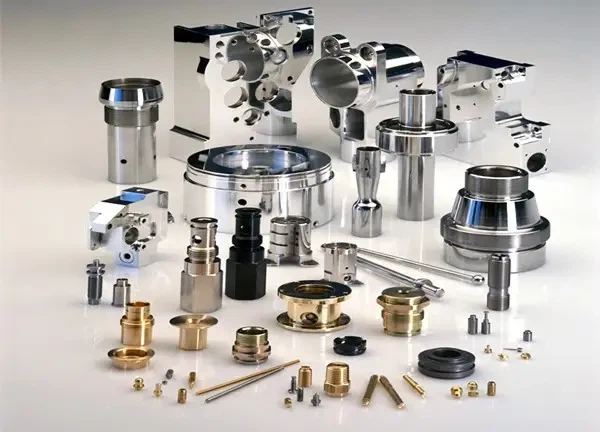

The CNC five-axis milling machine is a high-precision and high-efficiency five-axis processing equipment, which can be widely used in the processing of parts in the fields of aerospace, automobiles, molds, medical equipment, etc. The CNC five-axis milling machine can achieve more complex and precise processing tasks.
The CNC five-axis milling machine adopts high-performance imported spindles, which can achieve high-speed processing, high-precision processing and high-load processing, and is suitable for processing parts of various shapes and materials. The five-axis machining center adopts high-strength machine tool castings, which has excellent rigidity and stability, ensuring high-speed and high-precision processing quality.

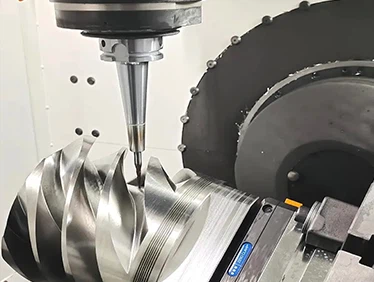

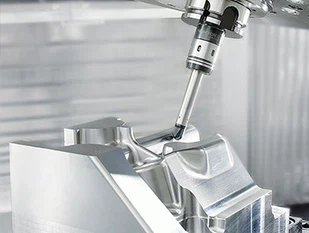

The CNC five-axis milling machine is easy to operate. The operator only needs to perform basic digital input operations and program arrangement to complete the processing of complex parts. During processing, the spindle can rotate and tilt freely to realize the processing of complex curved surfaces, porous profiles, worm nuts and other parts.
The CNC five-axis milling machine is an indispensable and important equipment in modern industry, with broad application prospects and market demand. In the future, with the continuous development of science and technology and the continuous improvement of production technology, the CNC five-axis milling machine will gradually become one of the representatives of industrial automation and intelligence, providing strong support for the development of various industries.
| Specification | unit | CMC500f | CMC650U | DMC800U |
| working desk size | mm | Φ630×500 | Φ650×540 | Φ800 |
| Workbench T-slot | mm | 14 | 14 | 14 |
| Center hole of workbench | mm | Φ30 | Φ50 | Φ50 |
| Maximum load-bearing capacity of workbench | kg | 200 | 300 | 1200 |
| X-axis travel | mm | 550 | 650 | 850 |
| Y-axis travel | mm | 450 | 520 | 850 |
| Z-axis travel | mm | 400 | 475 | 600 |
| A-axis rotation range | º | - | ±120 | ±120 |
| B-axis rotation range | º | -5/110 | - | - |
| C-axis rotation range | º | 360 | 360 | 360 |
| Distance from spindle end to worktable | mm | 150-550 | 150-625 | 150-750 |
| Spindle taper | -- | BBT40 | BBT40 | HSK-A63 |
| Spindle maximum speed | rpm | 10000 | 12000 | 14000 |
| Spindle power | kw | 7.5 | 7.5 | 25 |
| Spindle torque | N.M | 35.8/70 | 45 | 91.7 |
| Tool magazine type | -- | Disc | Disc | Horizontal chain type |
| Tool magazine capacity | 把 | 24 | 24 | 30 |
| Maximum tool diameter (full tool/adjacent tool) | mm | Φ78/Φ150 | Φ78/Φ150 | Φ78/Φ150 |
| Maximum tool length | mm | 300 | 300 | 300 |
| Maximum tool weight | kg | 8 | 8 | 8 |
| Tool change time (T-T) | s | 1.55 | 1.55 | 2 |
| Rapid moving speed (X/Y/Z) | mm/min | 42000/42000/42000 | 42000/42000/42000 | 32000/32000/32000 |
| Cutting feed speed (X/Y/Z) | mm/min | 1-10000/1-10000/1-10000 | 1-10000/1-10000/1-10000 | 1-10000/1-10000/1-10000 |
| Positioning accuracy (X/Y/Z) | mm | 0.005/300JIS | 0.005/300JIS | 0.005/300JIS |
| Positioning accuracy (A/C) | " | - | ±5 | ±5 |
| Positioning accuracy (B/C) | " | ±5 | - | - |
| Repeatability (X/Y/Z) | mm | ±0.003JIS | ±0.003JIS | ±0.003JIS |
| Repeatability (A/C) | " | - | 4 | 4 |
| Repeatability (B/C) | " | 4 | - | - |
| Machine weight | kg | 6500 | 8500 | 18000 |
| Machine dimensions | mm | 3500×3400×2700 | 3970×3210×2800 | 5500×4000×3500 |
