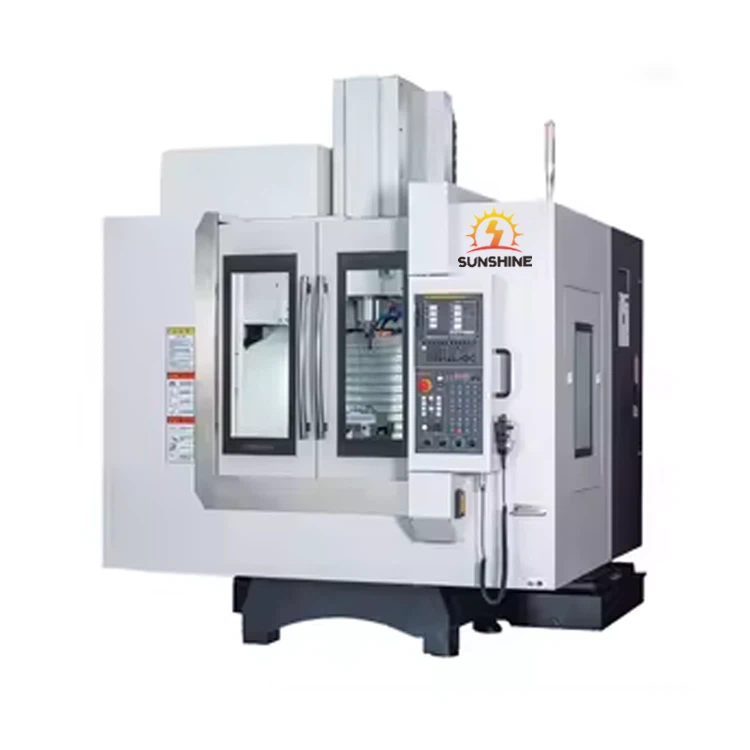

High Speed Drilling And Tapping Machining Center
Our high speed drilling and tapping machining center is built for fast, precise, and reliable machining of small-to-medium parts used in 3C, automotive, hardware, and precision component manufacturing. It combines high-speed movement, stable rigidity, and easy operation to cut cycle times, reduce errors, and boost daily output. This machine is made to handle high-volume, repeatable jobs while keeping consistent quality for long production runs.
Product advantages
Innovative bed structure design
Adopting triangular force-bearing structure, high rigidity and high shock resistance ensure the long-lasting and stable precision of the machine tool and longer service life.
High-rigidity electric spindle
Use high-speed and high-rigidity electric spindle to achieve high-speed, high-precision and high-gloss processing.
Labyrinth protection
High speed drilling and tapping machining centers offer better sealing and higher reliability, effectively preventing the entry of cutting fluid and dust.
Screw guide rail
Screw guide rail
Adopts advanced dustproof sealing technology, can be used for graphite dust processing, safe and stable operation for 20,000 kilometers
Technical parameters
| Specifications | unit | VMC650 | VMC850 | VMC855 | VMC1050 | VMC1160 | VMC1370 | VMC1580 |
| Table size | mm | 900x400 | 1000X500 | 1000x550 | 1000x530 | 1200x600 | 1500x700 | 1700x800 |
| Table maximum load | kg | 350 | 500 | 500 | 600 | 1000 | 900 | 1500 |
| X/Y/Z axis travel | mm | 650x400x500 | 800x500x500 | 800x550x550 | 1000x500x600 | 1100x600x600 | 1300x700x700 | 1500x800x700 |
| Distance between spindle centerand column | mm | 476 | 552 | 590 | 580 | 650 | 752 | 871 |
| Distance between spindle endface and worktable surface | mm | 100-600 | 120-670 | 120-670 | 140-740 | 120-720 | 150-850 | 150-900 |
| X/Y/Z Max. feed speed | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 | 8000 | 10000 |
| X/Y/Z Max. Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/30 | 32/32/24 | 32/32/30 | 20/20/15 | 20/20/16 |
| spindle speed | r/min | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 |
| spindle taper | type | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT50 |
| Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18 |
| X/Y/Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 4/4/5 | 4/4/5 | 4.5/4.5/4.5 |
| X/Y/Z motor connection | Direct | Direct | Direct | Direct | Direct | Direct | Direct | |
| X/Y/Z Guide way type | Line rail | Line rail | Line rail | Line rail | third line | Two lines and one hard line | Two lines and one hard line | |
| T slot | mm | 3-18x125 | 5-18x90 | 5-18x90 | 5-18x90 | 5-18x100 | 5-18x145 | 5-22x145 |
| Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 | ±0.005 | ±0.005 | ±0.005 |
| Tool magazine | Hat type/disc type | Hat type/disc type | disc type | disc type | disc type | disc type | disc type | |
| Tool capacity | 16T/16T | 24T | 24T | 24T | 24T | 24T | 24T | |
| Maximum tool weight | kg | 7 | 8 | 8 | 8 | 8 | 8 | 15 |
| Max. tool length | mm | 250/300 | 250/300 | 300 | 250/300 | 300 | 300 | 300 |
| Electric capacity | kVA | 10 | 15 | 15 | 15 | 18 | 22 | 30 |
| Machine dimension(LxWxH) | mm | 2300x2000x2300 | 2600x2380x2700 | 2600x2380x2700 | 3200x2420x2400 | 3100x2490x2380 | 3600x3000x2700 | 4260x3545x3200 |
| Net. weight (about) | kg | 4500 | 5000 | 5000 | 6000 | 7000 | 11000 | 12000 |
Configuration
Standard
● GSK CNC system
● Three axes use Taiwan guide rails
● Tool magazine uses servo ATC tool changer or dual servo
● Fully enclosed processing area
Optional
● CNC system FANUC, SIEMENS, HNC
● Three-axis HEIDENHAIN linear scale
● Fourth axis motor, amplifier
● Automation cell with articulated arm robot
● Automation cell with truss manipulator
● Chain plate chip conveyor (including hopper)
● Scraper type chip conveyor (including hopper)

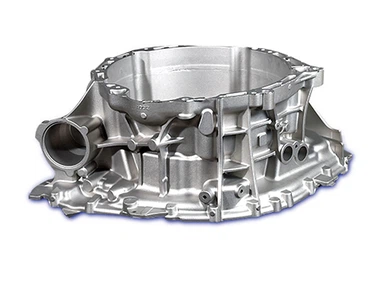

Applicable machining parts
Customer visits
Certificate
Shandong Sunshine Machinery Co., Ltd. has developed year by year and improved its management. Our company has now become a comprehensive technology enterprise integrating scientific research, design, manufacturing and sales. At the same time, it integrates many years of manufacturing experience of many domestic and foreign machine tool manufacturers, absorbs advanced scientific research results of the same industry at home and abroad, and grows into a leading domestic professional manufacturer of CNC machine tools.
We have a group of high-quality CNC equipment production and manufacturing teams, specializing in the production and manufacturing of vertical machining centers, horizontal machining centers, five-axis machining centers, CNC vertical lathes, hydraulic presses, sawing machines and other mechanical equipment, which can be widely used in precision mold manufacturing, automobiles, electronics, communications, aviation, aerospace, military industry and other fields. The company's products are exported to many countries and regions such as Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa and other countries.
01
High Quality
High quality
Comprehensive factory strength supports all types of CNC lathes and has the ability to develop and manufacture CNC lathes
02
Advanced Equipment
Advanced equipment
Equipped with three-coordinate detection and laser detection equipment to reduce errors and improve accuracy
03
Professional Team
We are a manufacturing enterprise integrating development, research, manufacturing, sales and service, with many years of experience in CNC lathe manufacturing
04
Customized service
We have professional technicians to provide customized solutions to meet customer needs
FAQ
Q: What materials can this high speed drilling and tapping machining center process?
A: It works well with aluminum, steel, copper, zinc alloy, and other common metal parts for drilling, tapping, and light milling.
Q: What's the spindle speed and accuracy?
A: Standard spindle goes up to 15,000–20,000 RPM; positioning accuracy is within 0.005mm for consistent high-quality parts.
Q: Is the machine CE certified?
A: Yes, all our machines meet CE and ISO 9001 standards for safe use in most markets.
Q: How do you pack the machine for overseas shipping?
A: We use anti-rust treatment, foam padding, and sturdy export plywood cases to prevent damage in transit.
Q: Can you customize the machine for special needs?
A: Yes, we can adjust table size, spindle type, tool changer, CNC system, and add automation options to match your workflow.
