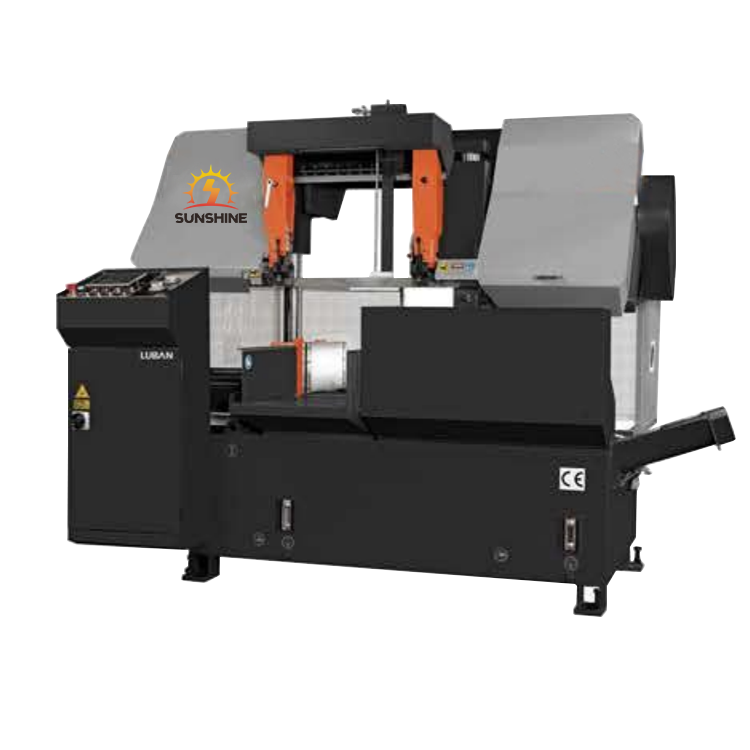

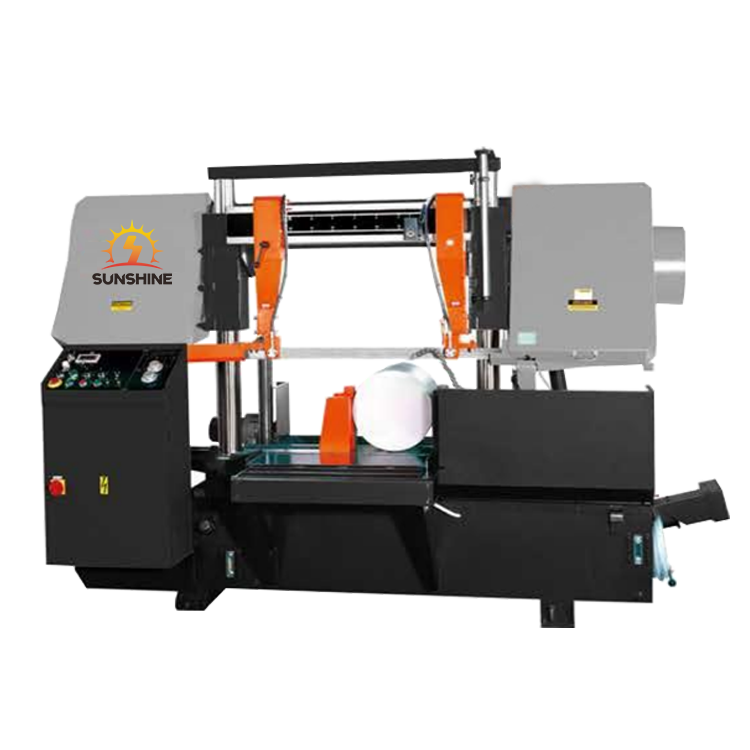

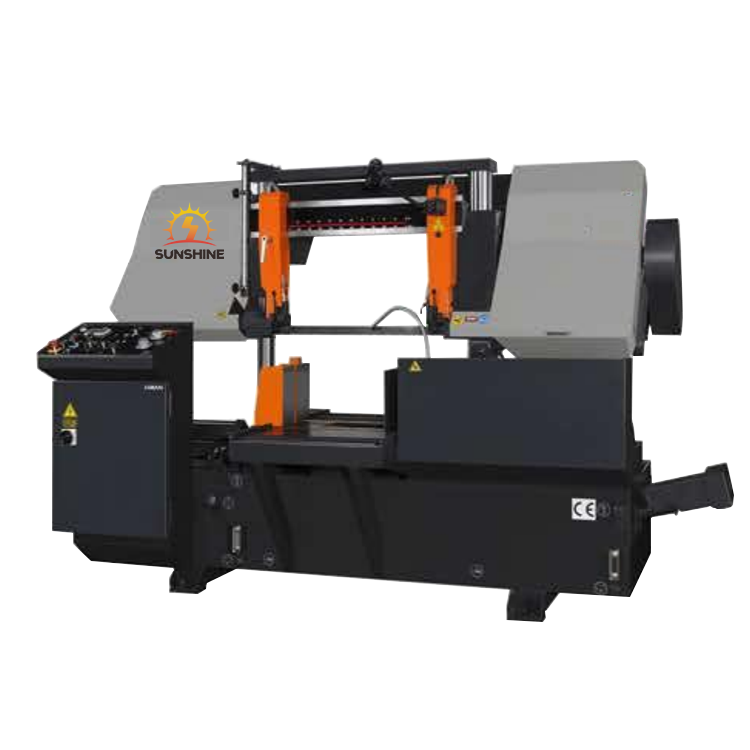

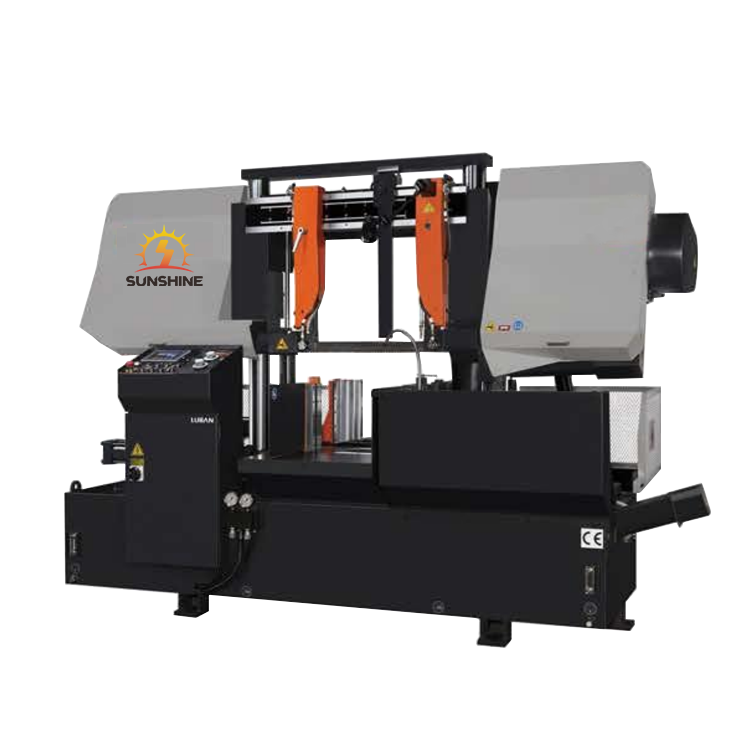

GB4240 Semi Automatic Metal Band Saw
◆ Gantry structure with good rigidity;

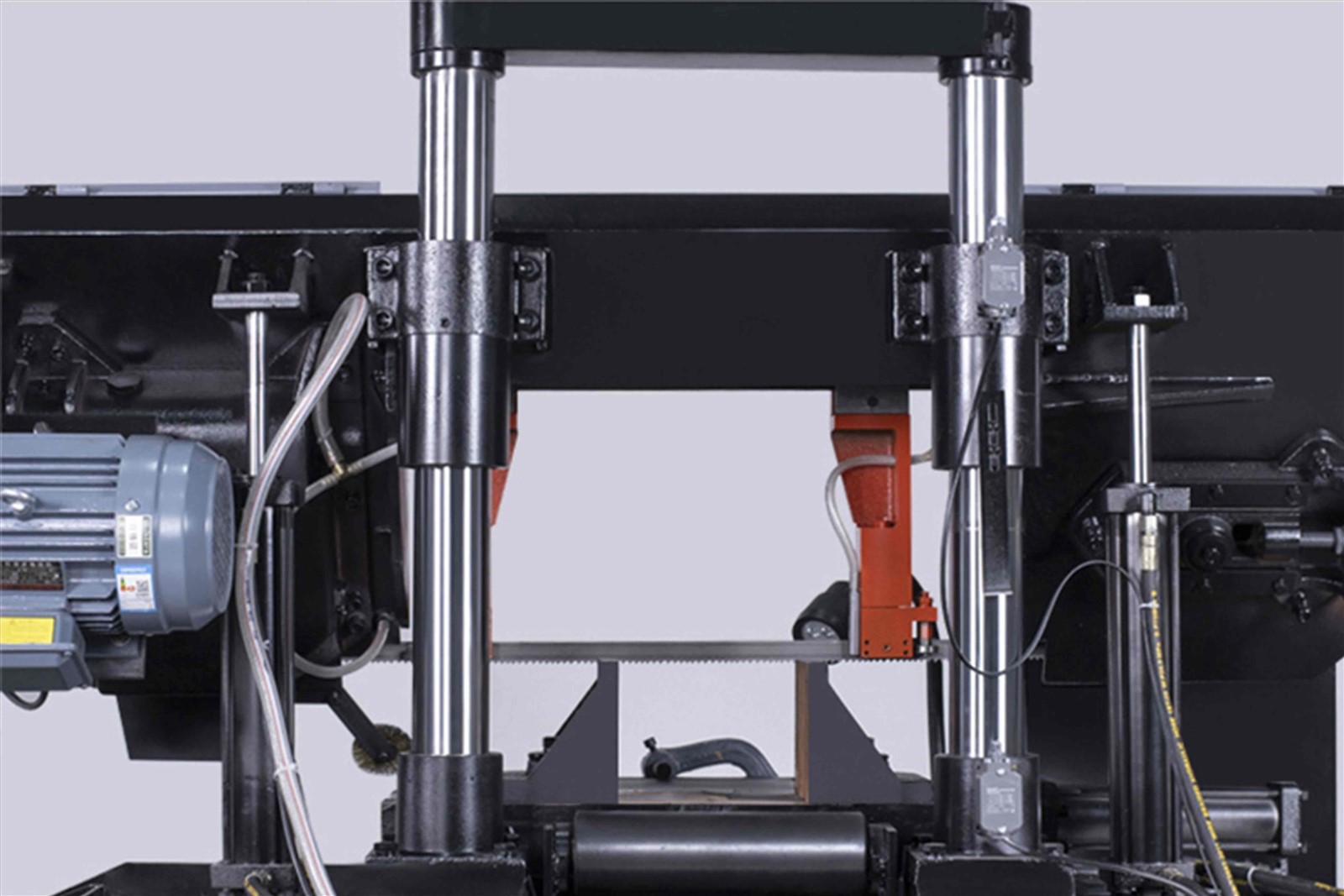

◆ Dual hydraulic cylinder control for smooth feeding;
◆ Motorized feeding roller conveyor and receiving roller conveyor.
The GB4240 semi-automatic metal band saw is designed for cutting various bars and profiles, including mild steel, die steel, low-alloy steel, tool steel, bearing steel, stainless steel, copper, and aluminum. It can be equipped with an optional material feeding rack for automated feeding, making it highly efficient for bar and profile cutting applications.
| Parameter | GB4240 |
| Round material cutting range(mm) | Φ400 |
| Square cutting range (mm) | 400x400 |
| Saw blade linear speed (m/min) | 27,45,69 |
| Saw band specification(mm) | 5000x41x1.3 |
| main motor power(kw) | 4 |
| Workpiece clamping method | Hydraulic |
| Saw band tensioning method | Manual |
| Hydraulic motor power (KW) | 1.5 |
| Cooling pump motor power (KW) | 0.04 |
| size(mm) | 2400x1300x1900 |
| weight (kg) | 1400 |
Configuration Selection
Configuration Standard
● Casting
● Tubing
● electric
● Bearing
● Oil pump
● machine bed sheet
● Hydraulic system
● Motor
Optional
●Screw chip conveyor
●Hydraulic tensioning
●Full protection
● PLC control system
●Inverter/inverter motor
●Semi-protection
●Saw blade
Band Saw Product Features
The GB4240 semi-automatic metal band saw features hydraulic feed control. The feeding speed can be smoothly adjusted infinitely using a dedicated speed control valve;
The band saw is equipped with a high-power worm gear reducer, providing strong power, high reliability, and the ability to withstand long-term operation;
The lifting guide of the metal band saw uses a rolling linear guide pair, ensuring high motion accuracy;

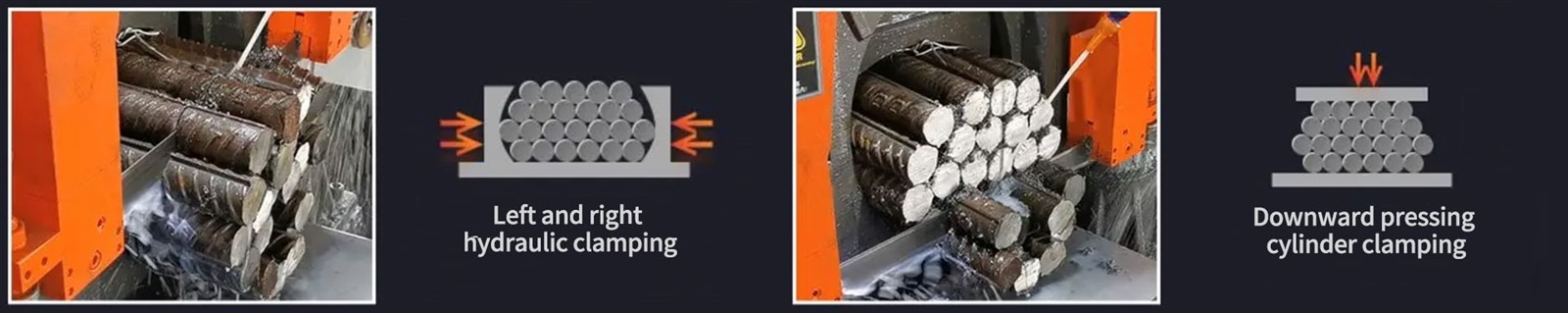

Workpiece clamping uses hydraulic clamping, with optional double clamping;

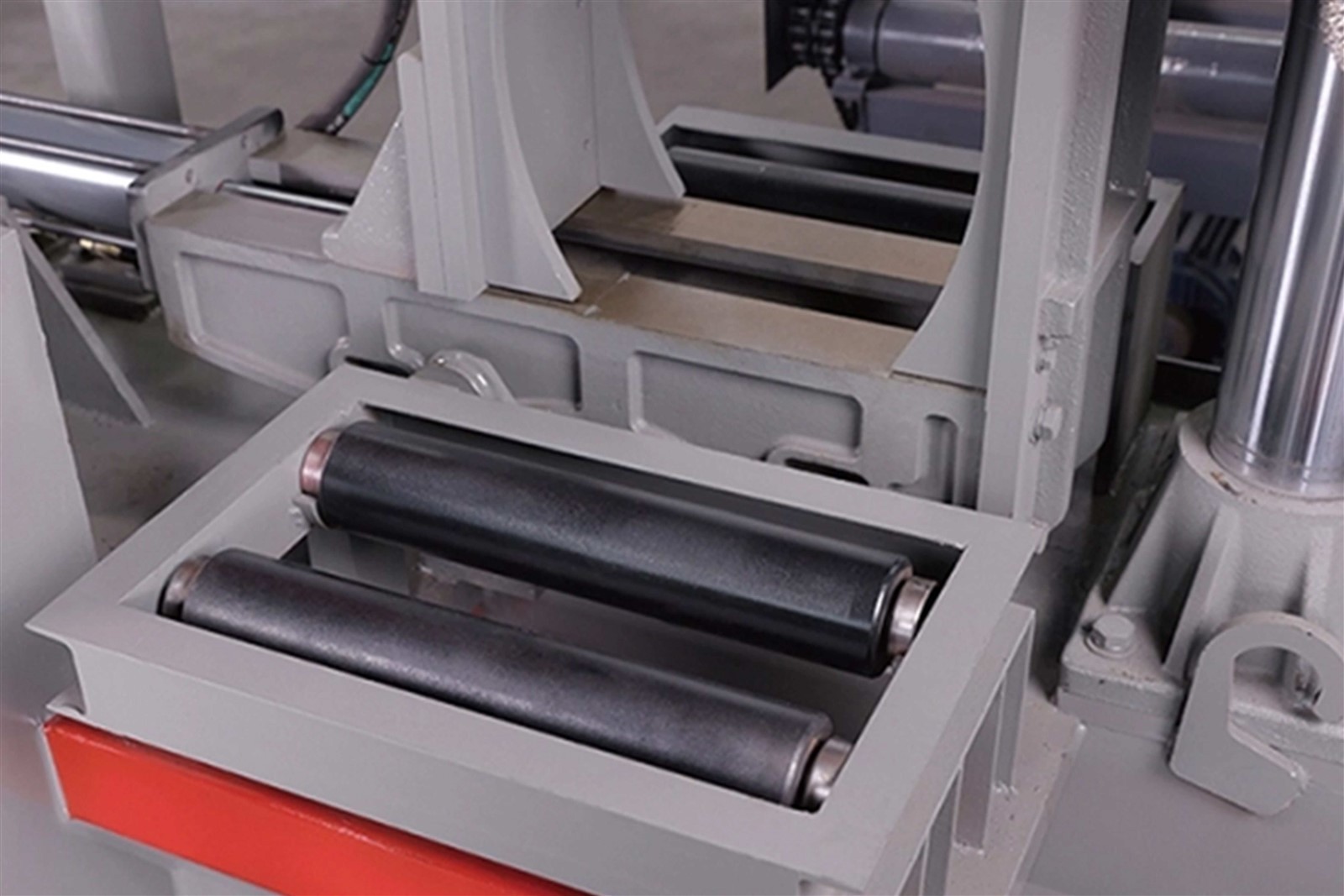

The feeding method uses an electric roller conveyor; the Semi Automatic Metal Band Saw can be equipped with automatic chip removal;
Optional features include hydraulic band tensioning and frequency conversion control of cutting speed (27, 45, 69 m/min);
Semi Automatic Use cases of Metal Band Saw
◆ Applicable Materials: Carbon steel, stainless steel, alloy steel, copper, aluminum and other ferrous & non-ferrous metals.
◆ Applicable Profiles: Round bars, square bars, flat bars, pipes, I-beams, channels and more.
◆ Applicable Industries: Machinery manufacturing, automotive, hardware, mould making, steel structures, metal recycling and other related industries.
Our Services
Regarding Payment: Payment methods for metal band saws are flexible. Generally, a 30% deposit is required to begin production. After production is completed, the remaining 70% is due before shipment.

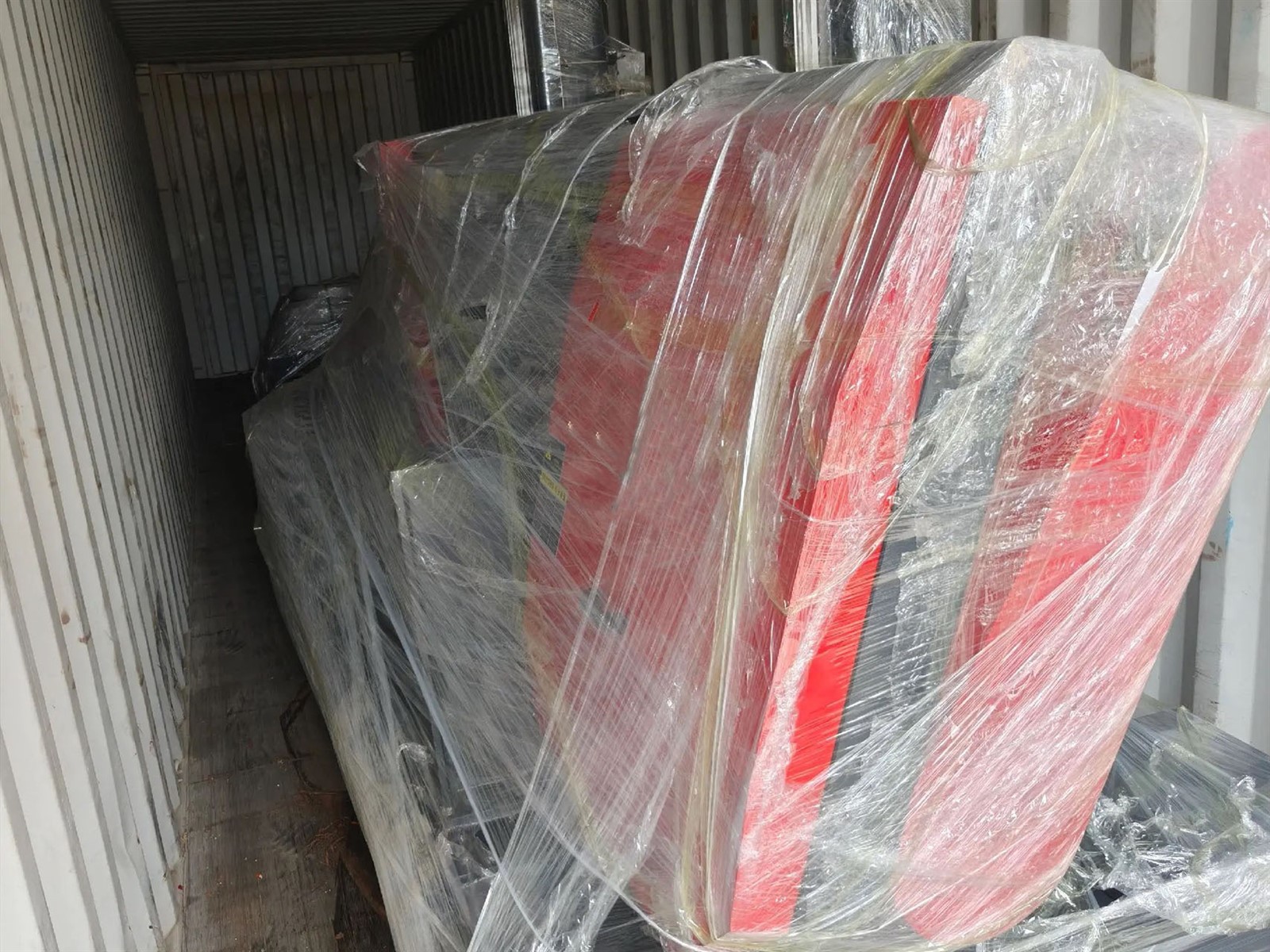

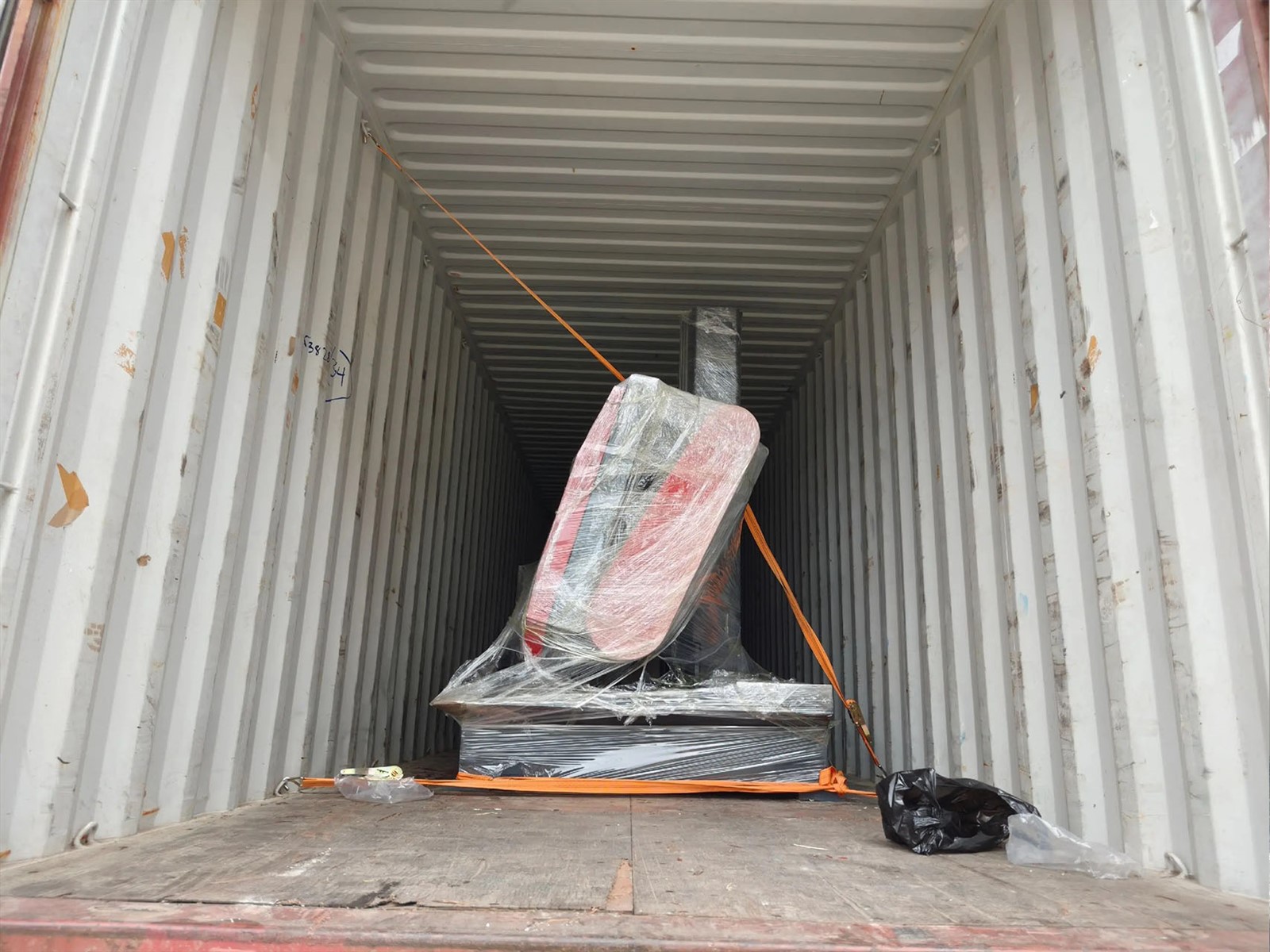

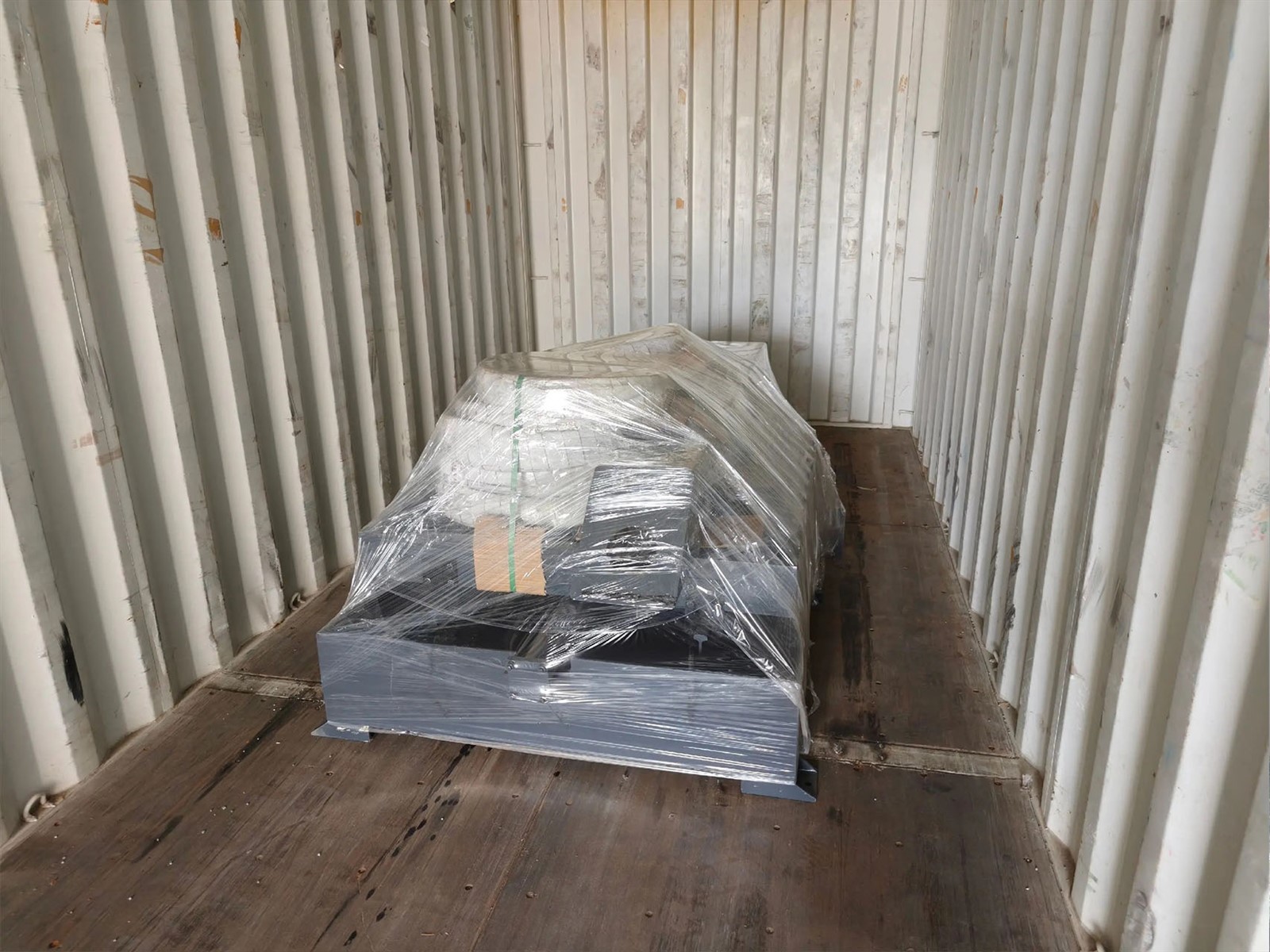

Regarding Transportation: Transportation methods are flexible. Depending on the region and time requirements, sea or land transportation can be chosen. Small parts can also be shipped by air. Packaging options include vacuum packaging or customized wooden crates, depending on the shipping method.
Regarding After-sales Service: Our equipment comes with a 24-month warranty. Damaged parts will be shipped free of charge within the warranty period.
