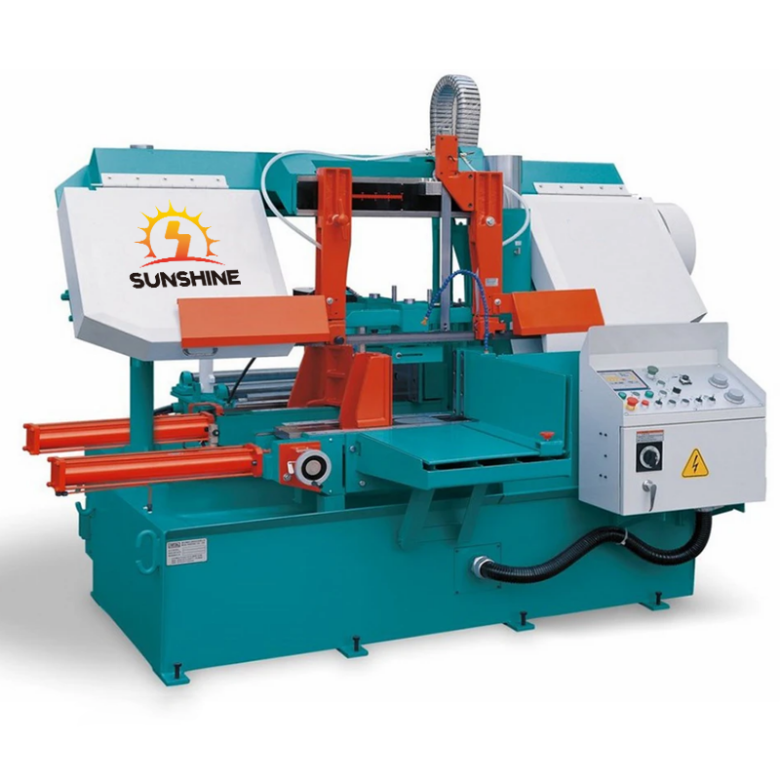

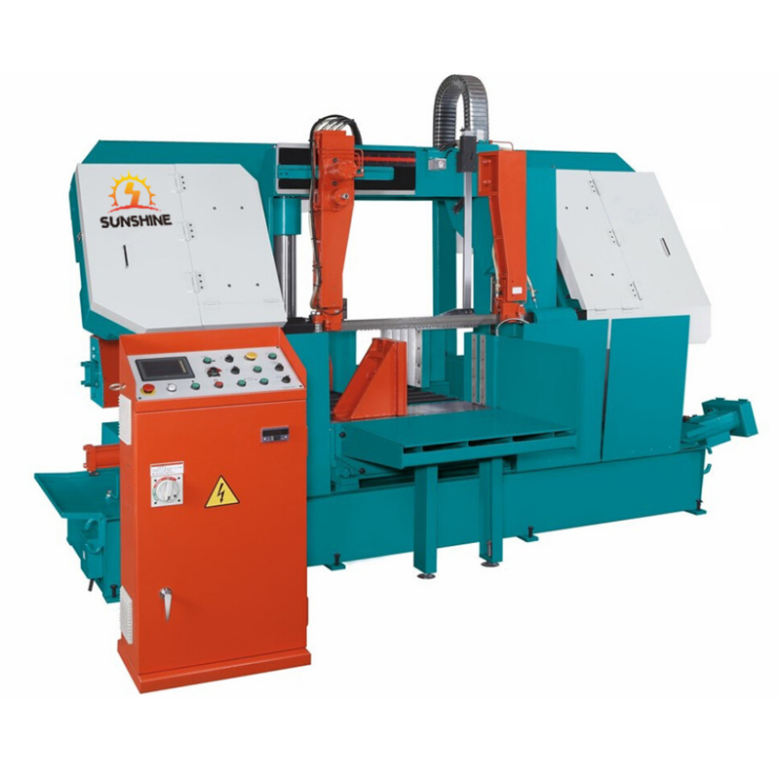

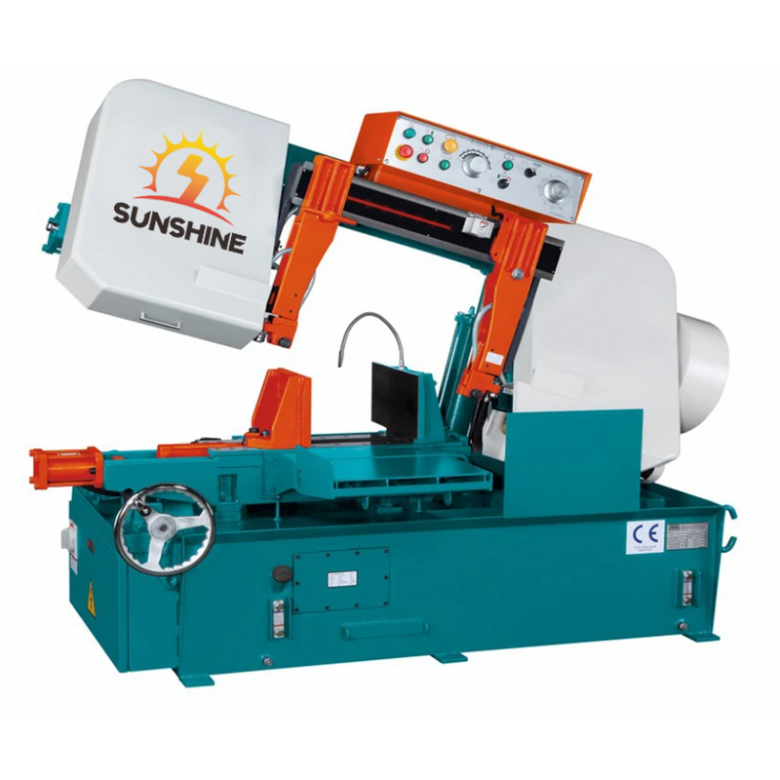

Metal Band Saw For Cutting Bundled Steel Bars
- High reliability
- Convenient feeding
- High stability
- Factory direct sales
Band saw is a machine tool used for sawing various metal materials. It is suitable for processing various metal materials and non-metallic materials including but not limited to: Metal materials: such as carbon structural steel, low alloy steel, high alloy steel, special alloy steel and stainless steel, acid-resistant steel, etc.
There are many types of band saws, including semi-automatic metal band saws, CNC band saws, vertical band saws, etc., which are suitable for production and processing needs of different scales and types.
Band saw machine details and features
The appropriate saw can be selected based on the product to be cut.
Reinforced guide arm crossbeam
Band saw equipped with adjustable guide arm + new guide head
Saw wheel chip removal groove
Easy chip removal from the saw, reducing chip buildup and extending saw blade life.
Detachable upper clamping cylinder
Metal band saws equipped with clamping cylinders can achieve sawing of entire bundles.
Wrap-around jaw design
Specifically designed for clamping entire bundles of rebar on a saw.
Built-in roller sawing table
Reduce friction and improve feeding efficiency.
Button Station
Configuration tool storage box to eliminate clutter; buttons are paired in pairs to improve operational smoothness.
Main technical parameters
| Parameter | GB4235 |
| Round material cutting range(mm) | Φ350 |
| Square cutting range (mm) | 350x350 |
| Saw blade linear speed (m/min) | 27,45,69 |
| Saw band specification(mm) | 4115x34x1.1 |
| main motor power(kw) | 3 |
| Workpiece clamping method | Hydraulic |
| Saw band tensioning method | Manual |
| Hydraulic motor power (KW) | 0.55 |
| Cooling pump motor power (KW) | 0.04 |
| size(mm) | 2000x1100x1600 |
| weight (kg) | 1000 |
Configuration Selection
Configuration Standard
● Electrical
● Bearings
● PLC Control System
● Oil Pump
● Hydraulic System
● Motor
Wide Applications
●Screw chip conveyor
●Hydraulic tensioning
●Full protection
●Inverter/inverter motor
●Semi-protection
●Saw blade
Diversity cutting/one machine for multiple functions
FAQ
Q1: Can it be installed and debugged on site?
A: Yes, we will arrive at the customer's site as soon as possible to install and debug.
Q2: Which countries have your equipment been exported to?
A: Our products are exported to many countries and regions including Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa, etc.
Q3: Are you a manufactuer or trading company?
A: We are manufacturers.
Q4: Are you in stock?
A: It is in stock, depending on which model of equipment you choose.
Q5: Can it be customized for us upon request?
A: Yes, we have a professional technical team to meet your needs.
