Horizontal Machining Center With Large Load Capacity

The horizontal machining center is a high-efficiency, high-precision processing equipment, mainly used for the processing of metal parts.

Send Inquiry

Product Introduction

71d6d580390268565b9459f5c6563d0

Products Description

The horizontal machining center is a high-efficiency, high-precision processing equipment, mainly used for the processing of metal parts. The horizontal machining center has the characteristics of large carrying capacity, can carry larger workpieces, and is suitable for large-scale, heavyweight processing work.

The horizontal machining center adopts advanced CNC technology, is simple and convenient to operate, and can perform high-precision cutting, hole processing, wire cutting and engraving processes on workpieces of various materials. Moreover, its high spindle speed and fast cutting speed can effectively improve the processing efficiency.

The horizontal machining center has a reasonable structural design and high transmission system precision, which ensures the processing accuracy. At the same time, the tool magazine capacity of the horizontal machining center is large, the tool replacement is convenient, and the automatic tool change is fast, which can greatly improve the production efficiency.

The horizontal machining center works stably, has low noise, and has strong applicability and safety. It is not only suitable for automobiles, aviation, molds, electronics and other fields, but also can meet the processing needs of various special requirements.

In short, the horizontal machining center not only has the characteristics of large carrying capacity, high precision, high efficiency and reasonable structure, but also can meet the processing needs of various different fields. It is a processing equipment with high cost performance. Whether you are producing in large quantities or in small batches, you can choose a horizontal machining center for processing to ensure processing quality and efficiency.

Models	HMC1075	HMC1290	HMC1395	HMC1814	Invert T500 倒 T500	Invert T630 倒 T630
Table size (mm)	1300X600	1360X700	1400X700	2000X900	500*500	630*630
Maximum allowable load (Kg)	800	1000	1000	1600	600	950
X-axis travel(mm)	1000	1200	1200	1800	600	1050
Y-axis travel (mm)	750	800	800	1280	360	750
Z-axis travel(mm)	800	700	750	900	450	900
T-slot	5-18-105	5-18-122	5-18-122	5-22-165	-	-
Distance from spindle end face to work table (mm)	115-915	180-880	168-918	200-1100	150-850	-
Distance from spindle center to Z-axis guide surface (mm)	110-860	140-940	260-1060	140-1420	130-650	130-1030
Spindle taper	BT50-150	BT50-190	BT50-190	BT50-190	BT40-150	BT50-190
Spindle speed(r/min)	6000	6000	6000	6000	8000	6000
X/Y/Z rapid movement (m/min)	20/12/20	20/12/20	20/12/20	18/12/18	20/12/20	20/12/20
Machine weight(Kg)	8000	10000	10000	15000	8000	10000

Applicable machining parts

Shaft parts, disc parts, sleeve parts, special-shaped parts, curved parts, etc.

Gearbox

Clutch housing

Engine Block

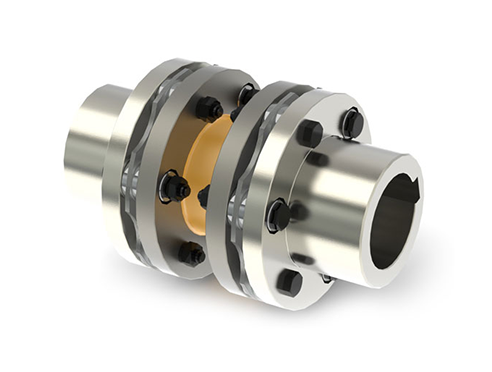

Coupling

Show details

1. Bed, column and worktable: They are the foundation of the horizontal machining center, mainly bearing the static load of the machine tool and the cutting load generated during machining.
2. Spindle system: Driven by the motor and capable of high-speed rotation, it is responsible for transmitting power and rotating the tool to achieve cutting of the workpiece.
3. Feed system: The system usually includes high-performance servo motors, precision mechanical transmission devices and high-precision displacement measuring elements.
4. CNC system: Operators can set and adjust cutting parameters such as cutting speed, feed speed, cutting depth, etc. through the CNC system.
5. Automatic tool changer (ATC): This automatic tool changing function greatly improves machining efficiency and flexibility.
6. Other auxiliary systems
Lubrication system, hydraulic system, pneumatic system, cooling system and chip removal system: These systems work together to maintain the normal operation and efficient machining of the horizontal machining center.
