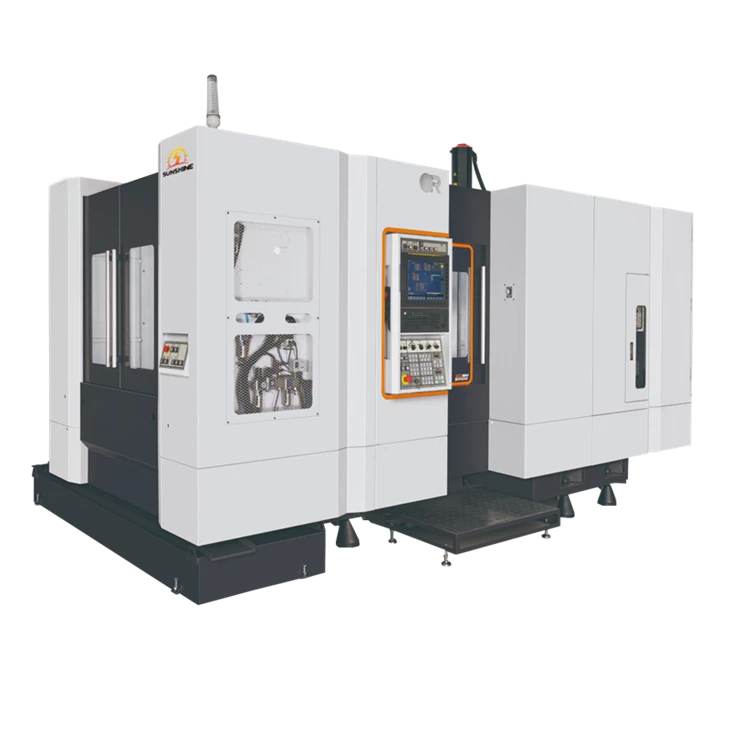

Precision Horizontal CNC Machining Center
A precision horizontal CNC machining center is a high-precision, high-efficiency machine tool typically used for machining various mechanical parts. This equipment features a one-piece cast bed, bed base, and spindle box, ensuring high rigidity, stability, and a long service life. Furthermore, its standard spindle speed, high precision, and responsive design make it a highly efficient and high-quality machining tool.
Key Features
Heavy‑duty cast iron frame with reinforced rib design for stable cutting and minimal vibration
High‑speed spindle with strong torque, ideal for steel, stainless steel, and alloy materials
Automatic tool changer with large capacity, reducing tool change time and improving continuity
Precision linear guides and ball screws ensure positioning accuracy within 0.01mm
User‑friendly CNC system with easy programming, fault alerts, and remote support
Efficient chip conveyor and coolant system for cleaner, safer long‑hour operation
Technical parameters
| Model | HMC1075 | HMC1290 | HMC1395 |
| Table size (mm) | 1300X600 | 1360X700 | 1400X700 |
| Allowable maximum load (Kg) | 800 | 1000 | 1000 |
| X-axis travel (mm) | 1000 | 1200 | 1200 |
| Y-axis travel (mm) | 750 | 800 | 800 |
| Z-axis travel (mm) | 800 | 700 | 750 |
| T-slot | 5-18-105 | 5-18-122 | 5-18-122 |
| Distance from spindle end face to work table (mm) | 115-915 | 180-880 | 168-918 |
| Distance from spindle center to Z-axis rail surface (mm) | 110-860 | 140-940 | 260-1060 |
| Spindle taper | BT50-150 | BT50-190 | BT50-190 |
| Spindle speed (r/min) | 6000 | 6000 | 6000 |
| X/Y/Z rapid movement (m/min) | 20/12/20 | 20/12/20 | 20/12/20 |
| Machine weight (Kg) | 8000 | 10000 | 10000 |
| Model | HMC1814 | HMCT500 | HMCT630 |
| Table size (mm) | 2000X900 | 500*500 | 630*630 |
| Allowable maximum load (Kg) | 1600 | 600 | 950 |
| X-axis travel (mm) | 1800 | 600 | 1050 |
| Y-axis travel (mm) | 1280 | 360 | 750 |
| Z-axis travel (mm) | 900 | 450 | 900 |
| T-slot | 5-22-165 | - | - |
| Distance from spindle end face to work table (mm) | 200-1100 | 150-850 | - |
| Distance from spindle center to Z-axis rail surface (mm) | 140-1420 | 130-650 | 130-1030 |
| Spindle taper | BT50-190 | BT40-150 | BT50-190 |
| Spindle speed (r/min) | 6000 | 8000 | 6000 |
| X/Y/Z rapid movement (m/min) | 18/12/18 | 20/12/20 | 20/12/20 |
| Machine weight (Kg) | 15000 | 8000 | 10000 |
Production Advantages
The Precision horizontal CNC machining center can machine multiple surfaces in a single setup, reducing handling and clamping errors. It supports four-axis operation and can machine complex contours, cavities, and holes. Stable performance translates to consistent quality in mass production, reducing scrap rates. Its durable construction and ease of maintenance lower long-term operating costs, while its flexible configuration makes it suitable for both small-batch workshops and high-volume production lines.
Packaging & Shipping
Full anti‑rust treatment and protective film for all components
Fumigated wooden crate packing with internal fixing to avoid shock and movement
Clear labeling for machine parts, tools, manuals, and accessories
Sea, air, and land transport options; we handle container loading and basic customs documents
FAQ
Q: Which industries is this Precision horizontal CNC machining center suitable for?
A: It works best for automotive parts, mold bases, hydraulic valves, engine blocks, aviation components, and precision mechanical parts.
Q: What accuracy can you guarantee?
A: Positioning accuracy is within 0.01mm, and repeatability is around 0.005mm based on standard testing.
Q: Do you provide installation and training?
A: Yes, we offer online training on installation, operation, and maintenance.
Q: Can I get a custom pallet or stroke?
A: Yes, we can adjust table size, stroke, spindle speed, and tool changer capacity to your needs.
Q: What kind of control system do you use?
A: We use mainstream systems like Fanuc, Mitsubishi, or Siemens as requested.
