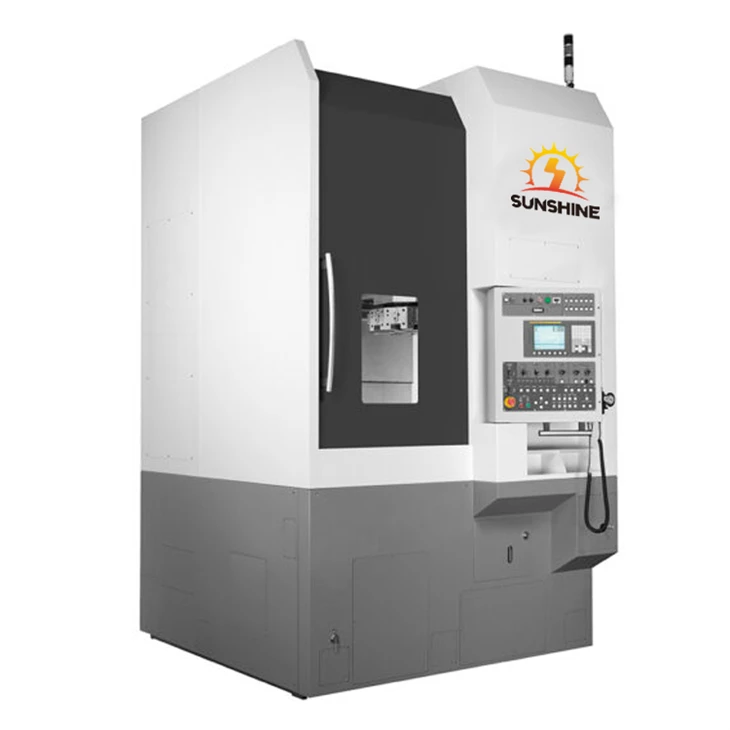

Single Column High Precision CNC Vertical Lathe

The CNC vertical lathe adopts advanced CNC technology to ensure the high precision and high quality of the processed parts. At the same time, due to its superior rigidity, it can effectively resist the cutting force and vibration during the processing, thereby further improving the processing accuracy.

Send Inquiry

Product Introduction

Product Details

The CNC vertical lathe adopts advanced CNC technology to ensure the high precision and high quality of machined parts. At the same time, due to its superior rigidity, the CNC vertical lathe can effectively resist the cutting force and vibration during the machining process, thereby further improving the machining accuracy.

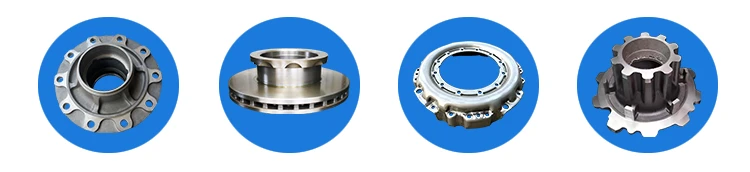

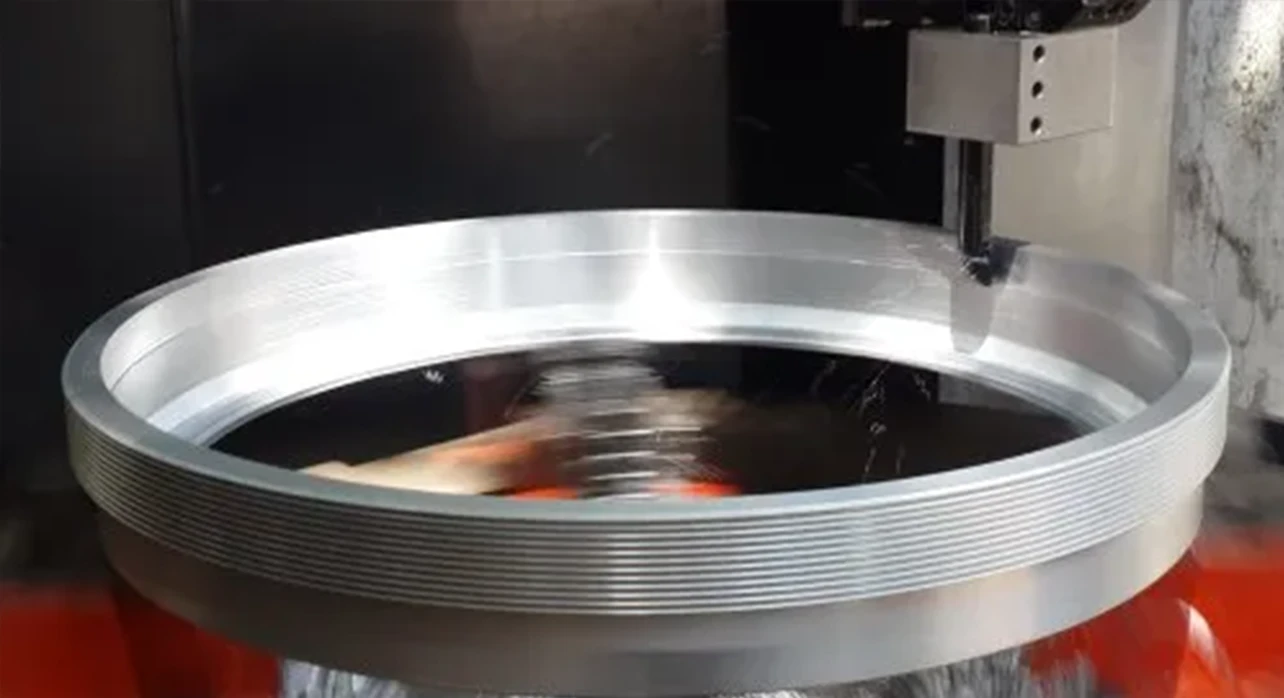

High-precision CNC vertical lathes can process various types of parts, and can complete multiple processes in one clamping, reducing processing time and auxiliary costs. Through simple tool and fixture replacement, high-precision CNC vertical lathes can process different types of parts, greatly improving the use efficiency of high-precision CNC vertical lathes.

product-1600-439

product-750-375

product-750-172

Features of CNC vertical lathe

01/

Due to the deadweight of the workpiece, the CNC vertical lathe can fit the fixture reference surface exactly, so that the workpiece can obtain high-precision and stable processing results.

02/

When the CNC vertical lathe processes large, thin, heavy, and irregularly shaped workpieces, it is easy to process and load and unload.

03/

The CNC vertical lathe can easily and smoothly process irregular workpieces that are difficult to clamp, and the fixture structure is simplified, so its manufacturing cost is reduced.

04/

The CNC vertical lathe has a nearly square high rigidity design of the bottom bed, and the influence of thermal displacement vibration is minimized.

05/

The chip removal angle of the bottom bed of the CNC vertical lathe is increased, and a stainless steel plate is added, which is conducive to better chip removal and prevents thermal deformation of the bed.

06/

The CNC vertical lathe three-dimensional assembly line is ergonomically operable and easy to transport workpieces.

Specification		unit	VTC50	VTC60	VTC70
Stroke	X axis	mm	500	425	700
Stroke	Z axis	mm	0-500	90-690	0-850
Processing capacity	Maximum rotation diameter	mm	φ650	φ650	φ800
	Maximum turning diameter	mm	φ500	φ600	φ700
	Maximum turning height	mm	500	600	850
Spindle	Spindle speed	rpm	100-1000	100-1000	100-800
	Spindle motor power	Kw	15	18.5	22
	Spindle diameter	mm	φ130	φ160	φ160
Hydraulic chuck + tool Turret	Chuck model	Hydraulic chuck
	Chuck diameter	inch	15"	18"	21"
	Turret station		Four workstations/ eight workstations	Four workstations/ eight workstations	Four workstations/ eight workstations
guide	X-axis rolling linear guide		2 pieces, width 45mm	2 pieces, width 45mm	2 pieces, width 45mm
guide	Z axis rolling linear guide		2 pieces, width 45mm	2 pieces, width 45mm	2 pieces, width 55mm
CNC system	Standard configuration		GSK	GSK	GSK
Cooling system	cooling motor	W	450+750	450+750	750+1.2kw
Cooling system	Pump output	m³/h	4m³/h	4m³/h	4m³/h
Accuracy	Repeatability	mm	±0.003	±0.003	±0.003
	positioning accuracy	mm	±0.06	±0.06	±0.06
	smallest positioning unit	mm	0.001	0.001	0.001
Weight and dimensions	Dimensions (approx.)	mm	2100×2500×2750mm	2200×2050×2910mm	2400×2100×3200mm
Weight and dimensions	Gross weight (approx.)	Kg	5500	7500	8000

You can choose the configuration according to your needs !!

"Contact now"

Standard Configuration

● GSK CNC system
● Taiwan servo turret
● Three-jaw hydraulic chuck
● Taiwan linear guide
● Taiwan ball screw

Optional

● CNC system Fanuc, Siemens, HNC
● Taiwan powered turret
● Manual chuck/four-jaw chuck/special tooling
● Linear guide THK
● Ball screw THK
● Automation accessories Robot/automatic feeding device/automatic door
