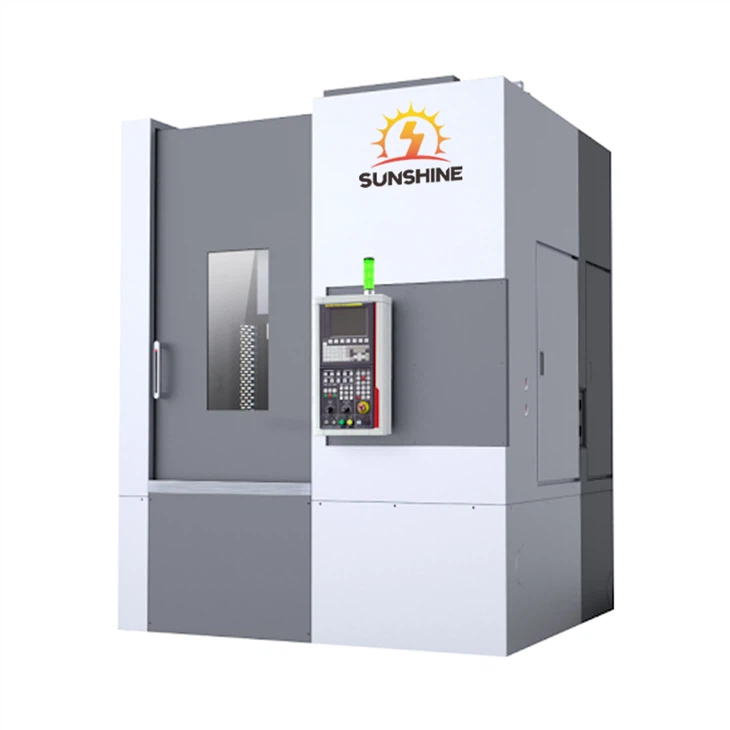

Brake Drum CNC Vertical Lathe
Brake drum CNC vertical lathe is an automatic CNC machining machine tool, mainly used for machining the internal and external cylinder, cone, end face, grooving and chamfering of parts. The machine is especially suitable for rough and finish machining of automobile wheel hub, brake hub, flywheel shell, clutch shell, pressure disc, rim, differential reducer shell, disc and other parts.
The difference between vertical lathe and ordinary lathe is that its spindle is vertical, and because its workbench is in a horizontal position, it is suitable for processing heavy parts with large diameter and short length. Vertical lathe can be used for internal and external cylinder, cone, end plane, groove, chamfering and other processing, workpiece clamping and correction operation is more convenient.
The use of numerical control system can achieve automatic operation and precise control, effectively improve production efficiency and parts processing quality. It can complete a variety of different processing tasks, including internal and external cylinder, cone, end face, grooving and chamfering, etc., with high processing adaptability. Numerical control system can realize high-precision machining control and ensure that the dimensional accuracy and surface quality of parts meet the requirements. Wide range of applications: especially suitable for automotive wheel hub, brake hub, flywheel shell, clutch shell, pressure disc, rim, differential reduction shell, disc and other heavy parts processing needs.
Brake drum CNC vertical lathe is a powerful and highly automated CNC machining machine tool, which is suitable for rough and finish machining of various heavy parts. Its advantages are high-precision machining, multi-functional machining, convenient clamping and calibration operation, which can effectively improve production efficiency and parts processing quality.
| Model | TCK50 | TCK50P | TCK50D |
| Maximum turning diameter of bed (mm) | 500 | 500 | 500 |
| Maximum cutting length (mm) | 500 | 500 | 500 |
| Maximum cutting diameter (mm) | 360 | 500 | 180 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 |
| Spindle hole diameter (mm) | 65 | 65 | 65 |
| Spindle speed range | 50～4500/177 | 50～4500/177 | 50～4500 |
| X-axis travel (mm) | 200 | 280 | 200 |
| Z-axis travel (mm) | 550 | 550 | 550 |
| Tailstock travel (mm) | 450 | 450 | 450 |
| Spindle speed series (r/min) | — | — | Infinitely variable transmission |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 |
| Machine weight (Kg) | 3600 | 3600 | 3800 |
| Model | TCK50G | TCK56-500 | TCK56-1000 | TCK63-1500 |
| Maximum turning diameter of bed (mm) | 500 | 560 | 560 | 720 |
| Maximum cutting length (mm) | 500 | 500 | 1000 | 1500 |
| Maximum cutting diameter (mm) | 360 | 350 | 350 | 620 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 | A2-8 |
| Spindle hole diameter (mm) | 65 | 65 | 65 | 80 |
| Spindle speed range | 50～4500/143 | 50～4500/177 | 50～4500/177 | 50～3500/145 |
| X-axis travel (mm) | 200 | 200 | 200 | 420 |
| Z-axis travel (mm) | 550 | 560 | 1050 | 1550 |
| Tailstock travel (mm) | 450 | 450 | 900 | 1650 |
| Spindle speed series (r/min) | — | — | — | — |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 | 12/16 |
| Machine weight (Kg) | 3600 | 3600 | 4500 | 5000 |
