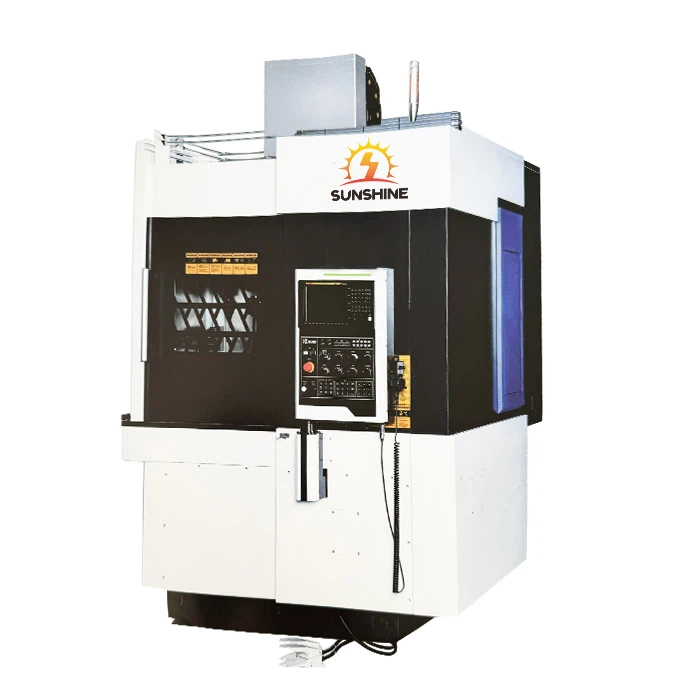

High Precision Automatic Vertical Lathe
High precision automatic vertical lathe is a kind of mechanical equipment which is very suitable for machining small and medium-sized disc and cover parts. It has a high-strength cast iron base and column, so that the machine has good stability and seismic performance, can maintain high precision during the processing. At the same time, this lathe also uses a vertical structure, easy to clamp the workpiece, and occupies a relatively small area.
This lathe adopts oil-water separation structure. This structure can effectively separate the cooling water from the lubricating oil, so that the cooling water remains clean and environmentally friendly, and can be used for a long time. In addition, the lathe is equipped with a separate cooling water tank for easy cleaning and maintenance.
In order to improve the machining accuracy, this lathe adopts a precision and high-stiffness cartridge spindle structure. This structure is not only easy to maintain, but also the fully symmetrical suspension design makes the spindle sleeve more stable.
To enhance the stability of the machine, this lathe is also equipped with a high-power AC spindle motor. This ensures that the machine runs more smoothly during the working process. In addition, the spindle is lubricated with advanced grease, and the fully enclosed design eliminates the need for maintenance.
Saddle and column guide rail are the key components of machine tool, which directly affect the dynamic response performance of machine tool. In order to ensure good dynamic response performance of the machine, this lathe uses a linear rolling guide with heavy load. This kind of guide rail can withstand large loads.
| Model | TCK50 | TCK50P | TCK50D |
| Maximum turning diameter of bed (mm) | 500 | 500 | 500 |
| Maximum cutting length (mm) | 500 | 500 | 500 |
| Maximum cutting diameter (mm) | 360 | 500 | 180 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 |
| Spindle hole diameter (mm) | 65 | 65 | 65 |
| Spindle speed range | 50～4500/177 | 50～4500/177 | 50～4500 |
| X-axis travel (mm) | 200 | 280 | 200 |
| Z-axis travel (mm) | 550 | 550 | 550 |
| Tailstock travel (mm) | 450 | 450 | 450 |
| Spindle speed series (r/min) | — | — | Infinitely variable transmission |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 |
| Machine weight (Kg) | 3600 | 3600 | 3800 |
| Model | TCK50G | TCK56-500 | TCK56-1000 | TCK63-1500 |
| Maximum turning diameter of bed (mm) | 500 | 560 | 560 | 720 |
| Maximum cutting length (mm) | 500 | 500 | 1000 | 1500 |
| Maximum cutting diameter (mm) | 360 | 350 | 350 | 620 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 | A2-8 |
| Spindle hole diameter (mm) | 65 | 65 | 65 | 80 |
| Spindle speed range | 50～4500/143 | 50～4500/177 | 50～4500/177 | 50～3500/145 |
| X-axis travel (mm) | 200 | 200 | 200 | 420 |
| Z-axis travel (mm) | 550 | 560 | 1050 | 1550 |
| Tailstock travel (mm) | 450 | 450 | 900 | 1650 |
| Spindle speed series (r/min) | — | — | — | — |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 | 12/16 |
| Machine weight (Kg) | 3600 | 3600 | 4500 | 5000 |
