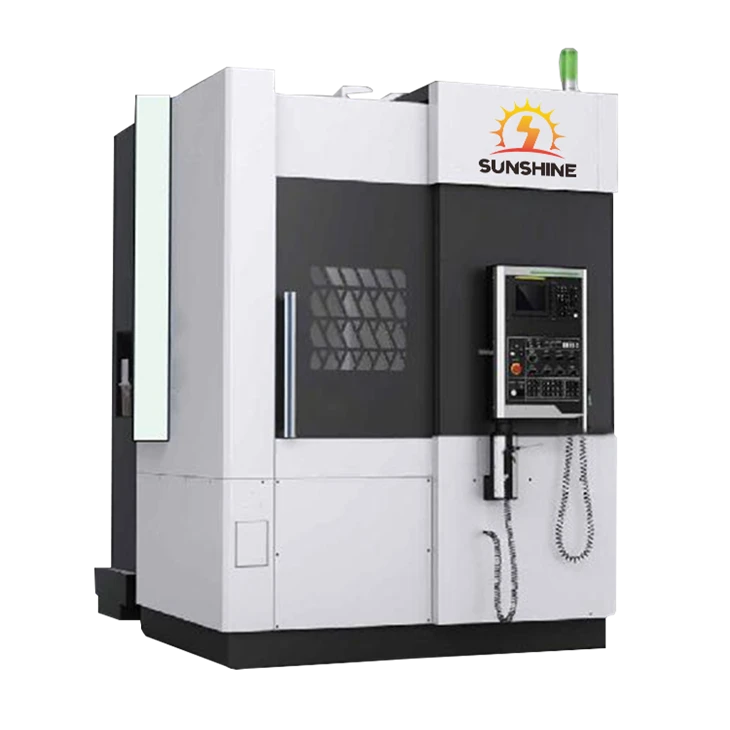

High Precision CNC Milling Machine
CNC milling machine is an advanced mechanical equipment, which can complete multiple tasks at one time, so as to improve the processing efficiency and processing accuracy.
CNC milling machine has a wide range of applications, can be used to process planes, grooves, but also can process a variety of surfaces, gears and so on. When the milling machine is working, the workpiece is installed on the workbench or the indexing accessories, the milling cutter begins to rotate, the rotation is the main movement, and the table or the milling head is fed, so that the required machining surface can be obtained.
CNC milling machine can complete multiple tasks at one time, which greatly improves the processing efficiency and saves a lot of time and human resources. CNC milling machine has higher machining accuracy. Due to the precise control of the CNC system, the motion of the milling cutter is more stable and the machining accuracy is higher. CNC milling machine can process more complex profiles. It can not only mill planes, grooves, gear teeth, threads and spline shafts, but also process a variety of complex surfaces, providing more options for mechanical manufacturing. CNC milling machines play an important role in various fields and have become indispensable equipment in modern manufacturing.
| Model | TCK50 | TCK50P | TCK50D |
| Maximum turning diameter of bed (mm) | 500 | 500 | 500 |
| Maximum cutting length (mm) | 500 | 500 | 500 |
| Maximum cutting diameter (mm) | 360 | 500 | 180 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 |
| Spindle hole diameter (mm) | 65 | 65 | 65 |
| Spindle speed range | 50～4500/177 | 50～4500/177 | 50～4500 |
| X-axis travel (mm) | 200 | 280 | 200 |
| Z-axis travel (mm) | 550 | 550 | 550 |
| Tailstock travel (mm) | 450 | 450 | 450 |
| Spindle speed series (r/min) | — | — | Infinitely variable transmission |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 |
| Machine weight (Kg) | 3600 | 3600 | 3800 |
| Model | TCK50G | TCK56-500 | TCK56-1000 | TCK63-1500 |
| Maximum turning diameter of bed (mm) | 500 | 560 | 560 | 720 |
| Maximum cutting length (mm) | 500 | 500 | 1000 | 1500 |
| Maximum cutting diameter (mm) | 360 | 350 | 350 | 620 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 | A2-8 |
| Spindle hole diameter (mm) | 65 | 65 | 65 | 80 |
| Spindle speed range | 50～4500/143 | 50～4500/177 | 50～4500/177 | 50～3500/145 |
| X-axis travel (mm) | 200 | 200 | 200 | 420 |
| Z-axis travel (mm) | 550 | 560 | 1050 | 1550 |
| Tailstock travel (mm) | 450 | 450 | 900 | 1650 |
| Spindle speed series (r/min) | — | — | — | — |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 | 12/16 |
| Machine weight (Kg) | 3600 | 3600 | 4500 | 5000 |
