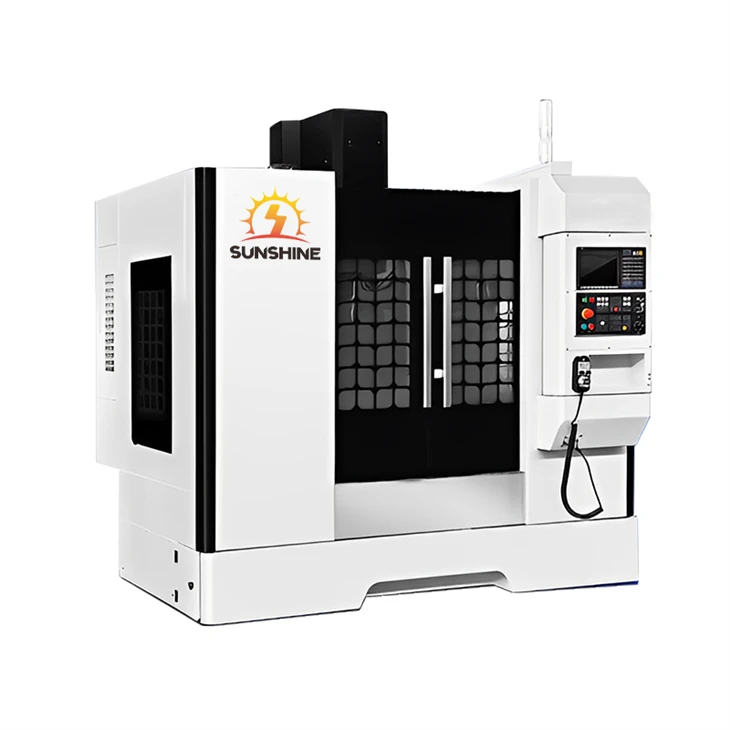

Vertical Drilling and Milling Machining Center

Our vertical drilling and milling machining center is built for real-world production, combining stable rigidity, high precision, and easy operation to handle one‑stop machining of parts in automotive, mold, hardware, and general engineering. It cuts setup time and raises consistency for small‑batch and mass production alike.

Send Inquiry

Product Introduction

A vertical drilling and milling machining center is a highly efficient and precise machining tool. It utilizes a CNC system to control multi-axis motion, enabling simultaneous completion of multiple operations. This machining center is characterized by high speed, high precision, and high production efficiency, and is widely used in modern automated manufacturing.

It can process various materials, such as steel, aluminum, copper, non-ferrous metals, and plastics, and has applications in aerospace, automotive, mold making, parts manufacturing, and engineering machinery industries.

Technical parameters

Specifications	Unit	VMC650	VMC855	VMC1050
Table size	mm	900×400	1000×550	1000×530
Table maximum load	kg	350	500	600
X/Y/Z axis travel	mm	650×400×500	800×550×550	1000×500×600
Distance between spindle center and column	mm	476	590	580
Distance between spindle end face and worktable surface	mm	100-600	120-670	140-740
X/Y/Z Max. feed speed	mm/min	10000	10000	10000
X/Y/Z Max. Rapid traverse	m/min	32/32/30	32/32/30	32/32/24
Spindle speed	r/min	8000	8000	8000
Spindle taper	type	BT40	BT40	BT40
Spindle motor power	kW	5.5/7.5	7.5/11	7.5/11
X/Y/Z axis servo motor power	kW	2.6/2.6/2.8	3.9/3.9/3.6	3.9/3.9/3.6
X/Y/Z motor connection		Direct	Direct	Direct
X/Y/Z Guide way type		Linear Guide	Linear Guide	Linear Guide
T slot	mm	3-18×125	5-18×90	5-18×90
Repeat positioning accuracy	mm	±0.004	±0.004	±0.004
Tool magazine		Conical / Disc	Disc	Disc
Tool capacity		16T/16T	24T	24T
Maximum tool weight	kg	7	8	8
Max. tool length	mm	250/300	300	250/300
Electric capacity	kVA	10	15	15
Machine dimension (L×W×H)	mm	2300×2000×2300	2600×2380×2700	3200×2420×2400
Net. weight (about)	kg	4500	5000	6000

Will It Fit Your Project?

This machine covers drilling, milling, tapping, and boring in one clamping, with standard 3‑axis control and optional 4‑axis. It works smoothly with steel, aluminum, cast iron, and engineering plastics. Whether you make complex molds, valve bodies, or structural parts, this vertical drilling and milling machining center matches your accuracy and efficiency targets.

Production Advantages

Heavy-duty cast frame minimizes vibration for tight tolerances long-term

High-speed spindle and reliable tool changer cut cycle times

Linear guides ensure fast, stable movement and long service life

User-friendly CNC system lowers training time and operating errors

Strict component testing and assembly control ensure consistent quality

Pricing & Cooperation

We offer clear and transparent factory-direct pricing, based on stroke, spindle power, control system, and optional configurations. Minimum order quantity is available upon request; we support trial orders, bulk contracts, and OEM/ODM collaborations. For existing customers, we accept letters of credit. We provide complete customs clearance documentation.
