CNC vertical lathe for metal machining
video

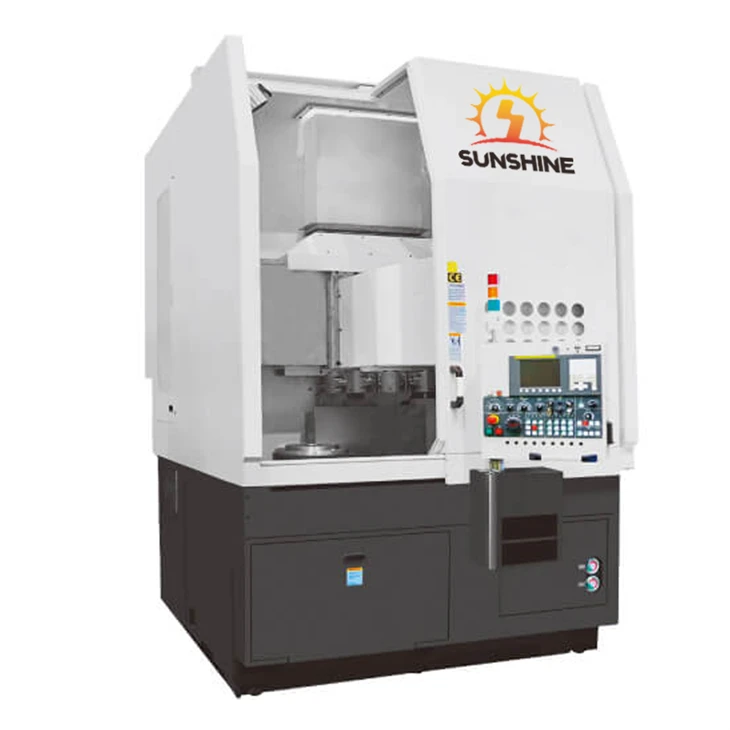

CNC vertical lathe for metal machining

Maximum Swing Diameter: Φ650 mm
Maximum Machining Diameter: Φ600 mm
Maximum Machining Height: 600 mm
X-Axis Travel: 425 mm
Z-Axis Travel: 600 mm
Spindle Speed Range: 100–1000 rpm
This CNC vertical lathe for metal machining is suitable for a range of applications in industries such as aerospace, energy, shipbuilding, and machinery manufacturing.
Send Inquiry
Product Introduction



This CNC vertical lathe is designed for machining external surfaces, end faces, internal bores, steps, and grooves. When selecting this machine for parts such as flanges, brake discs, bearing rings, and other disc- or ring-shaped components, consider not only the workpiece's outer diameter but also the clearance required after clamping, the workpiece height, and the tool's approach and retract paths. The VTC60 has a maximum swing diameter of Φ650 mm, a maximum turning diameter of Φ600 mm, and a maximum machining height of 600 mm. If your workpieces are close to these limits, we recommend submitting drawings before purchase to check fixture dimensions, tool travel, and possible interference during machining.

Workpieces are loaded onto the vertical worktable from above, making it easier to clamp and position large-diameter parts such as wheel hubs, brake discs, bearing rings, and certain valve components. The CNC system allows operators to create machining programs based on part drawings.

Equipment Selection
In addition to checking the maximum machining diameter and height, it is important to verify the available space after the fixture is installed, the tool travel range, and the workpiece positioning method. If the workpiece outer diameter is close to Φ600 mm, additional checks are needed to ensure that the tool turret, chuck, and machine guards do not interfere with one another.

Key Specifications

Specification VTC60 Specification VTC60
X-axis travel 425 mm Z-axis travel 600 mm
Max. swing diameter Φ650 mm Max. turning diameter Φ600 mm
Spindle speed 100–1000 rpm Spindle motor power 18.5 kW
Spindle torque 280 N·m Spindle bearings FAG (Germany)
Front bearing dimensions [Bore x Outer Diameter x Height] φ160×φ240×60 Rear bearing dimensions [Bore x Outer Diameter x Height] φ130×φ200×52
Spindle outer diameter Φ160 mm Reduction ratio 1:2
Chuck 21-inch 3-jaw hydraulic chuck Turret stations Horizontal 8-station
CNC system GSK 980TC3 X/Z-axis motor 18/30 N·m
X-axis linear rolling guides 2 rails, 45 mm wide Z-axis linear rolling guides 2 rails, 55 mm wide
Compared with Horizontal CNC Lathes



Vertical lathes are better suited to large-diameter, heavy disc- and ring-shaped workpieces. The horizontal worktable supports the workpiece and allows it to be loaded from above.

Horizontal lathes are generally better suited to shaft-shaped and long-bar components, as well as workpieces that require horizontal support.

Horizontal CNC Lathe



Product Features and Performance



CNC Vertical Lathe Spindle

This CNC vertical lathe for metal machining is equipped with an 18.5 kW spindle motor with a speed range of 100–1,000 rpm. The spindle speed can be adjusted according to the workpiece diameter, material, and machining operation.
Rough turning and finish turning place different demands on the machine. During rough turning, the depth of cut, feed rate, and amount of material removed all affect the spindle load. Finish turning requires closer attention to tool condition, feed parameters, workpiece rigidity, and thermal expansion, as these factors can affect dimensional accuracy.

This CNC vertical  machine lathe is equipped with a 21-inch hydraulic chuck for holding disc- and ring-shaped workpieces. However, not every workpiece can be clamped directly with a standard setup. Thin-walled parts, irregularly shaped castings, and workpieces with limited clamping surfaces may require custom soft jaws, dedicated fixtures, or additional positioning devices.

Customized Fixtures for CNC Vertical Lathes
CNC Vertical Lathe Turret Selection

The standard configuration of this CNC vertical lathe for metal machining includes a horizontal eight-station hydraulic turret. It provides multiple tool positions for operations such as external turning, internal boring, and grooving, as well as machining features of different sizes. If the workpieces require drilling, tapping, or milling, a live-tool turret is required.

This CNC vertical lathe uses two 45 mm-wide rolling linear guideways on the X-axis and two 55 mm-wide rolling linear guideways on the Z-axis. During machining, the X-axis controls the tool's lateral movement and the workpiece diameter, while the Z-axis moves the tool along the spindle axis for facing, external turning, and machining at different axial positions.

CNC Vertical Lathe Linear Guideways

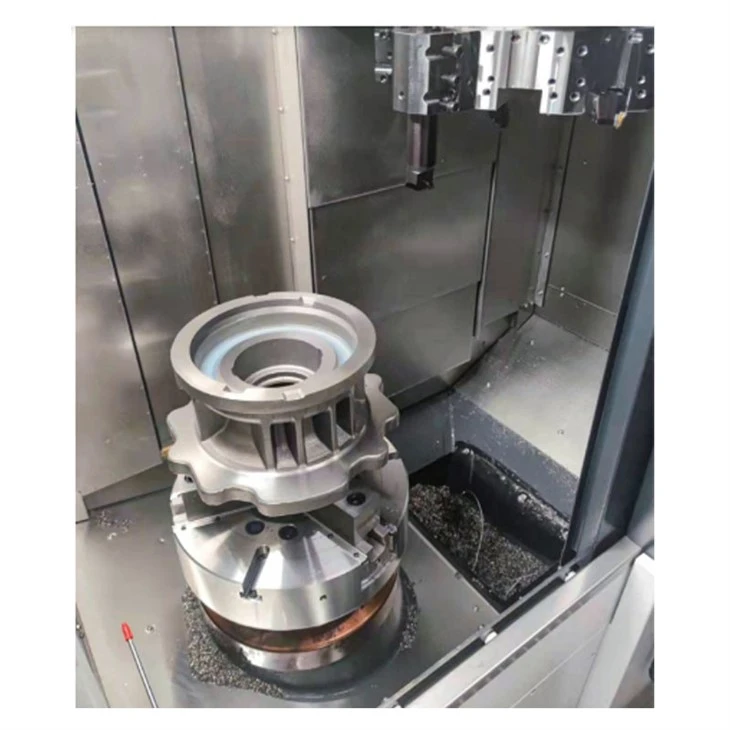

CNC Vertical Lathe Machining Examples

CNC vertical lathes can perform both roughing and finishing on internal and external cylindrical surfaces, end faces, conical surfaces, arcs, and threads. With an optional live-tool turret, the machine can also perform drilling, milling, and tapping operations.

CNC Vertical Lathe machine Machining Examples



Key Application Industries

Automotive brake discs and selected brake drum castings

Wheel hubs and related metal components

Bearing housings, support rings, and other rotating components

Disc-shaped components for construction and heavy-duty vehicles

CNC Vertical Lathe for Brake Disc Machining

Brake Disc

Brake drum machining

Brake Drum

CNC Vertical Lathe Machining of Motor Housings

Motor Housing

CNC Lathe for Traction Sheave Machining

Traction Sheave

What Materials Can Be Machined on CNC Vertical Lathes?

1. Cast Iron
Common grades: HT200, HT250, HT300, QT400, QT500, etc.
Gray cast iron generally offers good machinability, although graphite and sand inclusions can contribute to tool wear.

2. Carbon Steel
Common grades: Q235, 45#, S235, C45, etc.
Ordinary carbon steel is generally straightforward to machine. However, if a workpiece has undergone quenching and tempering or surface hardening, the cutting tools and machining parameters should be selected according to the material's hardness.

3. Stainless Steel
Common grades: 304, 316, 410, 420, etc.
Some stainless steel grades are prone to work hardening, making tool heat resistance, cutting parameters, and cooling conditions important considerations.

About Us

CNC Machine Tool CE Certification

Certifications



We are a specialized manufacturer dedicated to the R&D and production of heavy-duty CNC vertical metal-cutting machine tools. With years of experience in vertical lathe manufacturing, we serve machining clients worldwide. Our company holds certifications such as the EU CE safety mark, and our products are regularly exported to regions including Europe, Southeast Asia, the Middle East, and South America.

Export of CNC Lathes

We support containerized shipping and assist customers with equipment loading and securing. The necessary packing lists and certificates of origin can also be provided. For overseas customers, we offer remote guidance for installation and commissioning, warranty support, and on-site machine inspections.

Our CNC metal-cutting machine tools serve industries such as wind power, automotive manufacturing, and construction machinery.
