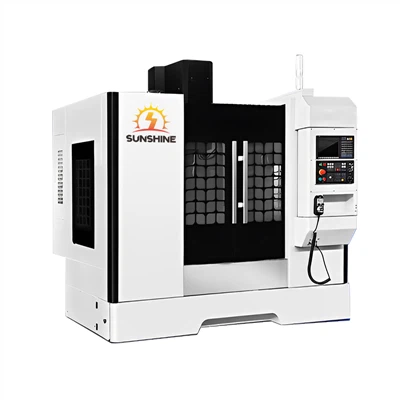

Vertical machining center processes shell and other parts

Vertical machining centers are widely used in the processing of plate, plate and shell parts.

Send Inquiry

Product Introduction

1. The vertical machining center has a full range of specifications. You can choose the appropriate model according to the workpiece you are working on, or you can customize it according to your needs.
2. The vertical machining center is controlled by a CNC system. The standard configuration is the GSK CNC system. FANUC, SIEMENS, and HNC CNC systems can be selected according to customer needs.
3. The three-axis motor of the vertical machining center is directly connected to the high-precision ball screw. The ball screw is pre-stretched and installed to further reduce the influence of the screw deflection, improve the transmission rigidity and positioning accuracy, and the repeat positioning accuracy can reach ±0.004.

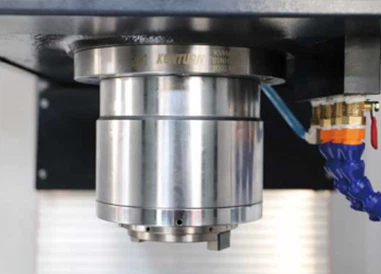

4. The vertical machining center is equipped with a high-speed spindle unit (spindle speed up to 8000) and an automatic tool changing system (optional bamboo hat and disc type). The third and fourth axes can be added. Multi-axis linkage makes complex surface processing easier, and multi-faceted processing can be completed at one time.

Specifications	unit	VMC650	VMC850	VMC855	VMC1050	VMC1160	VMC1370
Table size	mm	900x400	1000X500	1000x550	1000x530	1200x600	1500x700
Table maximum load	kg	350	500	500	600	1000	900
X/Y/Z axis travel	mm	650x400x500	800x500x500	800x550x550	1000x500x600	1100x600x600	1300x700x700
Distance between spindle centerand column	mm	476	552	590	580	650	752
Distance between spindle endface and worktable surface	mm	100-600	120-670	120-670	140-740	120-720	150-850
X/Y/Z Max. feed speed	mm/min	10000	10000	10000	10000	10000	8000
X/Y/Z Max. Rapid traverse	m/min	32/32/30	32/32/30	32/32/30	32/32/24	32/32/30	20/20/15
spindle speed	r/min	8000	8000	8000	8000	8000	8000
spindle taper	type	BT40	BT40	BT40	BT40	BT40	BT40
Spindle motor power	kW	5.5/7.5	7.5/11	7.5/11	7.5/11	11/15	11/15
X/Y/Z axis servo motor power	kW	2.6/2.6/2.8	3.9/3.9/3.6	3.9/3.9/3.6	3.9/3.9/3.6	4/4/5	4/4/5
X/Y/Z motor connection		Direct	Direct	Direct	Direct	Direct	Direct
X/Y/Z Guide way type		Line rail	Line rail	Line rail	Line rail	third line	Two lines and one hard line
T slot	mm	3-18x125	5-18x90	5-18x90	5-18x90	5-18x100	5-18x145
Repeat positioning accuracy	mm	±0.004	±0.004	±0.004	±0.004	±0.005	±0.005
Tool magazine		Hat type/disc type	Hat type/disc type	disc type	disc type	disc type	disc type
Tool capacity		16T/16T	24T	24T	24T	24T	24T
Maximum tool weight	kg	7	8	8	8	8	8
Max. tool length	mm	250/300	250/300	300	250/300	300	300
Electric capacity	kVA	10	15	15	15	18	22
Machine dimension(LxWxH)	mm	2300x2000x2300	2600x2380x2700	2600x2380x2700	3200x2420x2400	3100x2490x2380	3600x3000x2700
Net. weight (about)	kg	4500	5000	5000	6000	7000	11000

Product feature and application

Vertical machining centers are widely used in the processing of plate, disc and shell parts.

1. For plate and disc parts, this usually involves milling, cutting or engraving the surface.

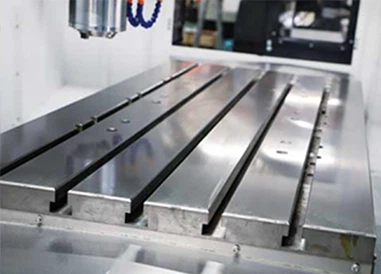

2. Large worktable: For plate parts, a larger worktable is required to accommodate the entire workpiece. Vertical machining centers can adjust the worktable according to the size of the workpiece to accommodate parts of different sizes.

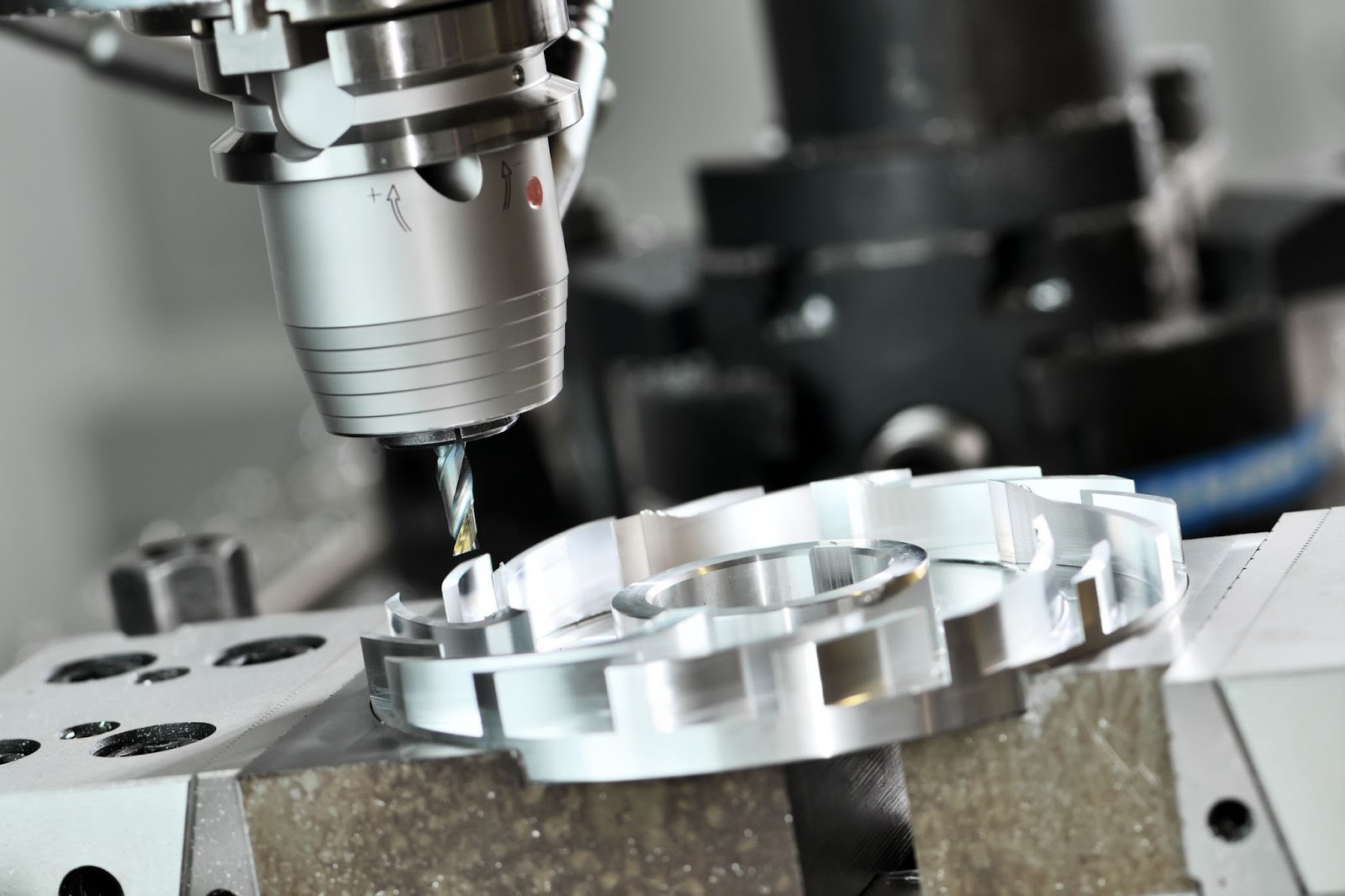

3. Hole machining and thread machining: For shell parts, hole machining and thread machining may be required.
4. Multi-axis control: If the part has a complex surface or contour, the tool can be controlled to move at different angles and directions, making it easier to process parts with complex shapes with high precision.
