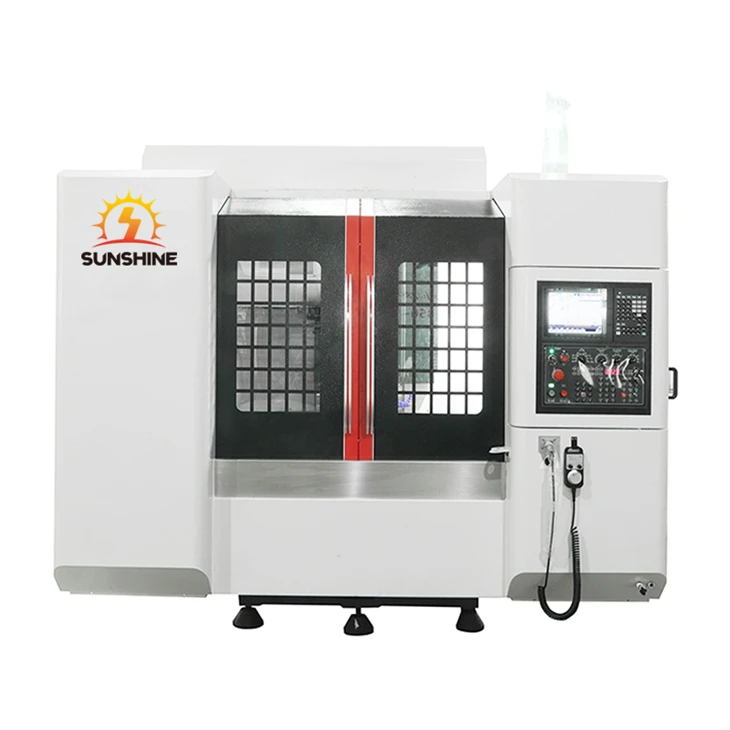

CNC Milling Machine
Our CNC milling machine is a versatile and reliable metalworking tool built for precision machining across industrial production and custom fabrication. It combines automated control with robust mechanical design, handling everything from simple flat surface milling to complex 3D contouring on metals, plastics, and composite materials. Easy to operate with intuitive controls and adaptable to different workpiece sizes, it's a go-to solution for small workshops and large manufacturing plants alike, delivering consistent results and reducing manual labor for all your machining needs.
Technical Parameters
| Specifications | unit | VMC650 | VMC850 | VMC855 | VMC1050 | VMC1160 | VMC1370 | VMC1580 |
| Table size | mm | 900x400 | 1000X500 | 1000x550 | 1000x530 | 1200x600 | 1500x700 | 1700x800 |
| Table maximum load | kg | 350 | 500 | 500 | 600 | 1000 | 900 | 1500 |
| X/Y/Z axis travel | mm | 650x400x500 | 800x500x500 | 800x550x550 | 1000x500x600 | 1100x600x600 | 1300x700x700 | 1500x800x700 |
| Distance between spindle centerand column | mm | 476 | 552 | 590 | 580 | 650 | 752 | 871 |
| Distance between spindle endface and worktable surface | mm | 100-600 | 120-670 | 120-670 | 140-740 | 120-720 | 150-850 | 150-900 |
| X/Y/Z Max. feed speed | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 | 8000 | 10000 |
| X/Y/Z Max. Rapid traverse | m/min | 32/32/30 | 32/32/30 | 32/32/30 | 32/32/24 | 32/32/30 | 20/20/15 | 20/20/16 |
| spindle speed | r/min | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 |
| spindle taper | type | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | BT50 |
| Spindle motor power | kW | 5.5/7.5 | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 15/18 |
| X/Y/Z axis servo motor power | kW | 2.6/2.6/2.8 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 3.9/3.9/3.6 | 4/4/5 | 4/4/5 | 4.5/4.5/4.5 |
| X/Y/Z motor connection | Direct | Direct | Direct | Direct | Direct | Direct | Direct | |
| X/Y/Z Guide way type | Line rail | Line rail | Line rail | Line rail | third line | Two lines and one hard line | Two lines and one hard line | |
| T slot | mm | 3-18x125 | 5-18x90 | 5-18x90 | 5-18x90 | 5-18x100 | 5-18x145 | 5-22x145 |
| Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 | ±0.005 | ±0.005 | ±0.005 |
| Tool magazine | Hat type/disc type | Hat type/disc type | disc type | disc type | disc type | disc type | disc type | |
| Tool capacity | 16T/16T | 24T | 24T | 24T | 24T | 24T | 24T | |
| Maximum tool weight | kg | 7 | 8 | 8 | 8 | 8 | 8 | 15 |
| Max. tool length | mm | 250/300 | 250/300 | 300 | 250/300 | 300 | 300 | 300 |
| Electric capacity | kVA | 10 | 15 | 15 | 15 | 18 | 22 | 30 |
| Machine dimension(LxWxH) | mm | 2300x2000x2300 | 2600x2380x2700 | 2600x2380x2700 | 3200x2420x2400 | 3100x2490x2380 | 3600x3000x2700 | 4260x3545x3200 |
| Net. weight (about) | kg | 4500 | 5000 | 5000 | 6000 | 7000 | 11000 | 12000 |
Product Advantages
High precision machining with minimal tolerance for accurate, repeatable parts
Fast operation speed to boost production efficiency and cut processing time
Sturdy frame and durable components for long-term, low-failure use
Flexible tool changing system to switch between machining tasks quickly
Energy-saving design that lowers daily operational costs
User-friendly interface, suitable for both skilled technicians and new operators
Craft & Technology
Equipped with advanced CNC servo control technology, the machine ensures smooth axis movement and precise positioning. Its high-rigidity spindle delivers stable rotation at different speeds, matching various machining requirements. The automatic lubrication system maintains component performance and extends service life, while the enclosed protective structure reduces chip splatter and improves workplace safety. All core parts are precision-machined and tested to meet industrial quality standards, guaranteeing stable performance in continuous operation.
Application Fields
Widely used in automotive and auto parts manufacturing, aerospace component processing, mold and die making, electronic equipment production, and hardware fabrication. It's also ideal for custom mechanical part machining in engineering and construction industries, adapting to steel, aluminum, copper, plastic, and other common machining materials.
Packaging & Shipping
Each CNC milling machine is wrapped in anti-scratch film and foam for inner protection, then placed in a thick, reinforced wooden crate to prevent collision and damage during transit. We add shock-absorbing pads at key stress points and seal the crate with metal fasteners for extra stability. For shipping, we cooperate with reliable international logistics providers, offer sea, air, and land transport options, and provide complete customs clearance documents to ensure safe, on-time delivery to your location worldwide.
SERVICES
Professional pre-sales consultation to recommend suitable models based on your production needs
01
Free online installation and commissioning by our experienced technicians
02
Comprehensive operator training to master machine operation and basic maintenance
03
Timely after-sales support with 24/7 online service for technical problems
04
Customization service for machine specifications to fit your production line layout
05
FAQ
Q: What materials can this CNC milling machine process?
A: It can machine steel, aluminum, copper, plastic, composite materials, and non-ferrous metals effectively.
Q: Does the machine come with a control system and software?
A: Yes, it's equipped with a standard industrial CNC control system and pre-installed machining software, ready for use.
Q: How long does installation and commissioning take?
A: On-site installation and commissioning usually take 2-3 days, depending on your workshop conditions.
Q: Do you provide operator training?
A: Yes, free online training is included, covering basic operation, programming, and daily maintenance.
Q: Can I customize the machine's working table size?
A: Yes, we provide customization for working table size, spindle speed, and other specifications as per your needs.
Q: Is technical support available after sales?
A: Absolutely, we have 24/7 online technical support to solve your problems in a timely manner.
