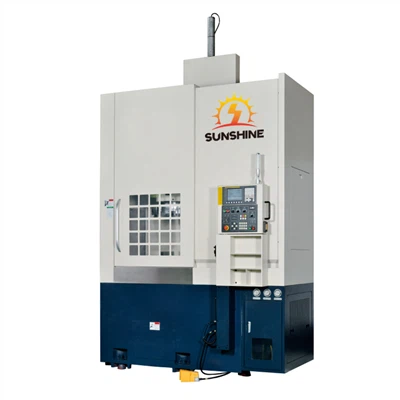

VTC50 CNC Vertical Lathe Made in China

VTC50 CNC Vertical Lathe Made in China

Introduction VTC50 CNC Vertical Lathe is a high-performance machine tool that can efficiently process large workpieces, specifically designed for heavy-duty cutting operations in the automotive, aerospace, and energy industries. Its advanced features and performance make it one of the most widely used and versatile machine tools in the global manufacturing industry.
Send Inquiry
Product Introduction

Introduction

VTC50 CNC Vertical Lathe is a high-performance machine tool that can efficiently process large workpieces, specifically designed for heavy-duty cutting operations in the automotive, aerospace, and energy industries. Its advanced features and performance make it one of the most widely used and versatile machine tools in the global manufacturing industry.

Advantages

Precision Performance: VTC50 CNC Vertical Lathe exhibits a high level of precision performance. Its capability to cut and shape large workpieces with extreme accuracy and consistency ensures that the final product is of high quality. The machine tool is equipped with an excellent accuracy feedback system, which ensures that the workpiece is accurately processed even when subjected to high cutting forces.

Cost-Effective Production: VTC50 CNC Vertical Lathe is a cost-effective production machine. It is designed to perform multiple operations on a single workpiece. This reduces the production time while ensuring that the final product meets quality standards. Moreover, it minimizes the cost of maintenance due to its durable and rugged design.

Easy to Operate: VTC50 CNC Vertical Lathe is straightforward to operate. The machine tool has user-friendly controls, which simplifies the operation process. Moreover, it requires minimal human intervention, which minimizes the chances of making mistakes that can affect product quality.

Increased Production Efficiency: VTC50 CNC Vertical Lathe improves production efficiency. It is equipped with a powerful spindle motor and a high-speed machining capability. This allows the machine tool to cut and shape workpieces at high speeds, reducing the production time while ensuring that the final product is of high quality.

High Level of Automation: VTC50 CNC Vertical Lathe is highly automated. It's equipped with a range of advanced features such as a self-diagnostic system and automatic tool changers, which ensures that the machine tool can function optimally without human intervention.

Conclusion

In conclusion, VTC50 CNC Vertical Lathe is an essential machine tool in the manufacturing industry, with a wide range of applications due to its advanced features and performance. It's suitable for industries such as the automotive, aerospace, and energy, and its advantages range from precision performance to cost-effective production. Its user-friendly controls, high level of automation, and increased production efficiency make it an invaluable asset to any manufacturing facility.

Specification unit VTC50 Specification unit VTC50
X axis
X 轴行程
mm 500 Turret station
刀塔工位
  Four stations/eight stations
四工位/八公位
Z axis
Z轴行程
mm 0-500 X-axis rolling linear guide
X轴滚动直线导轨
  2 pieces, width 45mm
2 个,宽度 45mm
Maximum turning diameter
最大回转直径
mm Φ650 Z axis rolling linear guide
Z轴滚动直线导轨
  2 pieces, width 45mm
2 个,宽度 45mm
Maximum processing diameter
最大加工直径
mm Φ500 cooling motor
冷却电机
W 450+450
turning height
加工高度
mm 500 Pump output
泵输出
m³/h 4m³/h
Spindle speed
主轴转速
rpm 100-1000 Repeatability
重复精度
mm ±0.003
Spindle motor power
主轴电机功率
Kw 15 positioning accuracy
定位精度
mm ±0.006
Spindle diameter
主轴直径
mm Φ130 smallest positioning unit
最小定位单元
mm 0.001
Chuck model
卡盘类型
  hydraulic chuck
液压卡盘
Dimensions (approx.)
尺寸(约)
mm 2100*2500*2750mm
diameter
直径
inch 15″ Gross weight (approx.)
重量(约)
kg 5500
