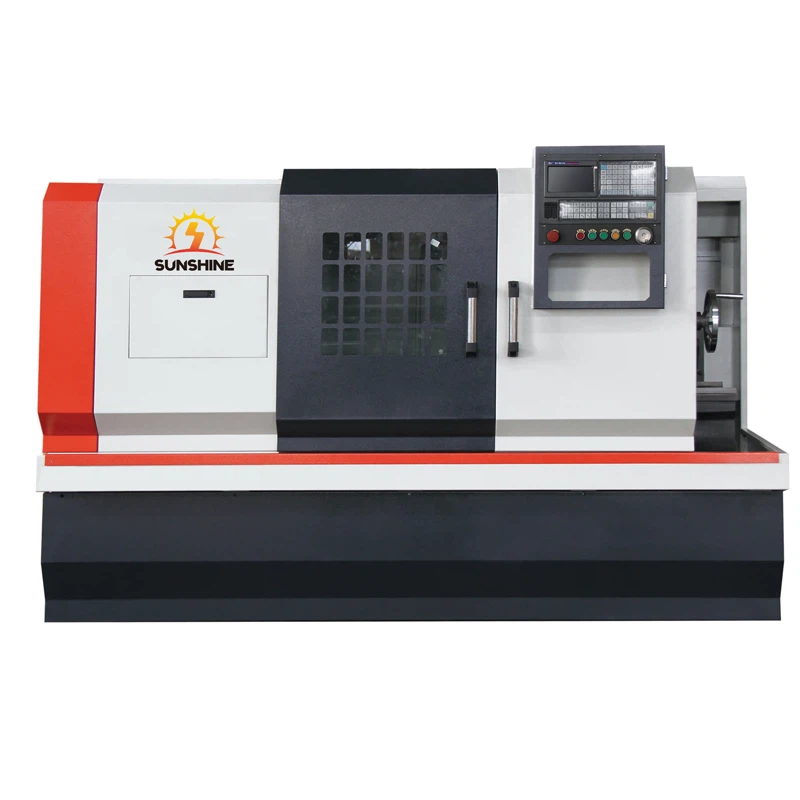

Precision CNC inclined lathe
Our Precision CNC Inclined Lathe is a high-performance machining solution engineered for ultra-precise turning, drilling and threading of metal components. Boasting a 45° integral cast slant bed structure and advanced CNC control system, it delivers exceptional rigidity and positioning accuracy (±0.008mm), perfectly suited for high-volume, high-precision production in aerospace, automotive and medical device manufacturing. Its gravity-assisted chip removal design eliminates material buildup, ensuring continuous and efficient machining with minimal downtime.
Technical Parameters
| Model | TCK50 | TCK50P | TCK50D |
| Maximum turning diameter of bed (mm) | 500 | 500 | 500 |
| Maximum cutting length (mm) | 500 | 500 | 500 |
| Maximum cutting diameter (mm) | 360 | 500 | 180 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 |
| Spindle hole diameter (mm) | 65 | 65 | 65 |
| Spindle speed range | 50～4500/177 | 50～4500/177 | 50～4500 |
| X-axis travel (mm) | 200 | 280 | 200 |
| Z-axis travel (mm) | 550 | 550 | 550 |
| Tailstock travel (mm) | 450 | 450 | 450 |
| Spindle speed series (r/min) | - | - | Infinitely variable transmission |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 |
| Machine weight (Kg) | 3600 | 3600 | 3800 |
| Model | TCK50G | TCK56-500 | TCK56-1000 | TCK63-1500 |
| Maximum turning diameter of bed (mm) | 500 | 560 | 560 | 720 |
| Maximum cutting length (mm) | 500 | 500 | 1000 | 1500 |
| Maximum cutting diameter (mm) | 360 | 350 | 350 | 620 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 | A2-8 |
| Spindle hole diameter (mm) | 65 | 65 | 65 | 80 |
| Spindle speed range | 50～4500/143 | 50～4500/177 | 50～4500/177 | 50～3500/145 |
| X-axis travel (mm) | 200 | 200 | 200 | 420 |
| Z-axis travel (mm) | 550 | 560 | 1050 | 1550 |
| Tailstock travel (mm) | 450 | 450 | 900 | 1650 |
| Spindle speed series (r/min) | - | - | - | - |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 | 12/16 |
| Machine weight (Kg) | 3600 | 3600 | 4500 | 5000 |
Product Advantages
High structural rigidity from one-piece cast iron bed reduces vibration and ensures stable precision during heavy cutting.
Gravity-driven chip evacuation and coolant circulation extend tool life and lower thermal deformation of workpieces.
Multi-axis linkage and automatic tool changing enable one-clamping multi-process machining, boosting production efficiency by 30%+.
Energy-efficient servo motor and optimized transmission system cut power consumption while maintaining high spindle torque.
Process Technology
Adopts high-precision pre-tensioned ball screws and linear guide rails for smooth feed movement and repeat positioning accuracy of ±0.005mm. Equipped with a professional CNC control system, it supports complex program editing and real-time machining monitoring. The high-torque spindle with wide speed range adapts to machining of various materials like steel, aluminum alloy and titanium alloy, achieving superior surface finish.
Application areas
Packaging & Transportation
FAQ
Q: What's the bed inclination angle of this lathe?
A: It's a 45° inclined bed, the optimal angle for rigidity and chip removal.
Q: Can it process complex curved surface components?
A: Yes, it supports multi-axis linkage for 3D contour machining of complex parts.
Q: How to maintain the lathe for long-term precision?
A: Regularly clean the guide rails, lubricate moving parts and calibrate the spindle monthly.
Q: Does it support automatic production line integration?
A: Absolutely, it's compatible with robotic arms and bar feeders for unmanned production.
Q: What's the maximum turning diameter and length?
A: Max turning diameter is 680mm, max machining length is 1300mm (customizable).
Q: What materials is this lathe suitable for machining?
A: It's ideal for steel, aluminum alloy, titanium alloy and other metal materials.
