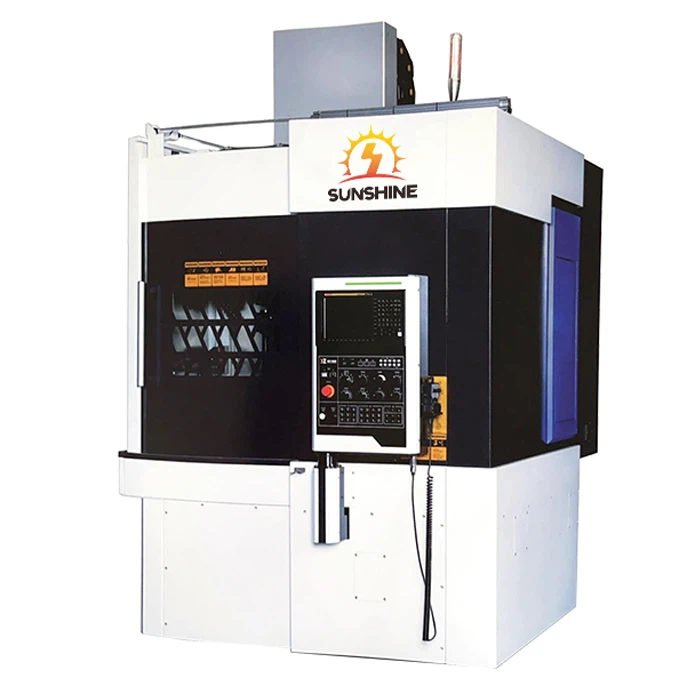

High Precision Machining CNC Machine Tools
CNC machining machine tool is a kind of high-precision and high-efficiency automatic machine tool, which is widely used in large and medium batch production automation of machinery manufacturing industry and other industries. It has various compensation functions such as linear interpolation and arc interpolation, and has played a good economic effect in mass production of complex parts.
The high precision and high efficiency of CNC machine tools make them an indispensable and important equipment in modern manufacturing industry. By using a control system to control the movement of individual components, it can achieve very precise machining, thus meeting the requirements of precision manufacturing. Compared with traditional manual operation, CNC machine tools can provide more accurate and stable machining results.
In addition to high precision and high efficiency, CNC machine tools also have a wide range of processing properties, can adapt to a variety of different types of workpiece processing needs, and can meet the requirements of different industries.
In the mass production of complex parts, CNC machining machines have played a great advantage. With pre-programming, the processing process can be automated, reducing the need for manual operation, and tasks can be completed efficiently. This automated production method not only improves production efficiency, but also greatly reduces the risk of manual errors and improves product quality.
CNC machine tools also have good spindle rotation accuracy and strong cutting ability. The rotation accuracy of the spindle directly affects the machining accuracy, and the CNC machining machine tool can provide very accurate spindle control, thus ensuring the accuracy of the machining results. At the same time, it also provides powerful cutting capabilities, which can be used for cutting a variety of shapes and materials.
| Model | TCK50 | TCK50P | TCK50D |
| Maximum turning diameter of bed (mm) | 500 | 500 | 500 |
| Maximum cutting length (mm) | 500 | 500 | 500 |
| Maximum cutting diameter (mm) | 360 | 500 | 180 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 |
| Spindle hole diameter (mm) | 65 | 65 | 65 |
| Spindle speed range | 50～4500/177 | 50～4500/177 | 50～4500 |
| X-axis travel (mm) | 200 | 280 | 200 |
| Z-axis travel (mm) | 550 | 550 | 550 |
| Tailstock travel (mm) | 450 | 450 | 450 |
| Spindle speed series (r/min) | — | — | Infinitely variable transmission |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 |
| Machine weight (Kg) | 3600 | 3600 | 3800 |
| Model | TCK50G | TCK56-500 | TCK56-1000 | TCK63-1500 |
| Maximum turning diameter of bed (mm) | 500 | 560 | 560 | 720 |
| Maximum cutting length (mm) | 500 | 500 | 1000 | 1500 |
| Maximum cutting diameter (mm) | 360 | 350 | 350 | 620 |
| Spindle end form and code | A2-6 | A2-6 | A2-6 | A2-8 |
| Spindle hole diameter (mm) | 65 | 65 | 65 | 80 |
| Spindle speed range | 50～4500/143 | 50～4500/177 | 50～4500/177 | 50～3500/145 |
| X-axis travel (mm) | 200 | 200 | 200 | 420 |
| Z-axis travel (mm) | 550 | 560 | 1050 | 1550 |
| Tailstock travel (mm) | 450 | 450 | 900 | 1650 |
| Spindle speed series (r/min) | — | — | — | — |
| X/Z rapid movement (m/min) | 30/30 | 30/30 | 30/30 | 12/16 |
| Machine weight (Kg) | 3600 | 3600 | 4500 | 5000 |
