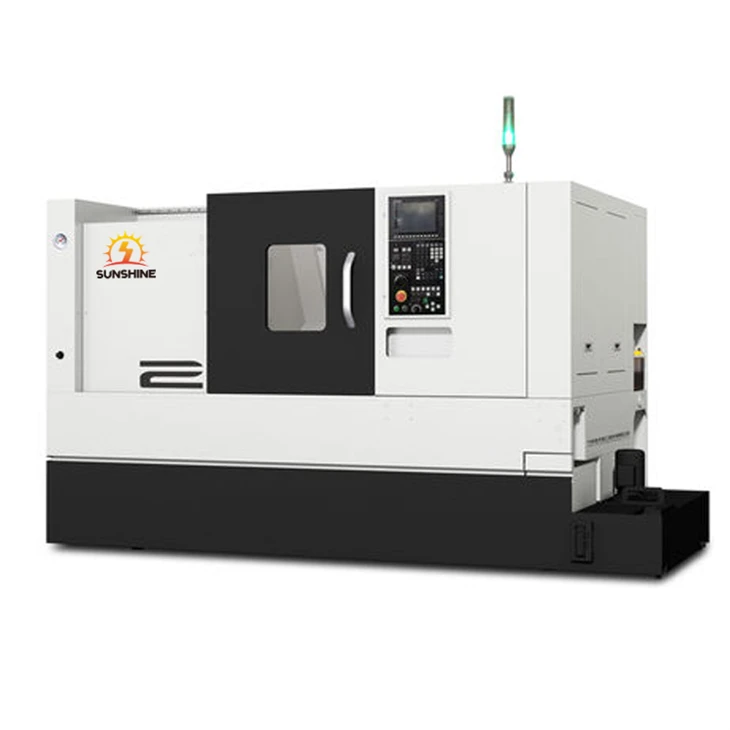

CNC inclined lathe for disc processing

The CNC inclined lathe for disc processing is a CNC machine tool specially used for processing disc parts. It combines the advantages of CNC technology and inclined bed design, and provides a high-precision and high-efficiency solution for the processing of disc parts.

As the name suggests, the CNC inclined lathe for disc processing is an application form of CNC inclined lathe, which is particularly suitable for processing various disc parts. This type of machine tool adopts an inclined bed design, which has better rigidity and cutting performance, and can ensure high precision and stability when processing disc parts. At the same time, the application of the CNC system enables the machine tool to automatically complete the processing tasks according to the preset program, improving the processing efficiency and automation.

The structural design of the CNC inclined lathe for disc processing usually includes the following aspects:

1. Inclined bed design: The bed adopts an inclined design, which is conducive to improving the overall rigidity and stability of the machine tool. This design helps to reduce vibration and deformation during cutting and improve processing accuracy.
2. High-precision guide rails: The machine tool guide rails adopt high-precision rolling guide rails or hydrostatic guide rails to ensure the smooth operation of the machine tool during processing. The accuracy and stability of the guide rails have an important impact on the processing quality.
3. Spindle and transmission system: The spindle is a key component of the machine tool. It usually adopts a high-rigidity spindle unit and is equipped with high-precision bearings and transmission devices. The transmission system achieves precise control of the spindle through a servo motor and a reduction device.
4. Turret and tool: The turret adopts a multi-station design and can automatically or manually change the tool. The selection and installation of the tool must be accurately matched according to the processing requirements to ensure the processing quality and efficiency.

The CNC inclined car for disc processing has the following main functions and applications:

1. High-precision processing: The various motion parameters of the machine tool are accurately controlled by the CNC system to achieve high-precision processing of disc parts. This includes precise control of various processing surfaces such as outer circle, end face, inner hole, etc.
2. High-efficiency processing: The machine tool has fast feed and high-speed cutting capabilities, which can significantly improve processing efficiency. At the same time, the application of automated tool changers and chip removal devices also reduces manual intervention and downtime.
3. Wide processing range: It is suitable for the processing of various disc parts, including disc parts in round, square, polygonal and other shapes. At the same time, the rigidity and cutting performance of the machine tool also enable it to cope with the processing needs of complex shapes and materials.
4. High degree of automation: Equipped with advanced CNC systems and automation devices, it can realize the automation and intelligence of the processing process. This includes the application of functions such as automatic programming, automatic tool change, and automatic chip removal.

In summary, the disc processing CNC inclined lathe is one of the important equipment for processing disc parts, with the advantages of high precision, high efficiency, wide processing range and high automation.
