cnc vtl lathe

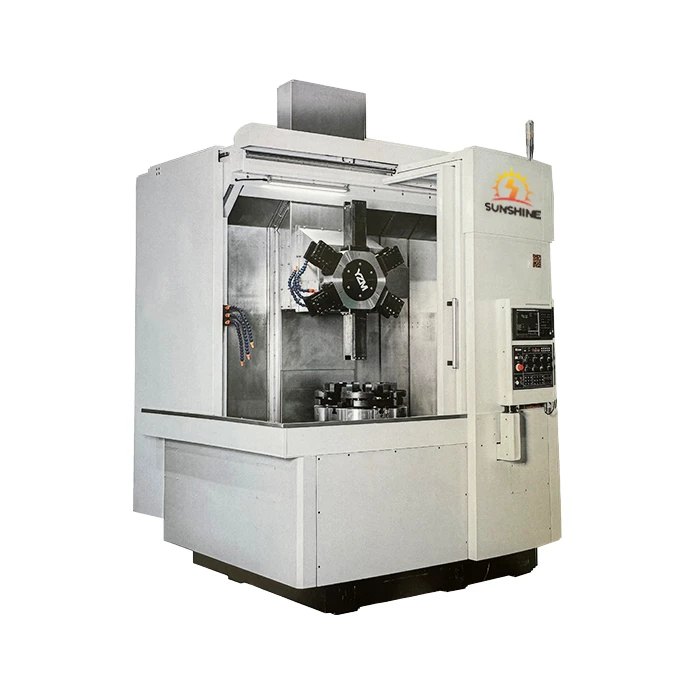

Maximum swing diameter：Φ600mm Maximum turning diameter：Φ400mm Maximum turning height：500mm This machine is equipped as standard with a GSK CNC system, an 8-station horizontal turret, and a 12-inch hydraulic chuck, and supports customized tooling and fixtures based on technical drawings.

Send Inquiry

Product Introduction

This CNC VTL lathe features a maximum swing diameter of 600 mm and a maximum turning diameter of 400 mm, making it suitable for machining small- to medium-sized disc, sleeve, and ring-shaped parts. It is well suited for both mass production and the custom machining requirements of small and medium-sized workshops.

Specification	unit	VTC40	Specification	unit	VTC40
X axis	mm	400	Turret station		Eight stations
Z axis	mm	500	X-axis rolling linear guide		2 pieces, width 35mm
Maximum swing diameter	mm	Φ600	Z axis rolling linear guide		2 pieces, width 45mm
Maximum turning diameter	mm	Φ400	cooling motor	W	450+450
Maximum turning height	mm	500	Pump output	m³/h	4m³/h
Spindle speed	rpm	100-1000	Repeatability	mm	±0.003
Spindle motor power	Kw	15	positioning accuracy	mm	±0.006
Spindle diameter	mm	Φ130	smallest positioning unit	mm	0.001
Chuck model		hydraulic chuck	Dimensions (approx.)	mm	200019603500mm
diameter	inch	12″	Gross weight (approx.)	kg	4500

01.

The spindle speed ranges from 100 to 1000 rpm, ensuring consistent part quality.

02.

The compact vertical design saves workshop space and facilitates easier workpiece loading and unloading.

03.

A wear-resistant cast iron bed provides a durable machine structure and reduces vibration during heavy cutting.

04.

The CNC system can be configured to match different operating habits, enabling easy programming and operation.

Performance Advantages

This CNC VTL lathe features linear roller guideways-available in 35 mm and 45 mm specifications-on both the X and Z axes. The roller-type guideways provide a large contact area and high load-bearing capacity, ensuring smooth and stable feed movement.

The machine is built with a solid, one-piece cast iron bed. After casting, the structure undergoes both natural and artificial aging processes to fully relieve internal stresses. The heavy-duty bed design ensures stability during heavy cutting operations.

The spindle is equipped with a 12-inch hydraulic chuck that delivers high clamping force, ensuring the workpiece remains secure without loosening or slipping. Custom fixtures can be designed according to specific workpieces, supporting the clamping and machining of various disc-shaped, wheel-type, and large rotary components.

Key lubrication points-including guideways, ball screws, and bearings-are supplied by a fully automatic centralized lubrication system. The system automatically delivers lubricant at preset intervals and quantities, enabling continuous and maintenance-free lubrication.

Application Fields

The CNC VTL lathe is widely used across metal processing industries, including automotive component manufacturing (wheel hubs and flanges), hardware machinery (precision sleeves), bearing production (ring-shaped parts), and aerospace and electrical equipment industries for precision component machining. It is suitable for machining carbon steel, stainless steel, aluminum, and other common metals.

Packaging & Shipping

CNC machine tool products are first wrapped in plastic film for moisture protection and then secured on reinforced wooden pallets to prevent impact damage during transit. All fragile components are protected with custom-fit foam padding. We offer worldwide sea and air shipping, with professional loading and securing to ensure the equipment arrives at its destination in perfect condition.

Free professional online guidance for installation and commissioning provided by engineers.

Free operation and maintenance training is provided for your workers.

Original spare parts supplied at factory-direct prices for long-term cooperation.

Customized CNC system and accessory configuration according to your processing needs
