Name: China vertical turret lathe machine Manufacturers Suppliers Factory - Customized Service
Brand: SUNSHINE
SKU: 216368185

X-axis travel: 425 mm； Z-axis travel: 130–730 mm； Maximum swing diameter: Φ650 mm； Maximum machining diameter: Φ600 mm； Cutting height: 600 mm

Send Inquiry

Product Introduction

This vertical turret lathe machine is designed for machining rotary components such as discs, flanges, wheel hubs, gear blanks, and valve bodies. Its vertical structure provides stable workpiece clamping, especially for large and heavy components. The machine is widely used in industries including construction machinery, automotive parts, wind power equipment, metallurgical piping, and general machinery manufacturing. It supports various turning operations, including external cylindrical turning, internal boring, end-face machining, grooving, and contouring, making it suitable for both heavy-duty roughing and high-precision finishing.

Key products include CNC vertical lathes, turn-mill centers, machining centers, slant-bed CNC lathes, and other related machine tool series.

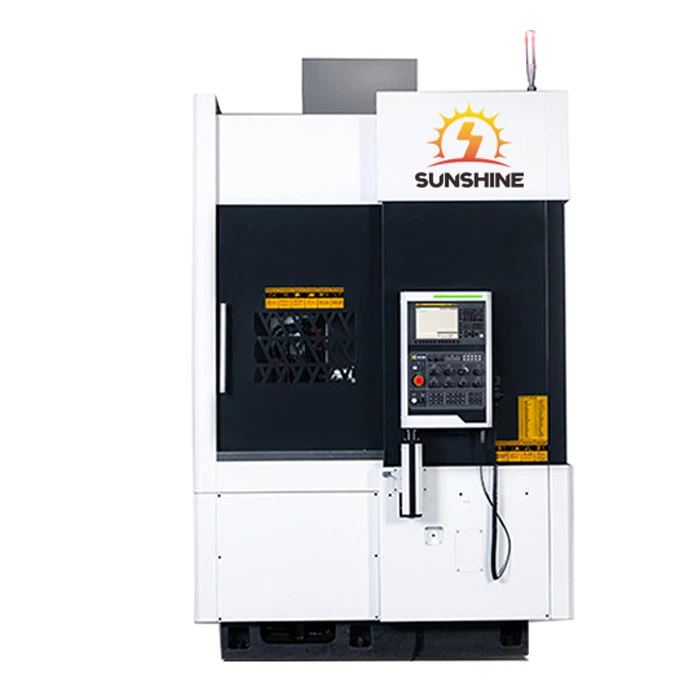

VTC60
TRAVEL
x-axis	425mm
z-axis	90-690mm
Capacity
Max.swing dia.	Φ650mm
Max.turning dia.	φ600mm
Maximum turning height	600mm
SPINDLE
Spindle speed	100～1000rpm
Spindle motor power	18.5Kw
Spindle type	Direct connection
torsional	280N.M
Spindle bearing grade	German FAG
Front bearings	NN3032K
Dimension-LD/OD/WIDTH	φ160×φ240×60
Rear bearings	NN3026K
Dimension-LD/OD/WIDTH	φ130×φ200×52
Dimension-Outside	φ160mm
Speed-down	1:2
Chuck &Automatic tool changer
Chuck type	Three-jaw hydraulic chuck
Dia.Chuck	18-inch
Work Station	Horizontal 8-station
SLIDE WAY
x-axis slide way	2 pieces, 45mm wide
z-axis slide way	2 pieces, 55mm wide

Product Performance Characteristics

1. Spindle Speed:The spindle offers a speed range of 100–1,000 rpm, supporting high-speed machining for various materials.

2. Chuck Size:The machine tool is equipped with an 18-inch hydraulic chuck that allows the clamping force to be adjusted according to the workpiece thickness, material, and shape. For deformation-sensitive parts, such as thin-walled aluminum flanges or brake discs, the chuck provides low-pressure clamping to reduce distortion. For heavy cast steel or high-strength alloy blanks, it delivers higher clamping force to ensure secure holding during heavy-duty machining.

3. Axis Travel:The X-axis travel reaches 425 mm, while the Z-axis travel ranges from 90 to 690 mm, providing flexibility for different machining applications.

4. Tooling Configuration:The vertical turret lathe machine is equipped with a horizontal 8-station turret, allowing multiple tools to be used during machining. Depending on the process requirements, it can also be configured with options such as vertical tool holders, center tool bars, or driven tool turrets.

5. Control System:The machine is equipped with a Fanuc CNC system for convenient programming and operation. Optional CNC systems, including KND, HNC, GSK, Siemens, and Mitsubishi, are also available.

Configuration Options

Standard configuration	Optional configurations
GSK CNC control system	KND/Siemens/Fanuc CNC system
18-inch 3-jaw hydraulic chuck	12"/15"/18"/21"/23" hydraulic or pneumatic chuck
Horizontal 8-station turret	4/8/10/12-station horizontal turret or vertical tool post
Manual chip collection cart	Automatic chip conveyor
Work light	Electrical cabinet air conditioner
Fully enclosed machine guarding (suitable for wet machining)	Specialized tooling and fixtures

Product Advantages

Φ160 mm spindle unit, ensuring reliable performance and machining accuracy

18.5 kW spindle motor, suitable for medium- and heavy-duty cutting applications

4-station or 8-station turret, supporting efficient multi-process machining

18-inch hydraulic chuck, providing fast and reliable workpiece clamping

Suitable for automated production lines and high-volume component machining

±0.006 mm positioning accuracy, meeting the requirements of precision machining

Applicable Workpieces

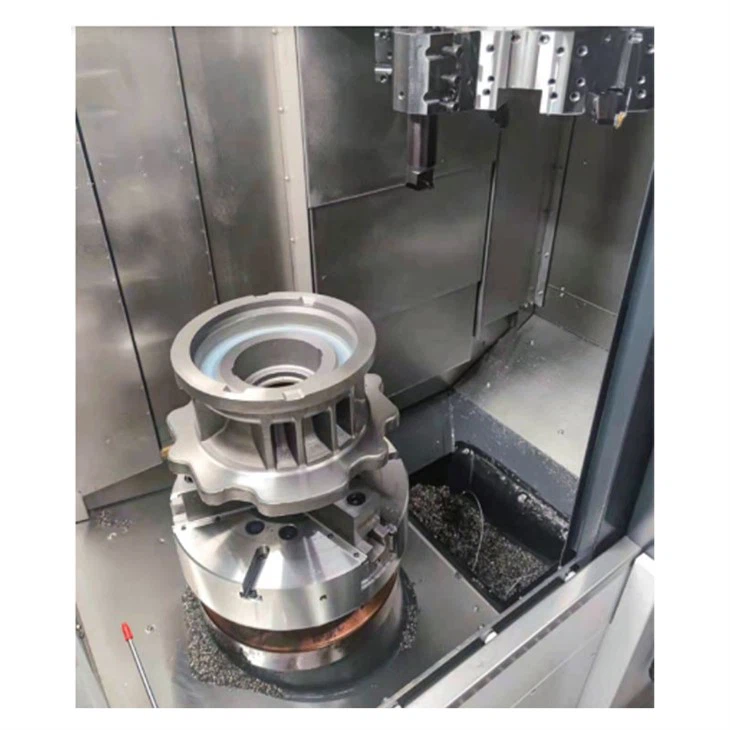

Suitable for machining various disc-shaped rotary components, including wheel hubs, flanges, brake discs, gear blanks, pump bodies, valve flanges, bearing housings, and construction machinery wheel components. The machine is widely used in industries such as automotive manufacturing, general machinery, mining equipment, wind power equipment, and forged component production.

Vertical Turning Lathe with Program Control

About Sunshine Machinery

Shandong Sunshine Machinery Co., Ltd. specializes in the research, development, manufacturing, and export of CNC machine tools. The company's main products include CNC vertical lathes, CNC lathes, machining centers, and hydraulic presses, which are widely used in industries such as automotive components, construction machinery, valve manufacturing, energy equipment, and general machinery.
Before shipment, each CNC vertical lathe undergoes a strict inspection process, including assembly and commissioning, no-load operation testing, and machining accuracy verification, ensuring that the equipment is ready for production after installation at the customer's facility.

✓ CE certification documents
✓ Hague Apostille-certified documents
✓ Certificate of Origin
✓ Commercial invoice and packing list
✓ Export customs declaration documents
✓ Machine tool accuracy inspection report
✓ Original factory inspection report

FAQ

Q: What types of workpieces can this CNC vertical lathe machine? Can it process thin-walled flanges?

A: This machine is mainly designed for machining disc-shaped rotary components, including brake discs, flanges, wheel hubs, gear blanks, valve seats, and bearing discs.

Q: Does the maximum machining diameter of Φ600 mm mean that any Φ600 mm workpiece can be machined directly?

A: Φ600 mm is the maximum rated machining diameter. The actual machining capability depends on factors such as workpiece clamping method, tool interference, and workpiece height. For parts with external lugs or irregular profiles, interference between the tool turret and the workpiece may occur even when the outer diameter is within the specified range. You can send us your workpiece drawings, and we will provide a free machining feasibility evaluation.

Q: How should I choose between a 4-station and an 8-station turret? Can the turret be upgraded later?

A: If your machining operations mainly involve simple processes such as facing and outer diameter turning, the 4-station turret is a more economical option. If the workpiece requires multiple operations, such as internal and external turning, grooving, and contour machining, the 8-station turret is recommended.

Q: The machine is equipped with an 18-inch hydraulic chuck as standard. Can it be replaced with another size?

A: Yes. The chuck can be customized according to your workpiece requirements. The chuck size and jaw type can be confirmed before purchase. If a replacement is needed later, we can provide compatible chuck upgrade solutions and spare parts.

Q: Does a vertical lathe require frequent parameter adjustments when machining different materials?

A: The CNC system allows cutting parameters for different materials, such as carbon steel, cast iron, aluminum alloy, and alloy steel, to be stored in advance. When switching between products, operators can simply call up the corresponding program, reducing the time required for repeated trial cuts and parameter adjustments. We can also assist with setting up basic process parameter templates before shipment.

Q: Are you the original manufacturer or a trading company? Can we visit your factory to inspect the machine in person?

A: We have our own manufacturing and assembly facilities and complete the machine assembly in-house. We are the original manufacturer and do not act as a reseller. Customers are welcome to visit our factory with workpiece drawings and raw materials for trial machining and inspection. During the visit, you can observe the machine assembly, commissioning, accuracy testing, and cutting performance to better understand our manufacturing quality.
