cnc vertical milling center

Name: China cnc vertical milling center Manufacturers Suppliers Factory
Brand: SUNSHINE
SKU: 223478945

Worktable dimensions：1200x600mm Table maximum load：1000kg X/Y/Z axis travel：1100x600x600mm The CNC vertical milling center is an integrated machine designed for drilling, tapping, and milling operations. It performs both basic drilling and tapping tasks as well as the machining of complex parts.

Send Inquiry

Product Introduction

Face Milling and Contour Milling
Drilling and Tapping
Precision Boring
Complex Surface Machining

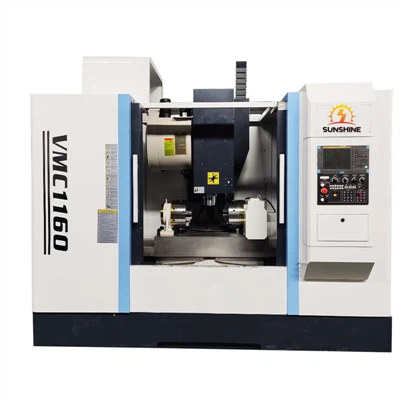

This CNC vertical machining center is a 3-axis CNC machine with a vertical structure. It integrates multiple machining functions such as milling, drilling, tapping, and boring into a single unit, making it suitable for multi-process machining applications. It is capable of complex machining tasks and supports various production modes, from single-part prototyping and small to medium batch production to large-scale mass manufacturing.

Equipped with an automatic tool changer, it performs milling, drilling, boring, reaming, tapping, cavity machining, and contour machining on metal and certain non-metal workpieces.

Contact now

■ The spindle utilizes a belt-driven system with a maximum speed of 8,000 rpm.

■ A 24-tool umbrella-type automatic tool changer (ATC) is provided as standard to support a wide range of machining requirements.

■ The spindle head assembly features a heavy-duty box-type structure with internal reinforcing ribs, providing excellent rigidity.

■ A hydraulic tool-release mechanism ensures even force distribution on the spindle during tool changes, helping extend bearing service life.

■ The ball screws are protected by telescopic covers that prevent metal chips and dust from entering the system, reducing wear on transmission components.

■ All three axes are equipped with Hiwin (Taiwan) 45-series linear guideways. Combined with precision nut preloading and end-tensioning systems, they ensure minimal backlash and thermal deformation during long-term operation.

■ The machine features a BT40 spindle taper with stepless speed control throughout the entire operating range. The spindle is precision-ground to ensure accurate tool-holder fit and secure clamping, minimizing radial runout during machining and improving both surface finish and dimensional accuracy. A Coolant-Through-Spindle (CTS) system is available as an optional configuration to meet specific machining requirements.

Specifications	unit	VMC1160
Worktable dimensions	mm	1200x600
Table maximum load	kg	1000
X/Y/Z axis travel	mm	1100x600x600
X/Y/Z Max. feed speed	mm/min	10000
X/Y/Z Max. Rapid traverse	m/min	32/32/30
spindle speed	r/min	8000
spindle taper	type	BT40
Spindle motor power	kW	11/15
X/Y/Z axis servo motor power	kW	4/4/5
X/Y/Z motor connection		Direct
T slot	mm	5-18x100
Repeat positioning accuracy	mm	±0.005
Tool magazine		disc type
Tool capacity		24T
Maximum tool weight	kg	8
Max. tool length	mm	300

Contact us to choose the right CNC machine configuration for your production needs.

4-axis/5-axis rotary table system
Through-spindle coolant system
Automatic chip conveyor
Tool measuring system
Workpiece probing system

Oil mist collector
Electrical cabinet air conditioning system
High-speed spindle upgrade
CNC systems: FANUC, SIEMENS, Mitsubishi, HNC
Automation unit with gantry-type robot

Bed structure

The machine structure is built using resin sand castings, all of which are thoroughly annealed.

◆ Improves stability during heavy-duty cutting
◆ Reduces vibration impact on machining accuracy
◆ Extends overall machine service life

Lead Screws and Guide Rails

All three axes are equipped with heavy-duty linear roller guides and precision-ground ball screws.
◆ Enhanced motion stability
◆ Ensured long-term repeatability
◆ Reduced mechanical wear

BT40 Spindle System

Equipped with P4-grade spindle bearings, it ensures stable machining of steel, aluminum, and various alloy materials.
◆ Excellent cutting stability
◆ Capable of processing a wide range of materials
◆ Improved surface finish quality

Disc type tool magazine

Equipped with a 24-station automatic tool changer to support continuous multi-process machining.
Reduced non-machining time
Improved production efficiency
Stable machining cycle times

What kind of products are suitable for machining on a CNC vertical milling center?

--Applicable Industries

Automotive component machining

Automation equipment components

Mold and die manufacturing

Machinery and equipment manufacturing

Construction machinery parts machining

General metalworking workshops

--Typical Machined Parts

Plate-type parts

Box-type parts

Disc and flange parts

Structural parts

Medium-sized mechanical parts
